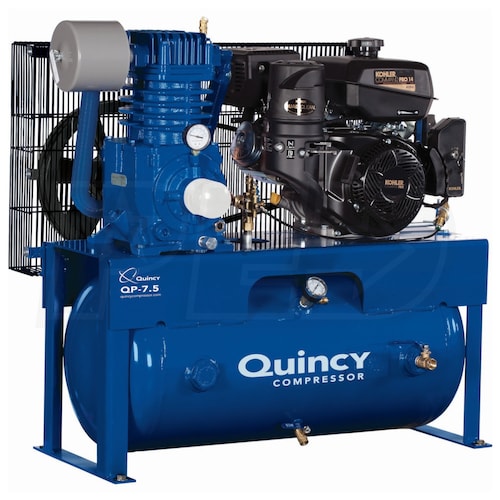

Quincy QP 14-HP 30-Gallon Pressure Lubricated Two-Stage Truck Mount Air Compressor w/ Electric Start Kohler Engine

Model:

G514K30HCE

Write A Review
$3,999.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 12-16 Weeks

Quincy QP 14-HP 30-Gallon Pressure Lubricated Two-Stage Truck Mount Air Compressor w/ Electric Start Kohler Engine
Quincy QP 14-HP 30-Gallon Pressure Lubricated Two-Stage Truck Mount Air Compressor w/ Electric Start Kohler Engine
Model: G514K30HCE
$3,999.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Style

Truck Mount

Engine Brand

Kohler

CFM

23.6

Tank Size

30

  • Fully Pressure Lubricated 2-Stage Compressor
  • Lubricated system allows smooth and continuous operation
  • Up to 15% longer life span than splash lubricated compressors

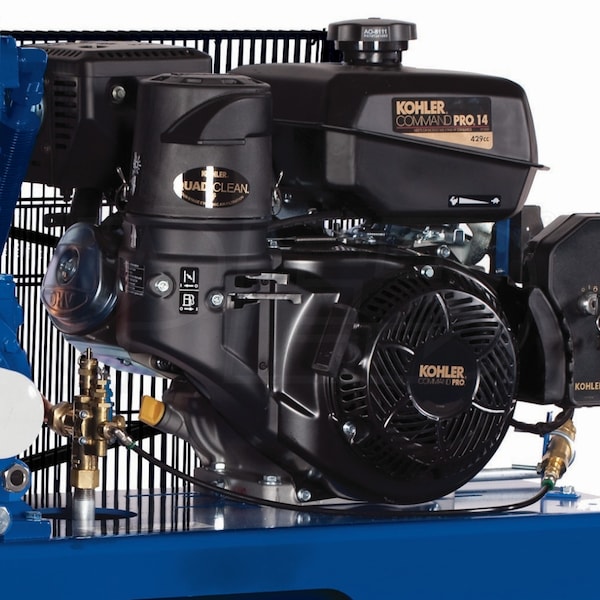

  • 14-HP Kohler Command Pro Engine w/ Electric Start
  • No pulling a rope to start- just push a button
  • Perfect for service truck applications (battery & cable not included)

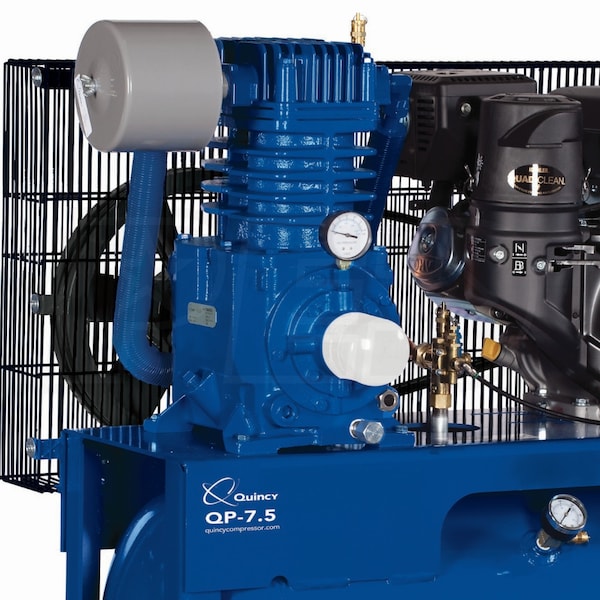

  • High-Performance Cast Iron QP-7.5 Belt Drive Pump
  • Industry-leading 50,000+ hour pump life
  • Aluminum head for strength and optimum heat dissipation
  • Graphite cylinder and head gasket provide positive sealing integrity
  • Gerotor Positive Displacement Oil Pump
  • Provides pressure lube to crankshaft, bearings and rods
  • Oil flowing to all critical surfaces means less wear on the components
  • High-Efficiency Fin & Tube Intercooler
  • Maintains rigid tolerances for high efficiency
  • Reduces interstage temperature for max performance and durability
  • Electronically Balanced Fan-Type Cast Iron Flywheel
  • Delivers powerful cooling to intercooler, cylinder and heads
  • Spin-on filter lengthens the life and improves reliability
  • Stainless Steel Reed Valves With Valve Bumpers
  • Maximum strength and volumetric efficiency
  • Corrosion-resistant with controlled lift for better efficiency
  • One Year Factory Warranty
  • Extends to 3-years with "No Bull" warranty available from Quincy
  • Must include EWK-6 Maintenance Kit at time of purchase
  • Must register the unit at www.quincycompressor.com
  • Quincy Part #: 2020019201 - Quincy Model #: G314K30HCE
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

G514K30HCE
specs product image PID-104186
General Information
Product Category
Air Compressor - Portable
Engine
HP
14
Auto Idle
No
Engine Brand
Kohler
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
No
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
23.6
CFM Rated @
175 PSI
Pump Material
Cast Iron w/ Aluminum Head
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Duty Cycle
100%
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
30 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
501 Pounds
Certification
ASME, UL, CSA,
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
42 Inches
Product Width
21 Inches
Product Height
40 Inches
Power Type
Gas
Additional Model Numbers

G314K30HCE, G514K30HCE
