Red Lion 12 GPM 1/2 HP Deep Well Submersible Pump (3-Wire 230V) w/ Control Box

Name: Red Lion 12 GPM 1/2 HP Deep Well Submersible Pump (3-Wire 230V) w/ Control Box
Brand: Red Lion
SKU: 7506
Price: 430.00 USD
Availability: InStock
Rating: 4.80 (88 reviews)

Model:

14942405

Write A Review

$430.00

Free Shipping

In-Stock

Ships Friday, Nov 22nd

Shipping to60601

Red Lion 12 GPM 1/2 HP Deep Well Submersible Pump (3-Wire 230V) w/ Control Box

Model: 14942405

$430.00

Accessories

Features

Specifications

Reviews

Product Q&A

How-To Articles

Manuals

Expert Recommended Accessories Selected by Jim, our Expert

Required Accessories 9

These accessories are required to properly setup/install this product.

Optional Accessories 10

Features

Inlet Size

N/A

Style

Deep Well

GPM

12 Gallons

4" Submersible Deep Well Pump
Ideal for use with 4" I.D. or larger wells
Powered By Industry Standard 3-Wire 230V Motor
Proven superior quality & performance ensuring quiet operation
Hex Rubber Bearing w/ Extra-Large Surface
Provides shaft stability and multiple flow channels
Keeps small particles such as sand away from bearing surfaces
Built-In Check Valve
Prevents back-flow and ensures system pressure
Built-In Suction Screen
Helps to prevent debris from clogging impellers
1-1/4" NPT Thermoplastic discharge head
Provides full-flow performance without the risk of corrosion
Includes Red Lion Control Box
Eliminates confusion for control box selection

Specifications

14942405

General Information

Product Category

Water Pump

Motor

Voltage

240 Volt Single-Phase

Wire

3-Wire

Pump

Gallons Per Minute

12 Gallons

Outlet Diameter

1-1/4 Inch

Housing Material

Stainless Steel

Impeller Material

Plastic

Maximum PSI

Total Head Lift

200 Feet

Submersible

Yes

Engine

Continuous Operation

Yes

Horsepower

0.5 HP

Overview

Product Category

Water Pump

Weight

25 Pounds

Made in USA

Consumer Warranty

3 Years

UPC

010121141810

Additional Model Numbers

RL12G05-3W2V, 14942405

Reviews

(88)

Red Lion 14942405 Reviews & Ratings

Product Q&A

(9)

Product Questions Answered by Jim, the Water Pump Expert

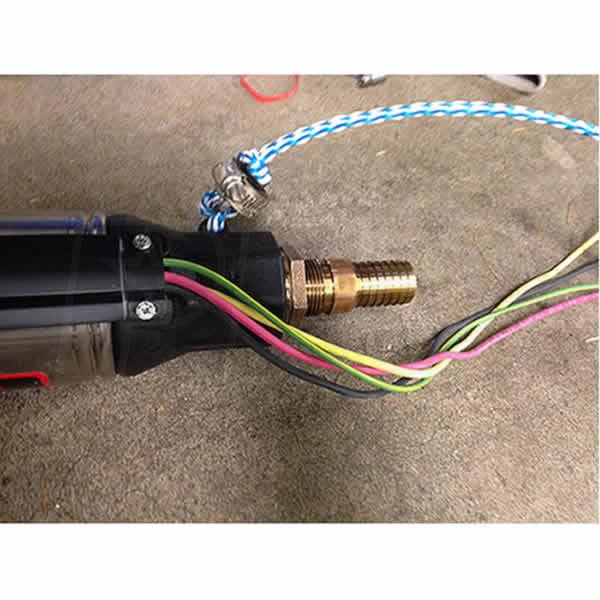

Does this pump have a rope tie-off to prevent losing it in the well?

David M.

from Arkansas

March 14, 2018

I have read that this pump utilizes a Franklin motor, is this true?

Ken K.

from Texas

May 10, 2017

In have 4 inch ID pvc well casing ..your product description says it will fit. What is the width of the pump?

Vince

from Indiana

June 16, 2016

I plan to replace a 30 yer old pump that is at 200 ft. and lower the new pump to 250 ft in a 400 ft deep well. Will I need to a check valve mid way up as well as at the well head?

Ken G

from California

July 27, 2015

what guage wire should be run to this pump if set at two hundred feet

Billy

from West Virginia

June 22, 2014

I am converting from a jet pump to a submersible pump. I am installing a new pressure tank and am ordering a RL 12G05-3W2V pump from you. What else will I need for my conversion? Wire, etc? The pump specs say the outlet is 1 1/4". Is the water line that connects to the fitting 1"?

Paul F

from Kansas

May 02, 2014

Answer

Thank you for your interest in Water Pumps Direct. You will need wire and a torque arrestor (you will need to purchase locally) and depending on the depth of the pump installation, you might need a check valve. A splice kit is included with the pump for a water tight splice to your wiring off the pump. You can also check the pump OWNERS MANUAL for additional installation information. The connection on the pump discharge is 1-1/4" however you can add a 1-1/4" to 1" reducer if you prefer as long as your pressure tank is relatively close to the well head.

Was this answer helpful?

Yes

what parts are involved with submersible pumps that can fail and breakdown or if it doesn't work you just have to replace the entire pump?

Sal

from New York

January 22, 2014

Answer

When it comes to 2-wire deep well submersible pumps, the pump starting controls are located inside the pump. Any of these components can fail and cause the pump to become inoperable. By installing a 3-wire pump, those components would be located inside a CONTROL BOX, making repairs much easier when failure of these components are the cause of your pump not operating. Of course if the pump has failed due to burnt motor windings or some other cause, would would still need to pull and replace the pump, but you would have a better understanding of the pump status when the pump starting components are above ground as opposed to 50-500 feet or more, below ground.

Was this answer helpful?

Yes

Can a pump saver and a float switch be used with thiscontrol box that comes with the pump. Thanks

Kevin

from Idaho

April 14, 2013

what is the purpose of the control box and can it be eliminated?

Armand

from Ohio

July 09, 2012

Answer

Three wire submersible motors require a control box. Control boxes contain a starting relay, starting capacitors and in some cases overload protectors. Two wire submersible motors have these components built into them and do not require a control box.

One benefit of using a three wire motor with a control box is that some of the components that are subject to failure are located above ground where you can get to them without pulling the pump.

Control boxes should never be mounted in direct sunlight or in locations that are extremely hot, this causes the capacitor life to be shortened and can cause nuisance overload trips. Do not mount the control box in a humid location such as a damp well pit since voltage breakdown and corrosion will accelerate component failure in this condition.

Control boxes are designed for vertical, upright mounting only. Any other position will affect the operation of voltage sensing relays in larger sizes and may result in water leakage.

Was this answer helpful?

Yes
