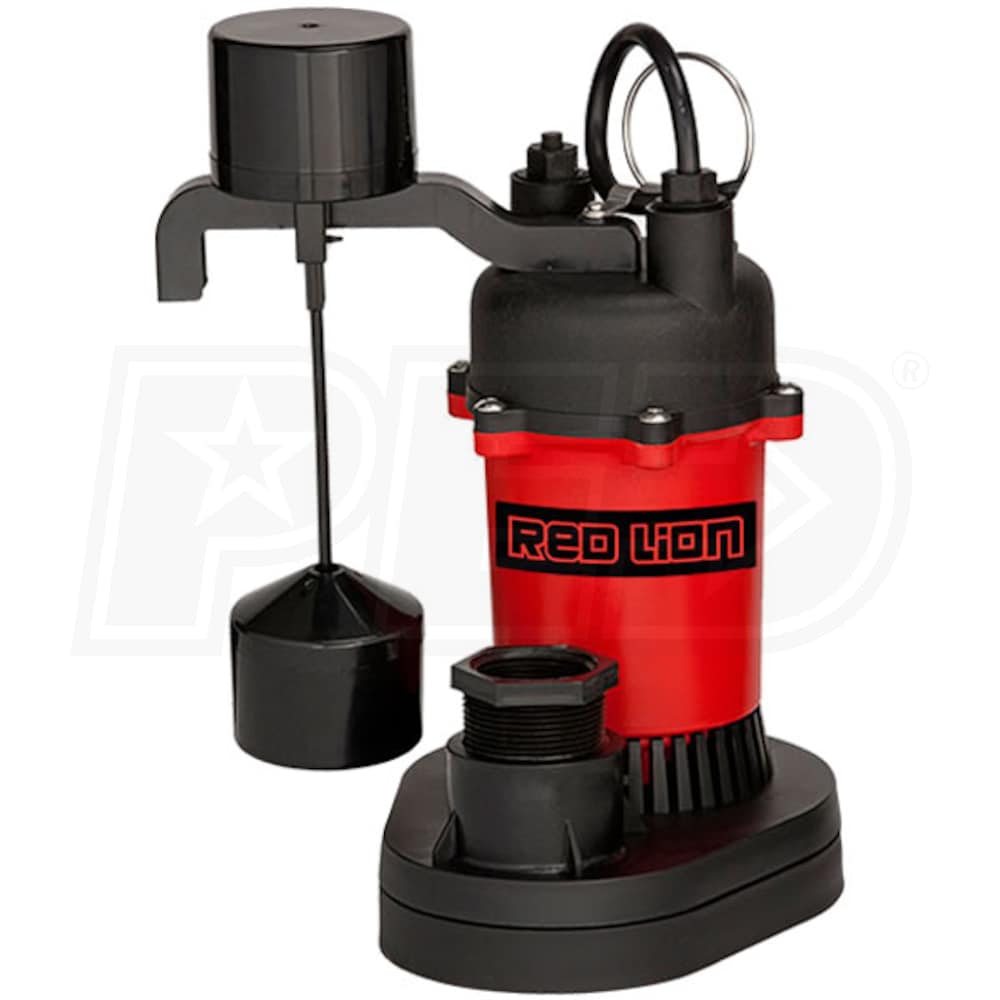

Red Lion RL-SP33V - 1/3 HP Thermoplastic Submersible Sump Pump w/ Vertical Float Switch
Model:
14942741
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Primary
GPH
3200 Gallons
Switch Type
Vertical
- Automatic Submersible Sump Pump
- Ideal for light water removal
- 1/3 HP PSC Motor
- Provides plenty of power to get the water moving
- Reinforced, Engineered Thermoplastic Construction
- Corrosion and rust-resistant
- Double Seal System
- Provides added protection to extend motor life
- Closed Vane Impeller Design
- Allows for superior water flow
- Piggyback Vertical Float Switch
- Reliable automatic operation for basins 11" diameter or greater
- Switch can be bypassed to run pump manually
- 1-1/2'' FNPT Discharge w/ 1-1/4'' FNPT Adapter
- Easily connects to your existing discharge line
- 8' Power Cord
- Ideal for residential sump applications
- 2-Year Limited Warranty
- *Note - Not Suitable For Pond Use
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
14942741
General Information
Product Category
Sump Pump
Base
Base Material
Thermoplastic
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
4.4
Thermal Protection
Yes
Power Cord Length
10 Feet
Starting Amps
6.3
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Float Type
Vertical Float

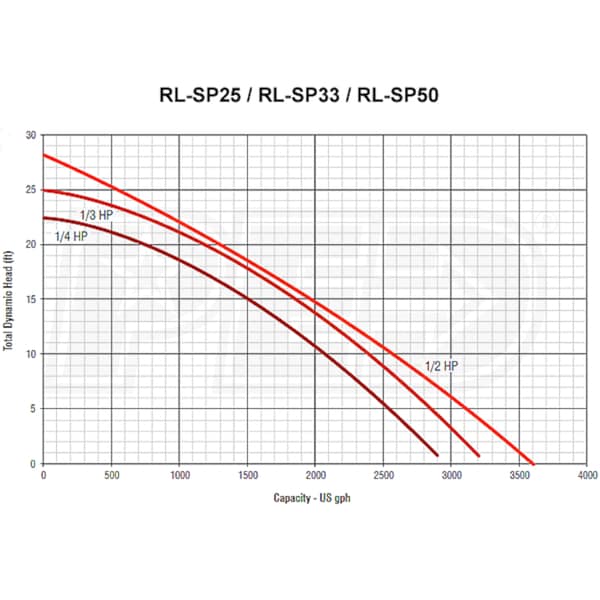

GPH @ 0 feet
3200
GPH @ 5 feet
2880
GPH @ 10 feet
2520
GPH @ 15 feet
1680
GPH @ 20 feet
1260
Discharge Port Size
1-1/4 Inch and 1-1/2 Inch
Check Valve Included
No
Float On
7.25
Float Off
2.75
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.33 HP
Overview
Product Category
Sump Pump
Weight
11 Pounds
Made in USA
No
Consumer Warranty
2 Years
UPC
010121141643
Additional Model Numbers
RL-SP33V, 14942741
