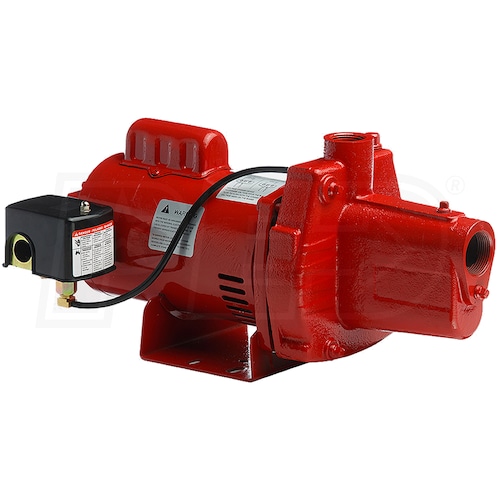

Red Lion 23 GPM 1 HP Cast Iron Shallow Well Jet Pump

Model:

602208

Write A Review
$329.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Dec 23rd
Shipping to60601

Red Lion 23 GPM 1 HP Cast Iron Shallow Well Jet Pump
Red Lion 23 GPM 1 HP Cast Iron Shallow Well Jet Pump
Model: 602208
$329.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

1-1/4 Inch

Style

Shallow Well

GPM

23.2 Gallons

  • Red Lion Premium 1 HP Shallow Well Jet Pump
  • Ideal for use in pumping at depths of 25' or less
  • Heavy-Duty Cast Iron Construction
  • Built for years of reliable service
  • Includes Factory Pre-Wired 30/50 Pressure Switch
  • Produces up to 50 PSI with automatic shut-off
  • 115/230 Volt Heavy-Duty Century Motor
  • Voltage selector for simple connection to existing power source
  • Glass-Filled Thermoplastic Impeller and Diffuser
  • For high performance and efficient water flow
  • Additional Specs
  • 1-1/4" FNPT - Intake
  • 1" FNPT - Discharge
  • 3-Year Limited Warranty

Specifications

602208
specs product image PID-57944
General Information
Product Category
Water Pump
Motor
Voltage
120/240 Volt
Running Amps
8.8
Pump
Gallons Per Minute
23.2 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1 Inch
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
65
Total Head Lift
150 Feet
Submersible
No
Engine
Horsepower
1 HP
Overview
Product Category
Water Pump
Weight
40 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
20.5 Inches
Product Width
10.5 Inches
Product Height
10.25 Inches
UPC
010121147058
Additional Model Numbers

RJS-100-PREM, 602208
