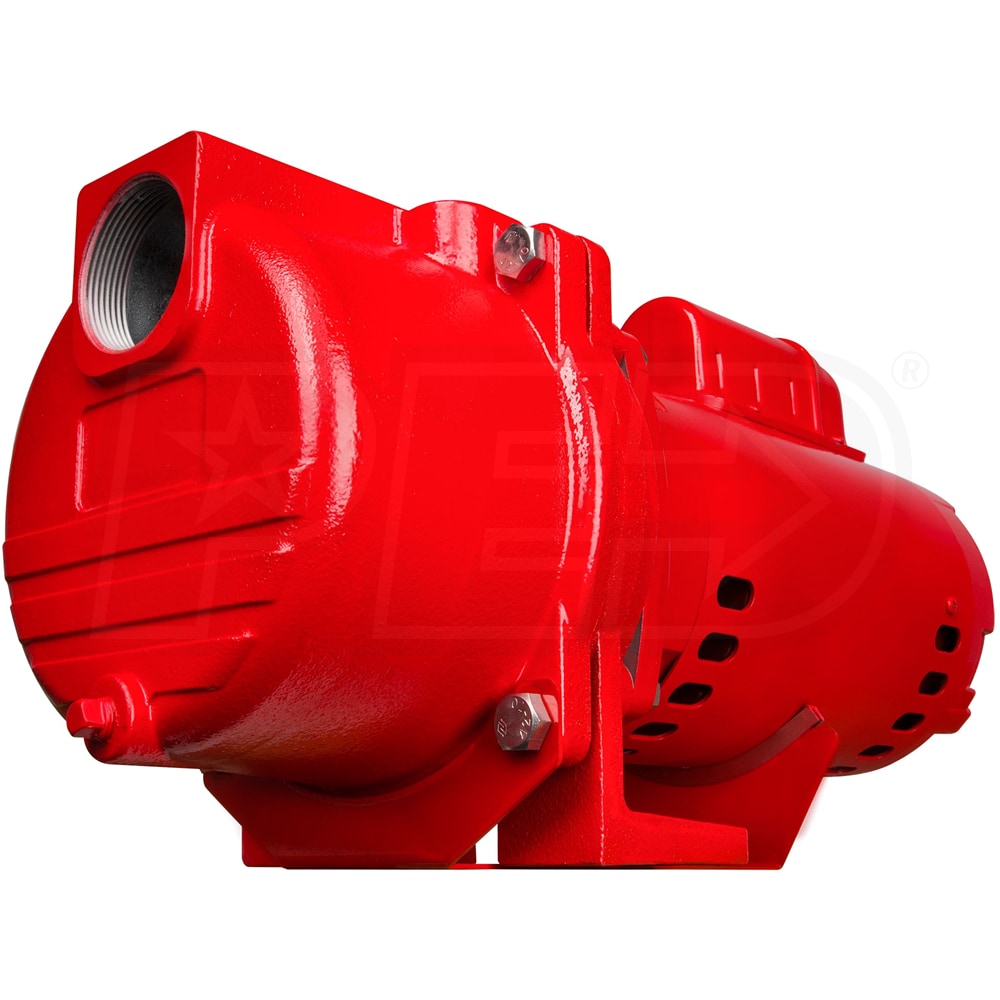

Red Lion RL-SPRK200 - 76 GPM 2 HP Self-Priming Cast Iron Sprinkler Pump

Model:

97102001

Write A Review
$469.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Tuesday, Jan 21st
Shipping to60601

Red Lion RL-SPRK200 - 76 GPM 2 HP Self-Priming Cast Iron Sprinkler Pump
Red Lion RL-SPRK200 - 76 GPM 2 HP Self-Priming Cast Iron Sprinkler Pump
Model: 97102001
$469.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Optional Accessories 7
$72.99
$33.75
In-Stock
$60.00
In-Stock
$24.99
Only 3 In-Stock
$64.00
In-Stock
$78.00
Only 5 In-Stock

Features

Inlet Size

2 Inch

Style

Sprinkler

GPM

76 Gallons

  • 2 HP Lawn Sprinkler Pump
  • For use in underground or above ground lawn sprinkling systems
  • Also for garden irrigation, boosting household water pressure
  • Can be used for recirculation of large volumes of water
  • Heavy-Duty Cast Iron Construction w/ Thermoplastic Impeller
  • Designed for years of service and reliability
  • 230 Volt Heavy-Duty Motor
  • Allows for simple connection to existing power source
  • Self-Priming Design
  • After initial fill, no additional priming required
  • Engineered Pump Housing & Hydraulics
  • For high performance, efficiency and quiet operation
  • Additional Specs
  • 2" NPT Intake / 1-1/2" NPT Discharge
  • 10.9 A @ 230 V
  • 2-Year Warranty

Specifications

97102001
specs product image PID-83289
General Information
Product Category
Water Pump
Motor
Voltage
230 Volt
Running Amps
10.9
Pump
Gallons Per Minute
76 Gallons
Inlet Diameter
2 Inch
Outlet Diameter
1-1/2 Inch
Self Priming
Yes
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
49
Submersible
No
Engine
Horsepower
2 HP
Overview
Product Category
Water Pump
Weight
64 Pounds
Consumer Warranty
2 Years
Product Length
19.9 Inches
Product Width
9.25 Inches
Product Height
12 Inches
UPC
010121001411
Additional Model Numbers

RL-SPRK200, 97102001

Reviews

(99)
Red Lion 97102001 Reviews & Ratings
Customer Photos and Videos
review image 1
review image 2
Customer Rating
4.66
(99 Ratings)
5
(77)
4
(14)
3
(5)
2
(2)
1
(1)
Verified Buyer
Verified Buyer
Pump
By Rick L
IL
Purchased 06/18/2024 |
Review Posted 07/11/2024
Working much better
Rick L Recommends This
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
4/5
icon-review-marker
Performance
4/5
icon-review-marker
Value
4/5
icon-review-marker
Pros:
Easy To Use, I'd Buy It Again
Verified Buyer
Verified Buyer
Unnecessary Purchase
By Vernon D
New Mexico
Purchased 08/24/2023 |
Review Posted 09/15/2023
Purchased new one cause the four year old one performed sluggish. Took it apart found no obvious problems. After a couple of days it started working great. I have a new pump for “sale”????
Vernon D Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
4/5
icon-review-marker
Pros:
Easy To Use, I'd Buy It Again
Cons:
Expensive
Verified Buyer
Verified Buyer
Noisy, Noisy....
By Dave W.
Florida
Purchased 04/25/2023 |
Review Posted 05/06/2023
First pump very noisy, low pressure. Water Pumps Direct was very good about putting me in contact with Red Lion for warranty. Called them and tech. support suspected bad bearing. They said tell Water Pumps Direct to give you a new pump. I did and a couple days later they shipped me a new pump. I installed that and its just as loud. It was hard as hell to prime like the first one. It does have good pressure and volume. I don't know if I can live with the noise. We'll see.
Made in china and questionable on longevity. Not really comfortable with this purchase.
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
3/5
icon-review-marker
Performance
4/5
icon-review-marker
Value
4/5
icon-review-marker
Pros:
Good pressure and volume.
Cons:
NOISY LOUD!
Good Pump!
By Jim D
Montana
Review Posted 08/07/2022
This is it’s 5th summer and it still works like it’s supposed to. I put a foot valve on the intake and I never need to mess with it.
Jim D Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, Price, I'd Buy It Again, Easy To Store
Red Lion 76GPM
By Drew L
Idaho
Review Posted 07/25/2022
This pump is amazing! We use it to pull water from a canal cistern to water our garden and small pasture. It will run 6 regular sprinkler heads and a 3/4 inch Rain Gun at the same time. Definitely would recommend this pump to others.
Drew L Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
I'd Buy It Again
Verified Buyer
Verified Buyer
Dissapointed
By Robert F.
Maricopa, Arizona
Purchased 10/07/2021 |
Review Posted 10/31/2021
After receiving the pump, I replaced an old pump with this one. After about 10 minutes of use the pump stops running and the shaft is in a bind. After calling pumps direct numerous times with a wait time was disconnected each time without speaking to anyone. Talk about upset ! So I disconnected the new pump went and bought another one from a local dealer and got water running again. I took the pumps direct pump to a place to have it rebuilt. All said and done the pumps impeller came off and destroyed the threads on the shaft. So now I have a kinda new pump that has been jerry rigged so it is not a total loss.
Robert F. Does Not Recommend This
Was this review helpful?
Expert Response
Red Lion provides a 2-Year Warranty on this model. For troubleshooting/warranty support, please contact Red Lion directly at (888) 956-0000. Please make note of the diagnosis and the rep you spoke to at Red Lion.
Dale, the Power Equipment Expert
Dale V.
Power Equipment Expert
Rating Breakdown
Features
4/5
icon-review-marker
Quality
1/5
icon-review-marker
Performance
4/5
icon-review-marker
Value
4/5
icon-review-marker
Verified Buyer
Verified Buyer
Spread The Word Of This Great Pump
By Arthur G.
Palm Coast, Florida
Purchased 04/10/2020 |
Review Posted 08/10/2021
With this Florida sun and previous pump having burnt out I needed something as fast as possible without blowing a hole in my pocket. Before running out to the locals, I decided to educate myself as to what to get. I found this pump ordered it on a Friday and extremely surprised... received it on Sunday. 2 days and shipping was included. Made my week.. Saved my lawn. Installed and running within 45 minutes after receiving it. It's been running for a few years now. Quiet and reliable... I'm on an acre with 13 zones!!!
Arthur G. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Price, Quiet, Id Buy It Again, Exceeded Expectations
Cons:
NONE
Verified Buyer
Verified Buyer
Works As Expected
By Gary S.
Conway, Arkansas
Purchased 07/01/2021 |
Review Posted 08/06/2021
This pump performs as expected. I am pumping out of a holding tank to water my yard and running 10 impulse heads at the same time.
Gary S. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
2/5
icon-review-marker
Pros:
Quiet, Id Buy It Again, Reliable, Durable
Cons:
Expensive
Verified Buyer
Verified Buyer
Great Deal and Quality
By Larry W.
Forsyth, Georgia
Purchased 04/23/2021 |
Review Posted 07/16/2021
Use this pump to pump uphill from a stream. Works great and primes easy.
Larry W. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Price, Id Buy It Again, High Quality, Durable
Verified Buyer
Verified Buyer
2hp Red Lion
By John P.
Lizella, Georgia
Purchased 05/28/2021 |
Review Posted 07/10/2021
I use this for yard irrigation. It pulls from the lake, has good pressure, but is a bit noisy.
John P. Recommends This
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
4/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Id Buy It Again
Cons:
Noisy

Product Q&A
