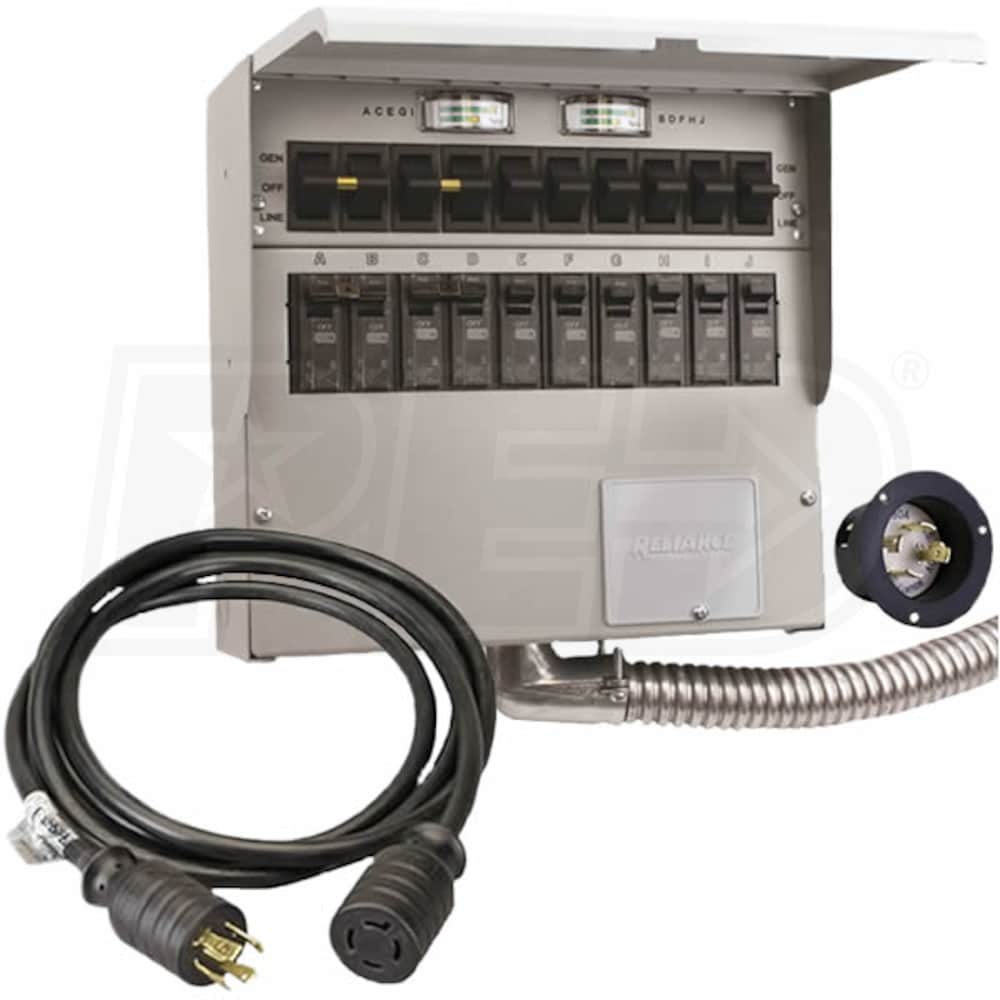

Reliance Controls Pro/Tran 2 - 30-Amp (10-Circuit) Power Transfer Switch Kit w/ 25' Cord

Model:

310AK

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Reliance Controls Pro/Tran 2 - 30-Amp (10-Circuit) Power Transfer Switch Kit w/ 25' Cord
Reliance Controls Pro/Tran 2 - 30-Amp (10-Circuit) Power Transfer Switch Kit w/ 25' Cord
Model: 310AK
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Reliance 30-Amp 10-Circuit Power Transfer Kit
  • Provides what you need to power hardwired circuts in your home
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • Pro/Tran® 2 30-Amp 10-Circuit 120/240V Manual Transfer Switch
  • The next generation of Loadside™ manual transfer switches
  • NEW Color-Coded Built-In Wattage Meter
  • Helps you balance and manager generator load
  • (10) Total Circuits (1" Interchangable Style)
  • 10 Single-Pole Circuits or 5 Double-Pole Circuits
  • Versatile Connection
  • Allows hardwiring OR plug-in connection via power inlet (Included)
  • Powder-Coated Steel Cabinet For Indoor Installation
  • 18" Flexible conduit w/ all factory wires clearly marked/colored
  • (6) Combination 1/2" & 3/4" knockouts for easier installation
  • 25' 30-Amp (L14-30) Generator Power Cord
  • Heavy-Duty, rubber molded design rated up to 7500w @ 240V
  • Safety & Certifications
  • Certified to UL Stanard 1008 & Meets All Req'd 702 NEC ANSI/NFPA 70
  • 5-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Cadmium which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA L14-30R
310AK
specs product image PID-50907
Overview
Weight
25 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
13.75 Inches
Product Width
7 Inches
Product Height
4.5 Inches
UPC
815181012069
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
6
20A 240V
2
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Cord
Cord Length
25 feet
Connection Type
Male
Prongs
Four-Prong
