Reliance Controls Power Transfer Switch Kit for Portable Generators (6 Circuit)

Model:

31406CRK

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Reliance Controls Power Transfer Switch Kit for Portable Generators (6 Circuit)
Reliance Controls Power Transfer Switch Kit for Portable Generators (6 Circuit)
Model: 31406CRK
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert

Features

  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • Everything But the Electrican

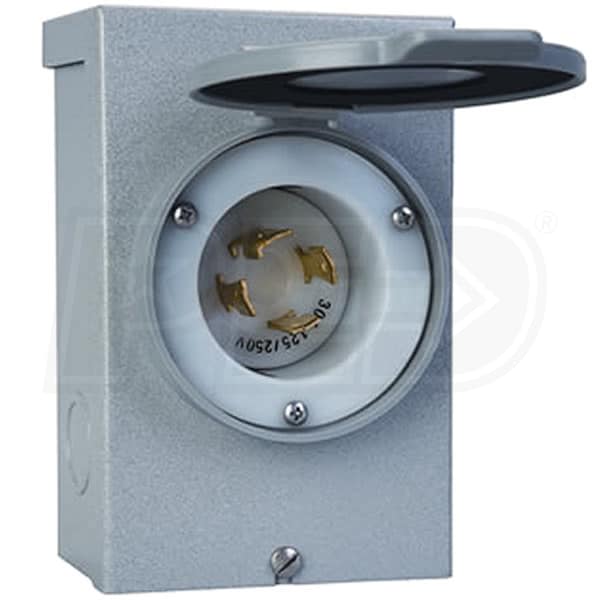

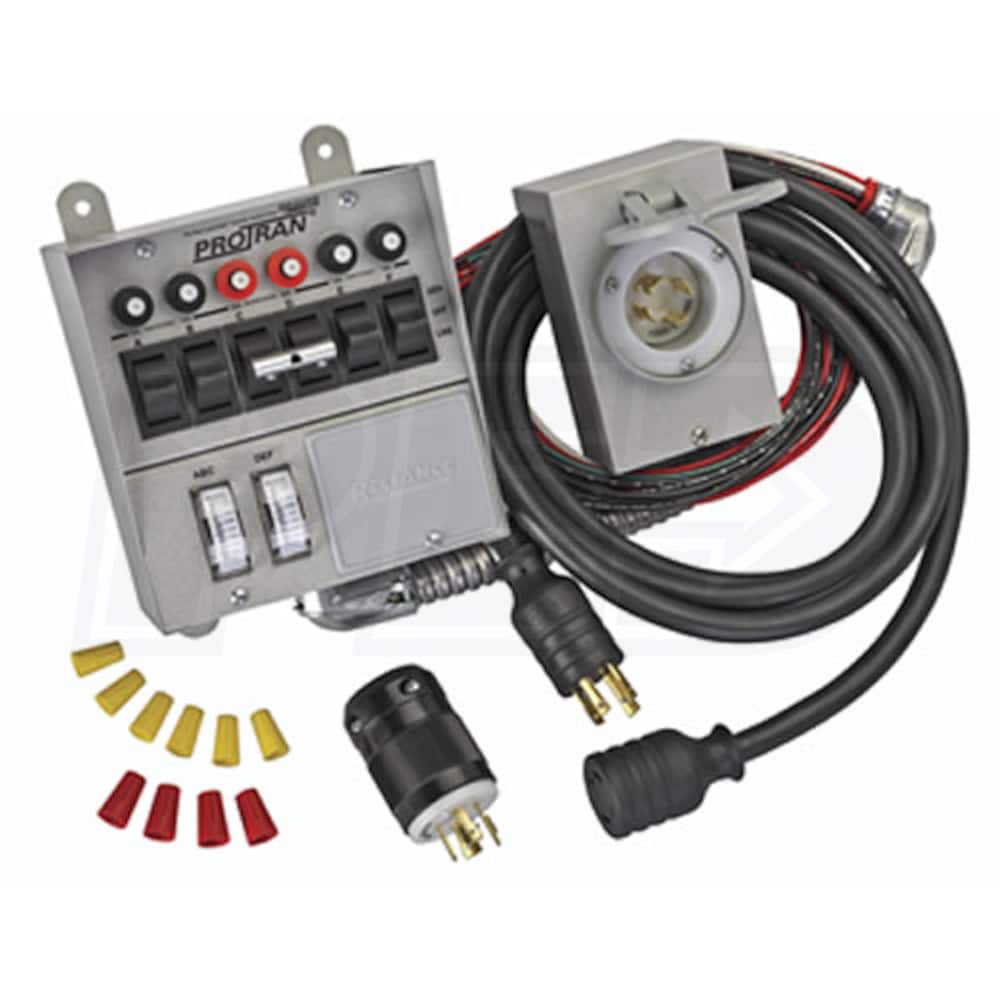

  • Pre-wired transfer switch, power inlet box and 10 ft. cord
  • 30-Amp AND 20-Amp Compatible
  • Designed for 30-Amps, includes interchangeable 20-Amp plugs

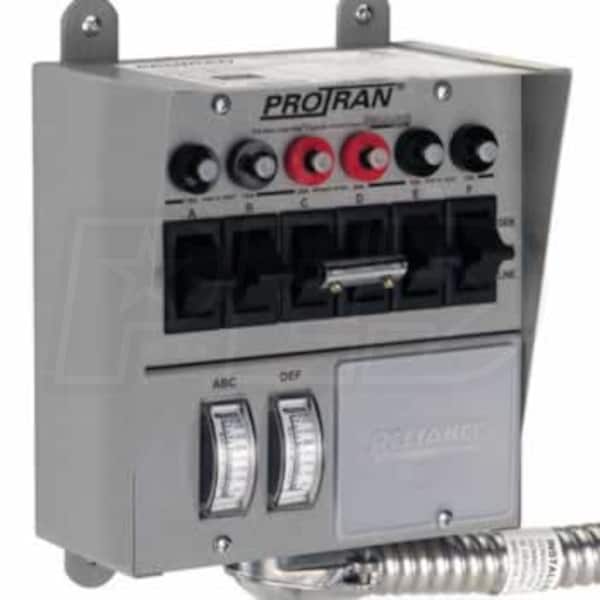

  • 6 Total Circuits
  • Four 1-Pole (15-Amps) and One 2-Pole (20-Amps)
  • UL Listed
  • Certified for use by Underwriter Laboratories

Specifications

Plug Types
NEMA L14-20R
NEMA L14-30R
31406CRK
specs product image PID-1124
Overview
Weight
15 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
7.5 Inches
Product Width
7 Inches
Product Height
4.5 Inches
UPC
851890000034
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
6
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
4
20A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-20R
1
NEMA L14-30R
1

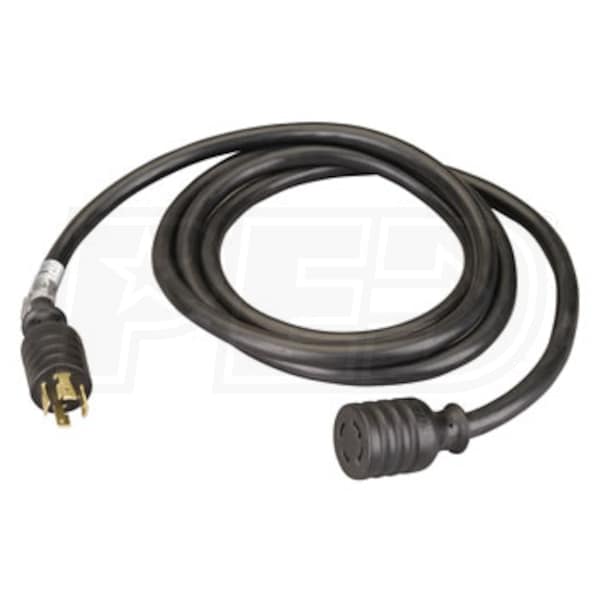

Cord
Cord Length
10 feet
Wire Gauge
10 Gauge

Reviews

(36)
Reliance Controls 31406CRK Reviews & Ratings
Customer Rating
4.89
(36 Ratings)
5
(32)
4
(4)
3
(0)
2
(0)
1
(0)
Great Investment
By Terrell G.
GWYNN OAK, Maryland
Review Posted 01/23/2016
I'm married with two kids. It feels good to not have to leave the comfort of our home during power outages.
Terrell G. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Easy to Install Yourself
By Noah E.
Columbus, Ohio
Review Posted 10/06/2015
I installed the unit on two separate days the box outside and wiring and then the transfer box and wiring. The 2nd day total about 2 and a half hours.

Fired up the generator and fliped the switchs its so nice to be able to have power in an emergency with out cords all over the floor.
Noah E. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
1-2-3 done!
By Robert G.
Hanover, Pennsylvania
Purchased 03/10/2015 |
Review Posted 04/10/2015
This was an easy install and the installation DVD is a great idea for those of us that need to see how the installation is done.
Glad I bought it and would do it again!!!
Robert G. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
POWER OUTAGES MADE EASY
By Michael M.
toms river, New Jersey
Purchased 01/29/2015 |
Review Posted 04/02/2015
Excellent companion to my portable generator. No more fumbling with wires in the house during a power outage. Just plug the generator into the convenient outside receptacle and flip the transfer control switches inside the house to be ready to continue as if nothing bad had occurred.

Still got heat, fridge, microwave, lights, etc. Highly recommended! By the way, delivery was FAST!!! The next time you drag all those wires to all your appliances, you'll remember what I wrote... get one NOW !!
Michael M. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
6 Circuit Transfer Switch
By William C.
Woodbridge, Virginia
Purchased 02/21/2015 |
Review Posted 03/15/2015
Wanted to upgrade from a single transfer switch to a 6 circuit switch. Web order arrived sooner than expected.

The instructions and video were excellent and was able to install switch in less time than I expected.

I'm ready for the next power outage.
William C. Recommends This
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
Everything you need
By Douglas H.
Westland, Michigan
Purchased 10/17/2014 |
Review Posted 11/07/2014
This kit included everything you need to complete this task. Great price and fast delivery. Thank you.
Douglas H. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
Must Have For Emergency Portable Generator
By Steve B.
Catonsville, Maryland
Purchased 08/04/2012 |
Review Posted 07/08/2014
Saves tremendous amount of time and effort over stringing multiple extension cords during a power outage.
Steve B. Recommends This
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
4/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
I'd Buy It Again, Easy To Use, Durable, High Quality
Verified Buyer
Verified Buyer
Quick and Easy
By Dan F.
silver spring, Maryland
Purchased 09/24/2010 |
Review Posted 07/08/2014
Second transfer switch I have installed, and the instructions were dead on. Took me about an hour, counting fitting location support bd and connecting it all. I am not an electrician but I worked as Jr Electrician 40 years ago and understand how to deal with power (still alive). I did the install with main's cut off and it was just 2-wires per circuit. Finding the best knock out to attach was the most time consuming and I was spanning 2 - 200a boxes so there was some cross ties needed. Other than that very easy and even my wife can now switch over power.
.
Dan F. Recommends This
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
4/5
icon-review-marker
Pros:
I'd Buy It Again, Easy To Use, Durable, Fast
Verified Buyer
Verified Buyer
Reliance Controls Power Transfer Kit for Portable Generators
By Renton F.
Pendleton, Oregon
Purchased 12/31/2013 |
Review Posted 01/21/2014
Easy to install, Video very good.
Renton F. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Value
4/5
icon-review-marker
Pros:
I'd Buy It Again, Easy To Use, Durable, Features
Verified Buyer
Verified Buyer
Everything You Need To Hook Up Your Generator
By David H.
Quinlan, Texas
Purchased 12/11/2013 |
Review Posted 01/04/2014
Counting figuring out what circuits to put on the generator and then finding which breaker controls them, I had my generator wired to my house in about 4 hours with this kit. The only regret I have is that I should have bought an eight-circuit version, instead of the six-circuit unit. Although six circuits seemed appropriate for a 40 amp generator, actual use in my situation indicates eight circuits would be a better choice.
David H. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
I'd Buy It Again, Easy To Use, Exceeded Expectations
