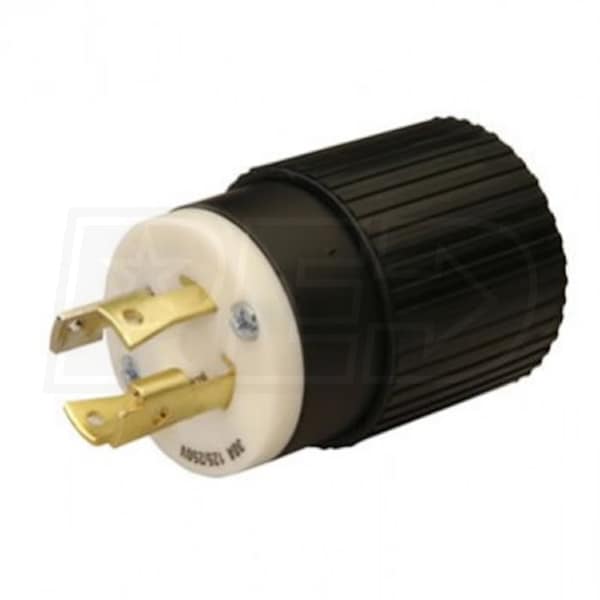

Reliance Controls 30-Amp (4-Prong) Generator Plug

Model:

L1430P

Write A Review
$17.99
In-Stock
Ships Wednesday, Nov 20th
Shipping to60601
Reliance Controls 30-Amp (4-Prong) Generator Plug
Reliance Controls 30-Amp (4-Prong) Generator Plug
Model: L1430P
$17.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Male End
  • Modify or create your own generator power cord
  • Cord Connection
  • Use with 10-gauge power cord for up 7500 watts of power
  • Versatile
  • Connects to most portable generators with 30-amp outlets
California residents see
Warning: This product can expose you to chemicals including Wood dust which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA L14-30R
L1430P
specs product image PID-1074
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Weight
1 Pound
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
4 Inches
Product Width
4 Inches
Product Height
4 Inches
UPC
851890000454
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Plugs
NEMA L14-30R
1
Cord
Plug Type
L14-30R

Reviews

(3)
Reliance Controls L1430P Reviews & Ratings

Product Q&A

(3)
Expert avatar photo
Product Questions Answered by Jared, the Generator Expert
I have a generator with a 4 prong 30amp plug, it says it is 240 volt, I wnat to connect this to my RV that is 30 amp 120volt, is there an adapter that would accomadate this?
Ken Vinson
from South Carolina
August 04, 2012
Jim, I need help! I have a 8000 watt Titan generator with a 4-prong twistlock outlet for 240 service. I also have a three-prong "crowsfoot" male end on my older Sears Craftsman welder. I need to see if they have a cord adapter that I can buy or if I need to build one. Can you help? A wiring diagram would REALLY help!
Jake Oswald
from Colorado
August 28, 2011
I have a generator with a four prong I am looking for adapter to a three prong RV plug?
John Youngman
from Michigan
May 14, 2011
