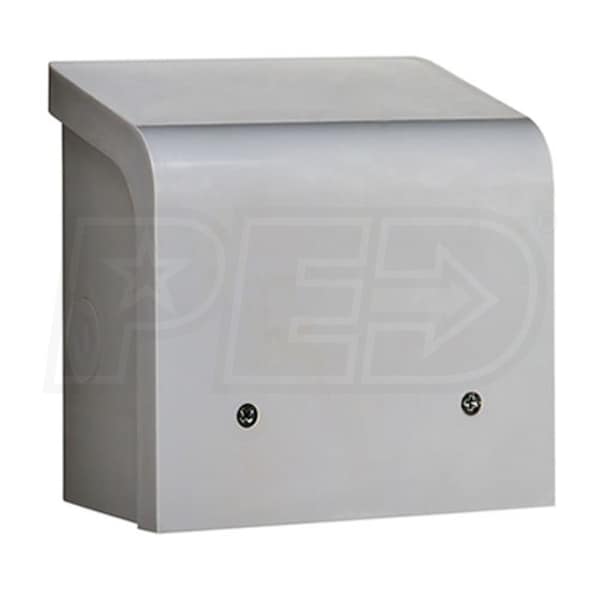

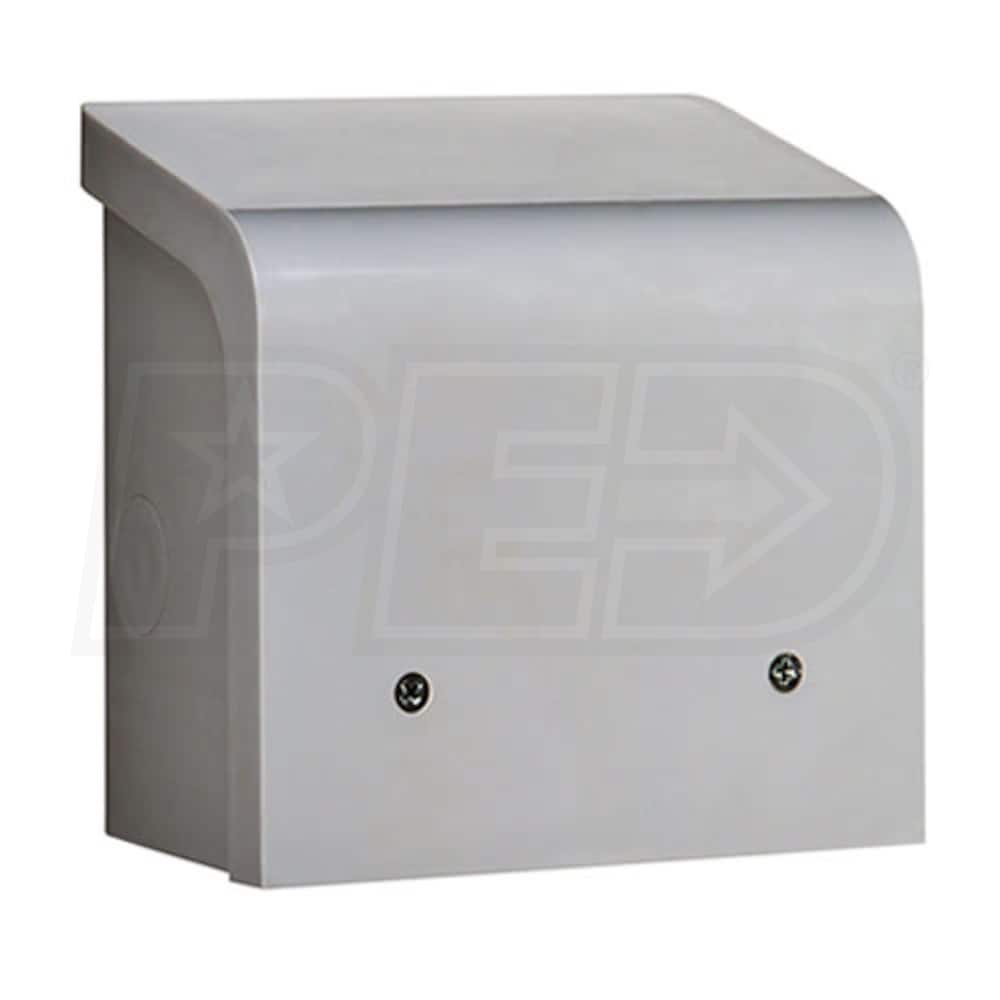

Reliance Controls 20-Amp (4-Prong) Power Inlet Box (Non-Metallic)

Model:

PBN20

Write A Review
$59.49
Factory-Direct
Ships in 4-6 Weeks
Reliance Controls 20-Amp (4-Prong) Power Inlet Box (Non-Metallic)
Reliance Controls 20-Amp (4-Prong) Power Inlet Box (Non-Metallic)
Model: PBN20
$59.49
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Raintight and Bug Proof
  • Easy access flanged cover
  • POP-FAST™ 3/4 Inch Knock-out Design
  • Fast installation
  • Slide-Out Base
  • 360 degree rotation for quick terminal connections
  • Large 103 cu/in interior area for heavy duty wiring
  • Nema 3R Enclosure
  • Indoor and outdoor rated
  • High impact construction
  • UL Listed
  • UV stabilized ABS construction
California residents see
Warning: This product can expose you to chemicals including 1,3-Butadiene which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA L14-20R
PBN20
specs product image PID-4836
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Weight
2.5 Pounds
Consumer Warranty
2 Years
Product Length
6.25 Inches
Product Width
6.25 Inches
Product Height
4.375 Inches
UPC
815181010706
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
20 Amps
Enclosure
NEMA 3R
Max Utility Input
20 Amps
Max Generator Input
20 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Plugs
NEMA L14-20R
1
