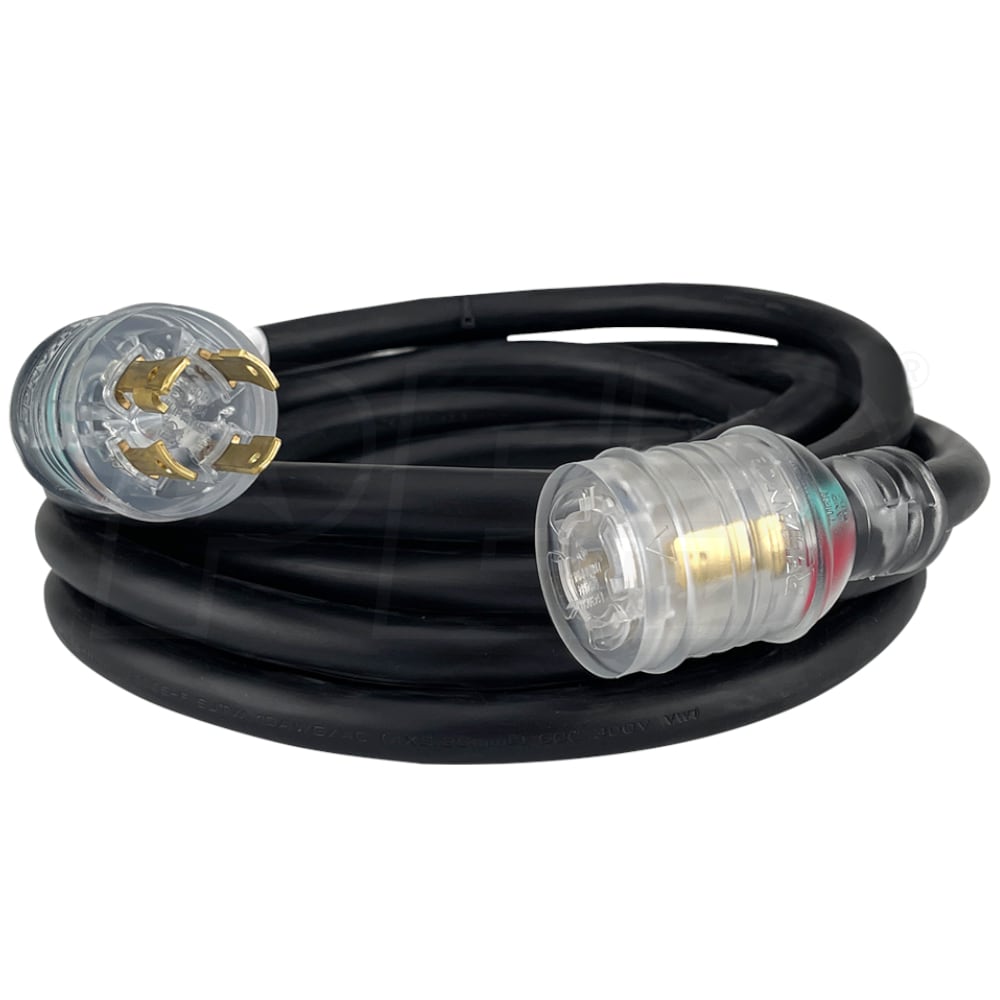

Reliance Controls 30-Amp (4-Prong 120/240V) Generator Power Cord w/ LED Indicator (20-Foot)

Model:

PC3020M

Write A Review
$72.99
In-Stock
Ships Thursday, Dec 26th
Shipping to60601
Reliance Controls 30-Amp (4-Prong 120/240V) Generator Power Cord w/ LED Indicator (20-Foot)
Reliance Controls 30-Amp (4-Prong 120/240V) Generator Power Cord w/ LED Indicator (20-Foot)
Model: PC3020M
$72.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Reliance Controls 30-Amp 120/240V (L14-30) Power Cord
  • Connect a generator and transfer switch with a single cord
  • 20-Foot Cord Length
  • Locking plug and connector for safer operation
  • LED Indicator Light (Female End)
  • Makes it easy to see when cord is powered
  • Flexible, Rugged All-Weather Construction
  • Male and female molded ends
  • Heavy-Duty (10-Gauge)
  • UL listed for outdoor use
  • Power cord holds up to 7,500 watts at 240 volts
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA L14-30R
PC3020M
specs product image PID-1091
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Weight
6.5 Pounds
Made in USA
No
Consumer Warranty
5 Years
Commercial Warranty
5 Years
UPC
851890000133
Additional Model Numbers

PC3020, PC3020M

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Plugs
NEMA L14-30R
1
Cord
Cord Length
20 feet
Wire Gauge
10 Gauge

Reviews

(42)
Reliance Controls PC3020M Reviews & Ratings

Product Q&A

(3)
Expert avatar photo
Product Questions Answered by Jared, the Generator Expert
Hello I have a 20 foot generator cord. Reliance Controls PC3020 20Feet 30 Amp L1430 Generator Power Cord for Up to 7,500Watt Generators. it is too short. Can I buy a second 20 foot cord to extend the original to 40ft? is this safe?
Patrick Morris
from Massachusetts
October 09, 2013
I have a Generac GP 5500 portable, and I want to connect it to my power inlet box to supply power to my house in case of an emergency. The issue I have is my power inlet box is a 50 amp instead of 30, so the female end of the cord needs to be a 50amp 3 prong instead of the 30 amp 4 prong. The question is if I purchased this cord, could I buy a 50 amp adapter with a female end to replace the one on this cord?
Craig Reukauf
from Wisconsin
September 29, 2013
What is the weather/temperature rating on a reliance PC3040 generator power cord?

from Missouri
February 05, 2011
