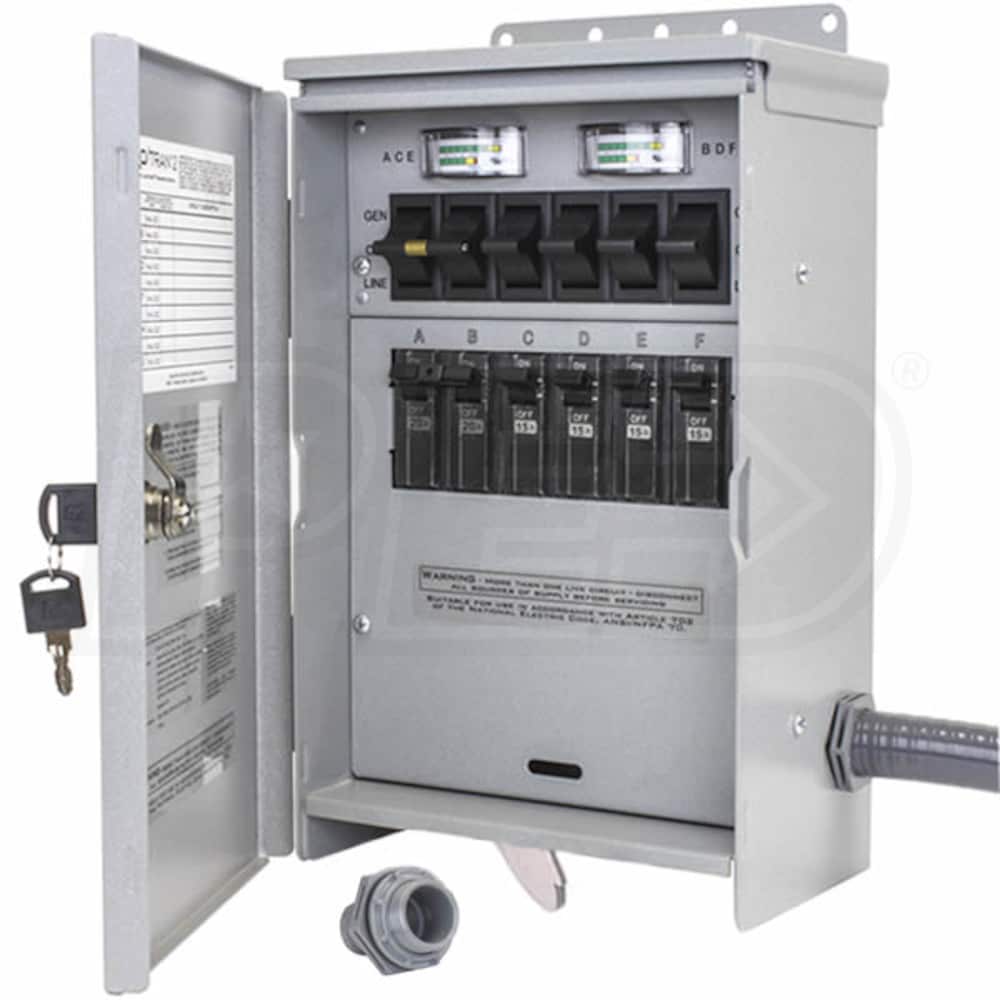

Reliance Controls Pro/Tran 2 - 20-Amp (120/240V 6-Circuit) Outdoor Transfer Switch w/ Wattmeters & Inlet

Model:

R206A

Write A Review
$360.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks

Reliance Controls Pro/Tran 2 - 20-Amp (120/240V 6-Circuit) Outdoor Transfer Switch w/ Wattmeters & Inlet
Reliance Controls Pro/Tran 2 - 20-Amp (120/240V 6-Circuit) Outdoor Transfer Switch w/ Wattmeters & Inlet
Model: R206A
$360.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Manual

Amp Rating

20

Circuits

6

Voltage

120/240 Single-Phase

Enclosure

NEMA 3R

  • Pro/Tran® 2 20A 6-Circuit 120/240V Outdoor Manual Transfer Switch
  • The next generation of Loadside™ manual transfer switches
  • Non-Defeatable (Break-Before-Make) Double-Throw Switch
  • Eliminates dangerous backfeeds and electrical overloads
  • 6 Total Circuits (1" Interchangable Style)
  • (4) 15A 1-Pole and (1) 20A 2-Pole; Easily re-configured in the field
  • NEW Color-Coded Built-In Wattage Meter
  • Helps you balance and manage generator load
  • Factory Installed (L14-20) Power Inlet w/ Flip-Lid
  • Easily connect your generator cord on bottom of switch
  • NEMA 3R Powder-Coated Steel Cabinet For Outdoor Installation
  • Gasketed design, provides liquid tight protection in all seasons
  • Key lockable door prevents tampering & unauthorized use
  • 16" Flexible, Non-Metalic Liquid-Tight Conduit (1") w/ Fittings
  • (5) Combination 1/2" & 3/4" knockouts for easier installation
  • Factory-marked, color-coded wires simplifies installation
  • Safety & Certifications
  • Certified for use by Underwriter Laboratories to UL Stanard 1008
  • •Meets all requirements of article 702 of the NEC ANSI/NFPA 70
  • 5-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Cadmium which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA L14-20R
R206A
specs product image PID-61742
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
18 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
13 Inches
Product Width
8 Inches
Product Height
5 Inches
UPC
815181012809
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
5000 Watts
Rated Amps
20 Amps
Enclosure
NEMA 3R
Conduit Length
16
Number of Circuit Breakers
6
Max Generator Input
20 Amps
Maximum Wattage
5000 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
4
20A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-20R
1
