Reliance Controls Pro/Tran 2 - 30-Amp (120/240V 6-Circuit) Outdoor Transfer Switch w/ Wattmeters & Inlet
Model:
R306A
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Type
Manual
Amp Rating
30
Circuits
6
Voltage
120/240 Single-Phase
Enclosure
NEMA 3R

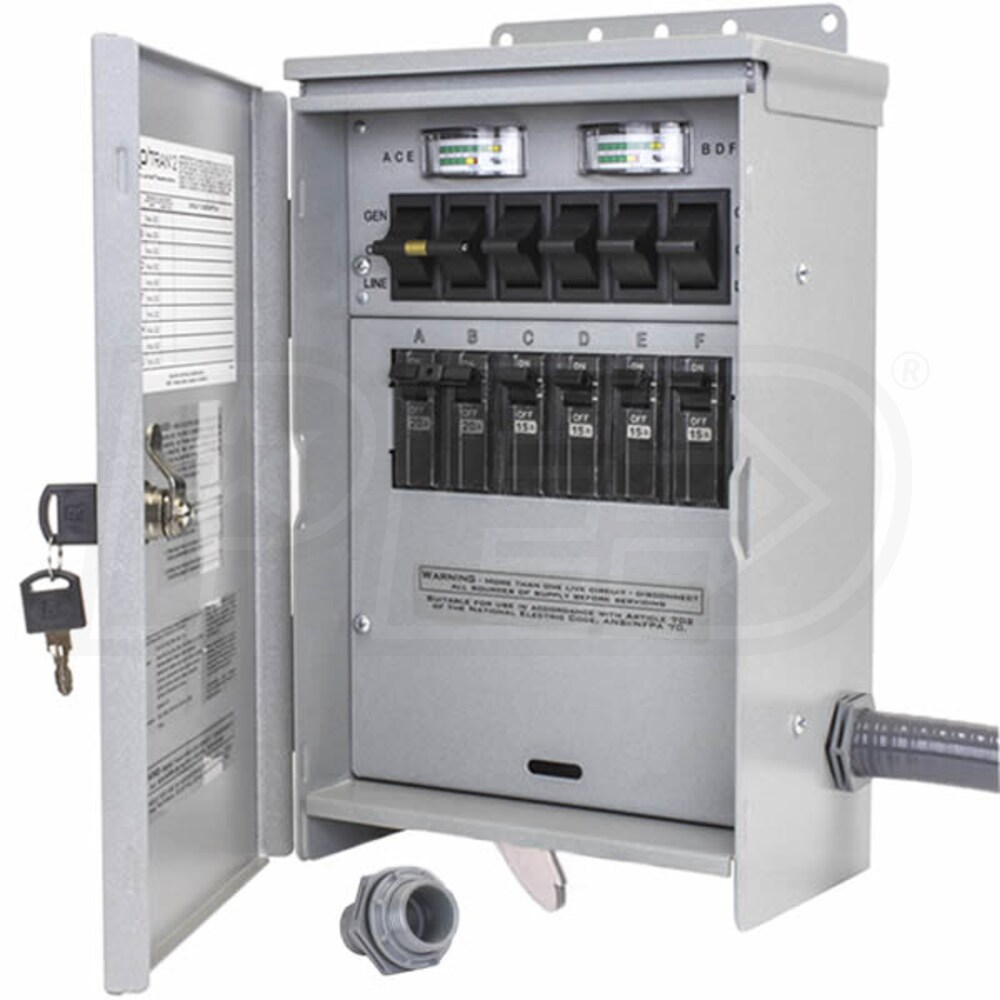

- Pro/Tran® 2 30A 6-Circuit 120/240V Outdoor Manual Transfer Switch
- The next generation of Loadside™ manual transfer switches
- Non-Defeatable (Break-Before-Make) Double-Throw Switch
- Eliminates dangerous backfeeds and electrical overloads
- 6 Total Circuits (1" Interchangable Style)
- (1) 20A 2-Pole & (4) 15A 1-Pole
- NEW Color-Coded Built-In Wattage Meters
- Helps you balance and manager generator load

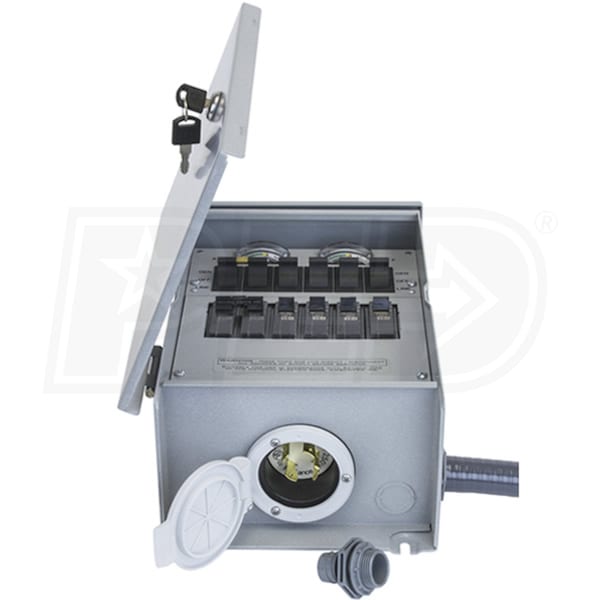

- Factory Installed (L14-30) Power Inlet w/ Flip-Lid
- Easily connect your generator cord on bottom of switch
- NEMA 3R Powder-Coated Steel Cabinet For Outdoor Installation
- Gasketd design, provides liquid tight protection in all seasons

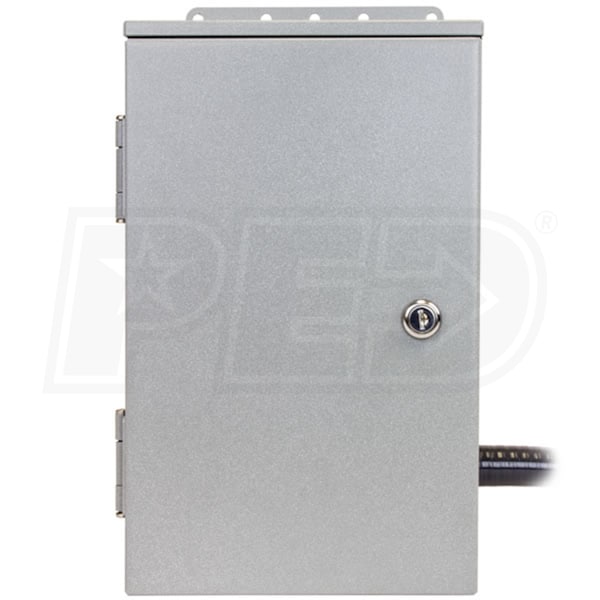

- Key lockable door prevents tampering & unauthorized use
- 16" Flexible, Non-Metalic Liquid-Tight Conduit (1") w/ Fittings
- (5) Combination 1/2" & 3/4" knockouts for easier installation
- Factor-marked, color-coded wires simplifies installation
- Safety & Certifications
- Certified for use by Underwriter Laboratories to UL Stanard 1008
- •Meets all requirements of article 702 of the NEC ANSI/NFPA 70
- 5-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Cadmium which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
R306A
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
18 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
13 Inches
Product Width
8 Inches
Product Height
5 Inches
UPC
815181012786
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 3R
Conduit Length
16
Number of Circuit Breakers
6
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
4
20A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
