Reliance Controls TRC1005C
Reliance Controls TRC1005C
Hover to zoom
1 of 1

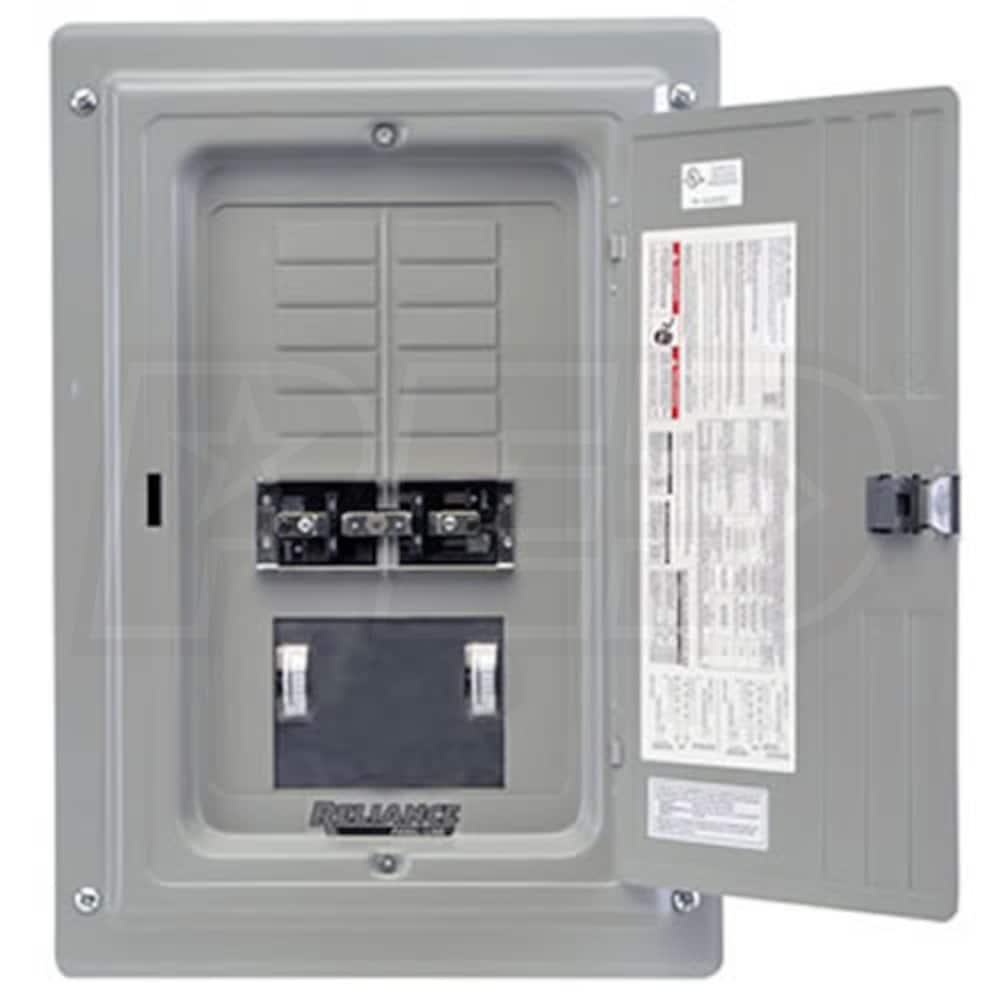

Reliance Controls 100-Amp Utility/50-Amp Gen Indoor Transfer Panel w/ Wattmeters

Model:

TRC1005C

Write A Review
$299.99
In-Stock
Ships Thursday, Jan 23rd
Shipping to43085

Reliance Controls 100-Amp Utility/50-Amp Gen Indoor Transfer Panel w/ Wattmeters
Reliance Controls 100-Amp Utility/50-Amp Gen Indoor Transfer Panel w/ Wattmeters
Model: TRC1005C
$299.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Similar Products

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Optional Accessories 8
$339.99
In-Stock
$431.99
In-Stock
$292.99
Factory-Direct
$79.99
Backordered
$79.79
Only 2 In-Stock
$86.49
In-Stock
$40.99
In-Stock

Features

  • Reliance Panel/Link®
  • Combines a circuit panel and a transfer switch together
  • Perfect for new construction and/or renovation
  • Built-in wattage meter helps you manage load
  • This transfer panel is designed for hardwired installation.
California residents see
Warning: This product can expose you to chemicals including Wood dust which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

TRC1005C
specs product image PID-2830
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
26 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
21 Inches
Product Width
14.5 Inches
Product Height
4 Inches
UPC
851890000799
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
100 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
12
Max Utility Input
100 Amps
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes

Reviews

(16)
Reliance Controls TRC1005C Reviews & Ratings
Customer Rating
4.81
(16 Ratings)
5
(13)
4
(3)
3
(0)
2
(0)
1
(0)
Verified Buyer
Verified Buyer
The Perfect Solution
By Petersek
Virginia
Purchased 10/10/2024 |
Review Posted 11/02/2024
This is a great, reasonably priced option for safely transferring power between the mains and a generator. The only complaint I have is the force required to move the transfer actuator is fairly high, making it difficult for some folk to move (my wife). A small handle or knob would help.
Petersek Recommends This
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Price, I'd Buy It Again
Verified Buyer
Verified Buyer
Excellent Product At Great Price
By Neil M
Wisconsin
Purchased 03/26/2024 |
Review Posted 05/22/2024
We have installed many generator transfer switch/panels, this was by far the best. Nice to have the VA meters on each line so the homeowner can monitor and regulate the loads. Worked just fine, will buy these again, from Electric Generators Direct.
Neil M Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, Price, I'd Buy It Again, Easy To Store
Cons:
None
Verified Buyer
Verified Buyer
Great Transfer Switch Sub Panel
By jcsc
South Carolina
Review Posted 10/31/2022
This seems like a well built panel but one of the two screws securing the plastic bus assembly to the case had fallen out and down in the panel. I replaced it with a nut and bolt. The cover has to mount flush with the breakers slightly proud as the transfer switch hardware bar that slides back and forth slightly overlaps the edge of the case. But everything works great. I used 2 gage copper service entry to a 100 amp breaker, then moved circuit breakers from the main panel to this one. Siemens tandem breakers work great as well as GE regular breakers that I happened to have. It's been in service for over two weeks and no problems at all and so nice being able to change over to generator power without risk of back feeding main panel or generator.
jcsc Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
4/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, Price, I'd Buy It Again, Easy To Store
Verified Buyer
Verified Buyer
Good Product!
By Robert G.
OLYMPIA, Washington
Purchased 01/05/2022 |
Review Posted 01/27/2022
Good basic manual transfer switch panel. Well laid out and easy to implement for anyone with installation and wiring skills. Having CTs and meters is definite plus!
Robert G. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, Durable, Features
Verified Buyer
Verified Buyer
I Love It, Exactly Whit I Wanted
By Wayne A.
Brentwood, Tennessee
Purchased 11/09/2021 |
Review Posted 12/04/2021
Will be used in my emergency electrical system.
Wayne A. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Price
Verified Buyer
Verified Buyer
Just Got This Switch But Is Working Great Under Testing
By Jesse N.
Thornton, Texas
Purchased 03/03/2021 |
Review Posted 04/15/2021
The watt meters (for me) should be capable of reading up to maximum output. I like that you only need to flip from main power to generator with one application.
Jesse N. Recommends This
Was this review helpful?
Rating Breakdown
Features
3/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, High Quality, Id Buy It Again, Price
Cons:
Bad Instructions
Verified Buyer
Verified Buyer
Good Product
By Michael G.
Stanhope, New Jersey
Purchased 12/15/2020 |
Review Posted 01/20/2021
Excellent product but pricey.
Michael G. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
4/5
icon-review-marker
Value
3/5
icon-review-marker
Pros:
Easy To Use, High Quality, Id Buy It Again, Durable
Verified Buyer
Verified Buyer
Good Generator Panel
By Bob T.
Clinton, South Carolina
Purchased 08/10/2020 |
Review Posted 09/22/2020
Good panel. Easy to work with. Reasons I did not rate it excellent on everything is one: Price has dramatically increased in the last few years. Two: The center divider that separates the breakers is not attached at the bottom and flops around when trying to install the cover. Three: The label on the door is upside down when the door is reversed for opening purposes.
Bob T. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
4/5
icon-review-marker
Performance
4/5
icon-review-marker
Value
3/5
icon-review-marker
Verified Buyer
Verified Buyer
Perfect setup for a Manual Transfer Panel/Switch
By Ralph B.
Sacramento, California
Purchased 06/16/2020 |
Review Posted 07/21/2020
First, I was very impressed with the quality that Reliance puts into this panel. It has a copper buss, Watt meters for the generator leads and a quality mechanism that operates the 100 and 50 Amp breakers so that one turns off while the other is being energized. Also included was main lugs on the panel buss, which is exactly what I needed in order to have another load center connected to it for generator power.

The sheet metal fabrication and finish on this panel are excellent. I like setting up my manual transfer panels with this panel because I am not confined to just a 30 amp load like the pre-wired emergency panels that you commonly see.
Ralph B. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
High Quality, Id Buy It Again, Price, Exceeded Expectations
Verified Buyer
Verified Buyer
Great Panel For A Manual Switched Home Generator.
By Kevin K.
PICKENS, South Carolina
Purchased 04/15/2020 |
Review Posted 05/06/2020
Loads of space inside for wiring and many extra ground and neutral screws. It takes tandem type breakers so you can have up to 20 circuits if you want. This panel was easy installation and wiring. The watt-meters are a great feature for seeing the load and any imbalance.
Kevin K. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
4/5
icon-review-marker
Pros:
Easy To Use, Id Buy It Again, Features, High Quality

Product Q&A

(5)
Expert avatar photo
Product Questions Answered by Jared, the Generator Expert
Can this panel accept slimline or tandem breakers? If not do you have a panel that can accommodate 16 breakers? Thanks
Rob Heagney
from Pennsylvania
March 06, 2015
Will I have to have space for a 60 or 100 amp 2 pole breaker in the main service box?
Mark Osborn
from Nebraska
February 07, 2014
Ref: Generac Model 5735 We have a 200 AMP service and would like to use the 100 AMP manual transfer switch. Does the 100 AMP switch work the same way as the Kit50-25SB? Is the reason for the price difference the circuit breakers for the 100 AMP switch?
Ken McDaniel
from Louisiana
May 04, 2011
What circuit breakers do I use for the branch circuits?
Mike
from Iowa
February 08, 2011
Where do I plug my generator into this Transfer switch?
Ben Weston
from Pennsylvania
January 31, 2011
