Features
- 50-Amp Outdoor Power Center (200-Amp Utility)
- Feed generator power to your whole electrical panel
- Pick & choose what you want to run (up to gen capacity)
- Service Disconnect
- Quick and easy installation through your utility meter
- NEMA 3R Outdoor Aluminum Enclosure
- Durable corrosion and rust resistant exterior
- Full-Size Load Center
- Can accommodate up to 16 1-Inch Breaker or 32-tandem breakers
- Flexible Connection
- Hardwire to you generator or power inlet box (Not Included)
- Heavy-Duty Copper Bus Bar For Added Reliability
California residents see
Warning: This product can expose you to chemicals including Wood dust which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
TTH2005DR
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
40 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
29 Inches
Product Width
16.625 Inches
Product Height
4.5 Inches
UPC
815181015381
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
16
Max Utility Input
200 Amps
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Reviews
(2)
Reliance Controls TTH2005DR Reviews & Ratings
Product Q&A
(1)
Product Questions
Answered by Jared, the Generator Expert
Josh, looking at getting the Reliance TTH2005DR outdoor power center to replace my entrance power center. My existing panel has Type QP circuit breakers. Will this Reliance panel accept my circuit breakers. This way I don't have to buy new circuit breakers.
Cory Acosta
from Louisiana
September 01, 2013
How-To Articles
How to Pick the Perfect Manual Transfer Switch
During a sudden power outage, you probably don’t feel like running multip...
How to Avoid Tripping a Generator With a Bonded Neutral
Does your generator outlet trip every time you connect it to your home's transf...
How to Pick the Perfect Power Transfer System
Power transfer systems are the easiest, most convenient way to restore power to...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

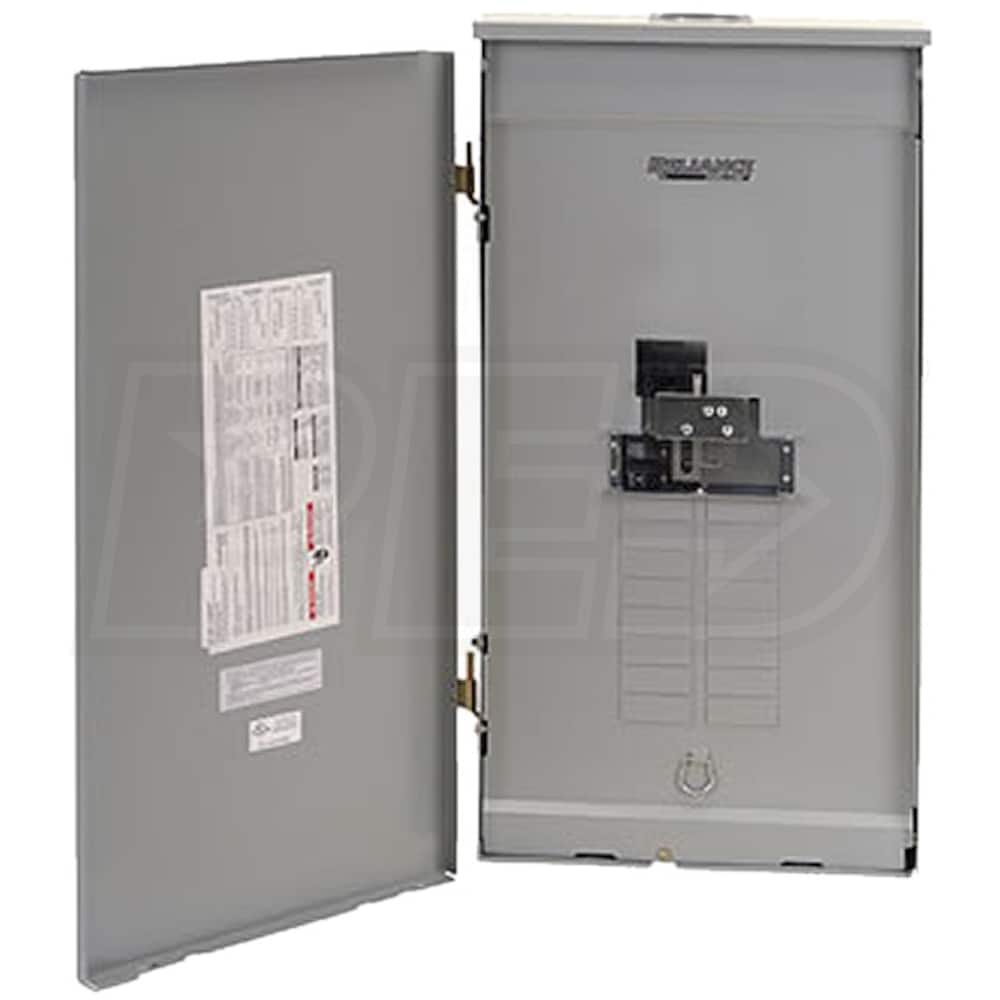

Reliance Controls 200-Amp Outdoor Power Center (50-Amp Generator)
