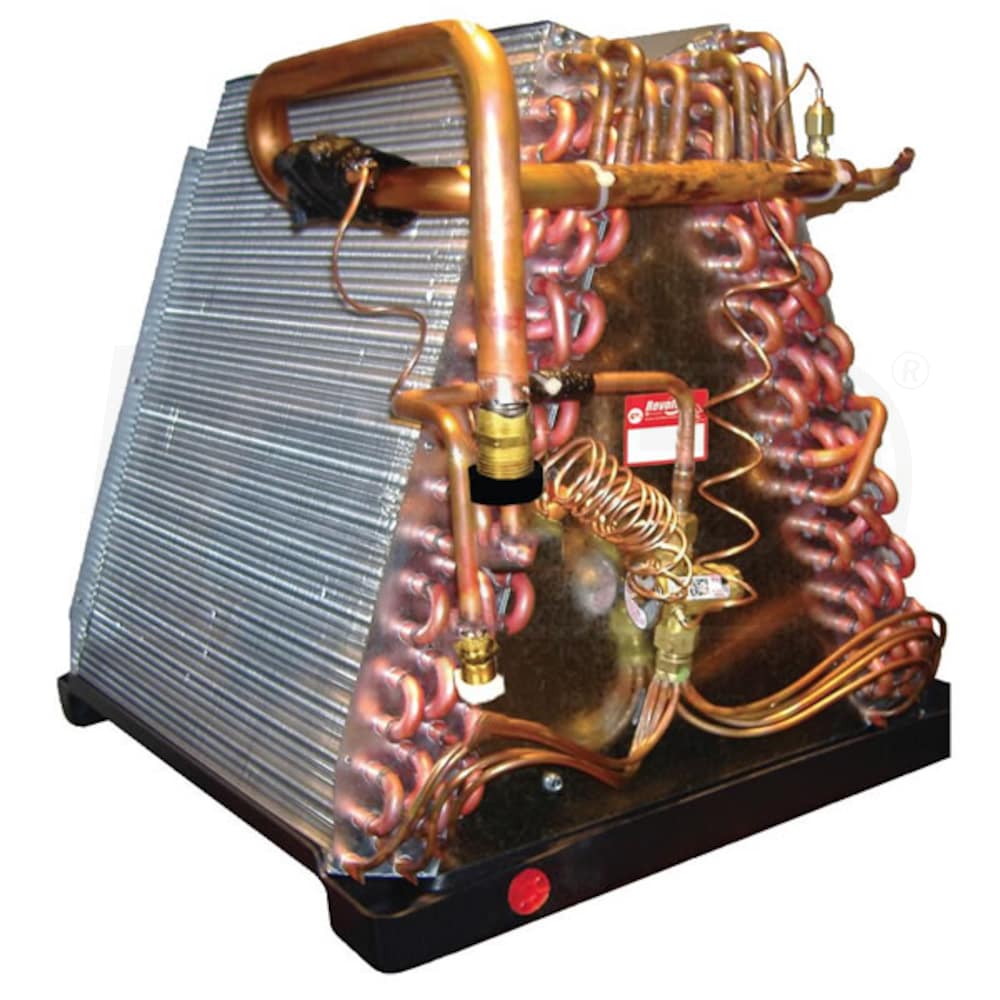

Revolv AccuCharge® - 4.0 Ton - Downflow A-Coil - Uncased

Model:

187848M4A

Write A Review
Not For Individual Sale
Continue Shopping With These Categories
Revolv AccuCharge® - 4.0 Ton - Downflow A-Coil - Uncased
Revolv AccuCharge® - 4.0 Ton - Downflow A-Coil - Uncased
Model: 187848M4A
Not For Individual Sale
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    No need to waste any more time calculating the correct refrigerant charge in your HVAC system. The AccuCharge® coils are designed to work with AccuCharge® condensers. They have a factory precise refrigerant charge and FitRight® fittings that provide an easy installation. The 187848M4A is compatible with not only air conditioners, but heat pumps as well. AccuCharge® coils are designed to be the coil of choice for new and existing upflow/downflow mobile home HVAC systems.
  • AccuCharge® with FitRight® Fittings
  • All AccuCharge® units come with a factory precise refrigerant charge and FitRight® fittings that provide an easy installation. The combination of the two are engineered for superior efficiency and reliability.
  • Factory Installed TXV Valve
  • The AccuCharge® coils come installed with a thermal expansion valve (TXV) that helps control the amount of refrigerant flow into the evaporator.
  • Mounted TXV Sensor Bulb
  • The TXV sensor bulb is what senses how much refrigerant to flow through the coil. In the AccuCharge® coils, it is mounted properly on the suction line for precise readings.
  • Failure Prevention
  • AccuCharge® coils have features to prevent premature failure of your coil. It has a built-in strainer to prevent debris from entering the coil. It also has a dry-type pan so that it doesn't hold standing water.
  • Installation Materials Included
  • The 187848M4A comes with a kit including a drain hose, fittings, and furnace cover plates for gas and oil furnaces.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

187848M4A
specs product image PID-82980
Overview
Product Category
Evaporator Coil
General Information
Type
Evaporator Coil
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Uncased
Style
A Coil
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 Tons
Cooling BTU
48000
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
19 1/2 Inches
Product Width
18 Inches
Product Depth
19 5/8 Inches
Product Weight
40 Pounds
Shipping Weight
50 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
