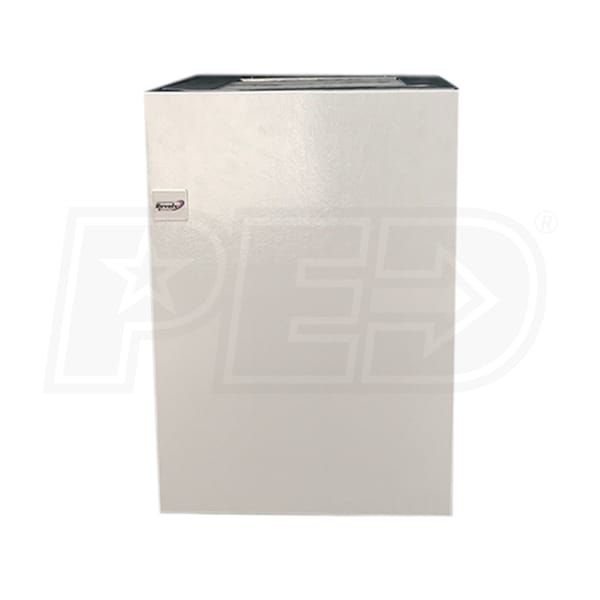

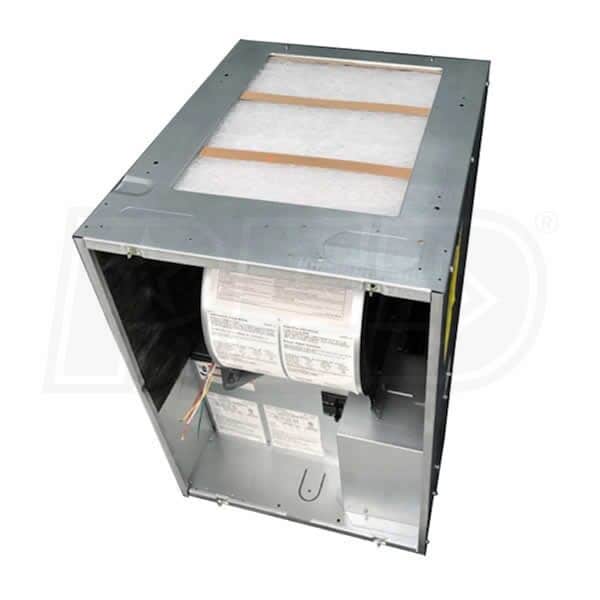

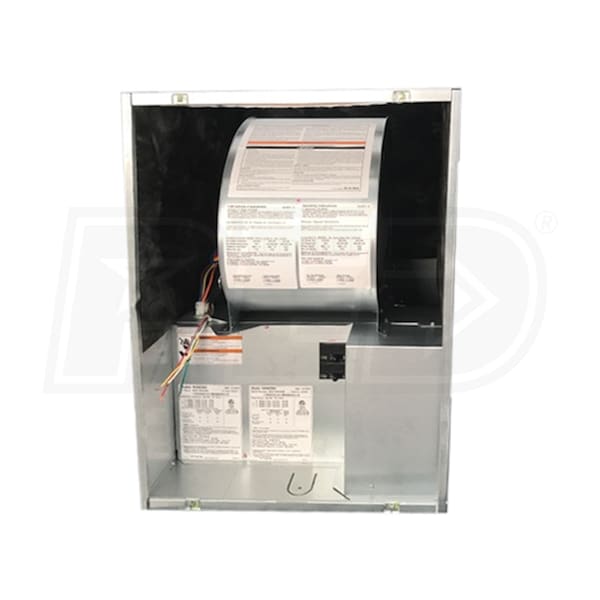

Revolv E7 - 53k BTU - Electric Furnace - Manufactured Home - 100% Efficiency - 15 kW - Multi-Position - Multi-Speed - No Coil Cabinet
Model:
E7EM-015
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Multi-Speed ECM Motor
- The E7EM energy efficient blower motor uses the lowest speed it can to deliver precise temperature control for your home while keeping utility bills to a minimum.
- Multi-Position Installation
- Revolv E7EM models are designed specifically to fit any installation. They can be used in both upflow and downflow systems making them the perfect fit for any home.
- Nichrome Heating Elements
- Revolv electric furnaces feature nichrome heating elements, designed to provide long lasting, efficient heating without breaking the bank.
- Multiple Cooling Choices
- E7EM models can be paired with either air conditioners or heat pumps and can handle up to a maximum of 4 tons of cooling.
- High Quality, Low Maintenance
- Features such as sealed bearings on the motors, reliable controllers, and a built-in circuit breakers means these units are made to last and provide uninterrupted comfort for years.
Revolv is dedicated to bringing efficient comfort to the manufactured and mobile home market. The E7EM-015 is a multi-directional electric furnace capable of providing 53,000 BTU of heating at 100% efficiency. Designed for easy installation in a variety of manufactured and modular homes, it enjoys a 0" required clearance to combustibles at the rear and sides and only 6" are required at the front of the unit. If you're struggling to effectively and safely heat your manufactured home, the E7EM-015 is a solution that you can believe in.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
E7EM-015
Overview
Product Category
Furnace
UPC
663132372614
General Information
Type
Electric Furnace
Product Line
E7EM
Product Category
Furnace
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Blower Motor Type
ECM Multi-Speed
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Downflow
Performance
Heating BTU
47000
Electric Heat Capacity
15 kW
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
68 Hz
Minimum Circuit Ampacity
72.5 Amps
Recommended Breaker Size
80 Amps
Dimensions
Product Height
29 Inches
Product Width
20 Inches
Product Depth
24 1/2 Inches
Shipping Weight
75 Pounds
