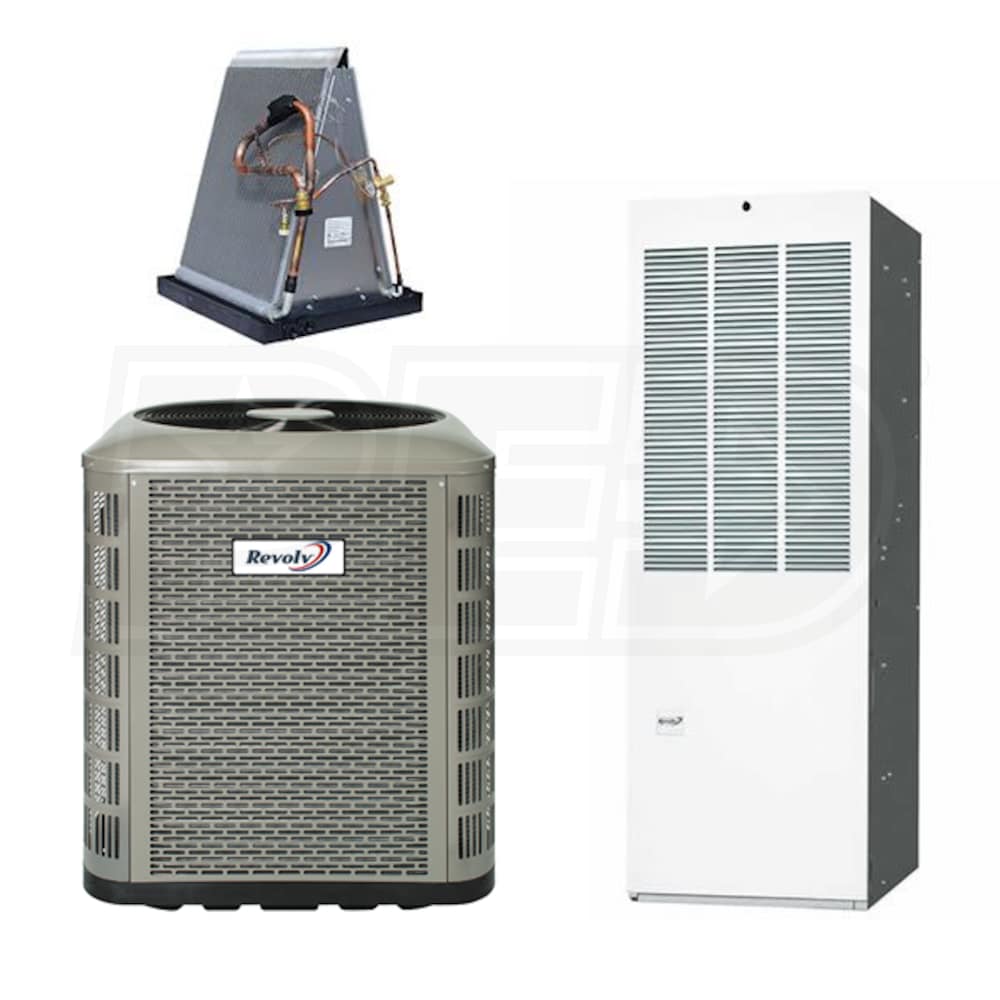

Revolv - 2.5 Ton Cooling - 53k BTU/Hr Heating - Heat Pump + Electric Furnace Kit - 14.0 SEER - 100% Efficiency - For Downflow Installation
Model:
RSHQ304RE915CD
+
Share This Product
Features
- AccuCharge® with FitRight® Fittings
- All AccuCharge® units come with a factory precise refrigerant charge and FitRight® fittings that provide an easy installation. The combination of the two are engineered for superior efficiency and reliability.
- Corrosion Resistant Finish
- The Revolv AccuCharge® air conditioners are made of a galvanized steel with a polyester urethane coat finish. They are then sprayed with a 950 hour salt finish that has a 50% better corrosion resistant rating than comparable units.
- Composite Base Pan
- A composite base pan is stronger and lighter than your standard steel base pan. Being composite, it absorbs sound better and is also corrosion resistant.
- High Pressure Switch
- The AccuCharge® heat pumps come with a high pressure switch that protects your unit against unsafe high system pressures. It has an auto-reset feature that prevents unnecessary service visits.
- Louvered Condenser Guard
- The AccuCharge® air conditioners have a durable metal guard that protects the coil from extreme weather or objects hitting it and damaging your unit.
- Nichrome Heating Elements
- Revolv electric furnaces feature nichrome heating elements, designed to provide long lasting, efficient heating without breaking the bank.
- Built in Coil Cabinet
- The Revolv RE9D models come with a coil cabinet built into the unit. This means they are ready for installation without the need to buy additional parts.
- Multi-Speed Fan
- The RE9 uses a four-speed motor for the blower, giving you excellent airflow that can be scaled to the size of your home.
- Factory Installed TXV Valve
- The AccuCharge® coils come installed with a thermal expansion valve (TXV) that helps control the amount of refrigerant flow into the evaporator.
- Mounted TXV Sensor Bulb
- The TXV sensor bulb is what senses how much refrigerant to flow through the coil. In the AccuCharge® coils, it is mounted properly on the suction line for precise readings.
- Failure Prevention
- AccuCharge® coils have features to prevent premature failure of your coil. It has a built-in strainer to prevent debris from entering the coil. It also has a dry-type pan so that it doesn't hold standing water.
- (1) Revolv AccuCharge® - 2.5 Ton - Heat Pump - Manufactured Home - 14.0 Nominal SEER - Single-Stage - R-410a Refrigerant (RSHQ304)
- (1) Revolv - 53k BTU - Electric Furnace - Manufactured Home - 100% Efficiency - 15 kW - Downflow - Multi-Speed - Includes Coil Cabinet (RE9D15C4)
- (1) Revolv AccuCharge® - 2.5 Ton - Upflow/Downflow Micro-Channel A-Coil - Uncased (C8QAMX30U-B)
Revolv is dedicated to bringing efficient comfort to the manufactured and mobile home market. The RSHQ304RE915CD combines a Revolv RSH heat pump with a RE9 electric furnace to provide a whole home comfort solution. Designed for easy installation in mobile and manufactured housing, these units are specifically designed to fit into tight spaces and operate with minimum combustion clearances. These systems also feature Revolv's AccuCharge® systems, to help streamline installation and simplify your home's heating and cooling.
Product Includes
Product Note
NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions. As of December 9th, 2022, we will no longer be selling 14 SEER and 16 SEER unitary products to the DOE Southern Region to comply with updated SEER2 Federal Regulations.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Revolv AccuCharge® - 2.5 Ton - Heat Pump - Manufactured Home - 14.0 Nominal SEER - Single-Stage - R-410a Refrigerant (RSHQ304)
- (1) Revolv - 53k BTU - Electric Furnace - Manufactured Home - 100% Efficiency - 15 kW - Downflow - Multi-Speed - Includes Coil Cabinet (RE9D15C4)
- (1) Revolv AccuCharge® - 2.5 Ton - Upflow/Downflow Micro-Channel A-Coil - Uncased (C8QAMX30U-B)
RSHQ304RE915CD
General Information
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide (Except CA)
Additional Model Numbers
RSH1430RE915CD, RSHQ304RE915CD
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Cooling Capacity
28000 BTU
Nominal Cooling Capacity
30000 BTU
Heating Capacity
53000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.5
HSPF
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
8.5
Efficiency
100 %
Dimensions
Product Weight
322 Pounds
Shipping Weight
339 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
RSHQ304
General Information
Type
Heat Pump Condenser
Product Line
AccuCharge
Product Category
Heat Pump
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Cooling BTU
30000
Heating Capacity
30000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.5
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
75 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
25 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
41 1/4 Inches
Product Width
31 3/4 Inches
Product Depth
31 3/4 Inches
Product Weight
189 Pounds
Shipping Weight
199 Pounds
Liquid Valve Connection Size
3/8 Inch
Suction Valve Connection Size
3/4 Inch
Certifications
Energy Star Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Overview
Product Category
Heat Pump
RE9D15C4
General Information
Type
Electric Furnace
Product Line
RE9
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Blower Motor Type
PSC Multi-Speed
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow
Performance
Heating BTU
53000
Electric Heat Capacity
15 kW
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
82 Amps
Recommended Breaker Size
90 Amps
Dimensions
Product Height
60 Inches
Product Width
20 Inches
Product Depth
24 29/48 Inches
Product Weight
112 Pounds
Shipping Weight
112 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
C8QAMX30U-B
General Information
Type
Evaporator Coil
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Uncased
Style
A Coil
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Cooling BTU
30000
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
18 Inches
Product Width
18 1/8 Inches
Product Depth
19 1/2 Inches
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Overview
Product Category
Evaporator Coil
