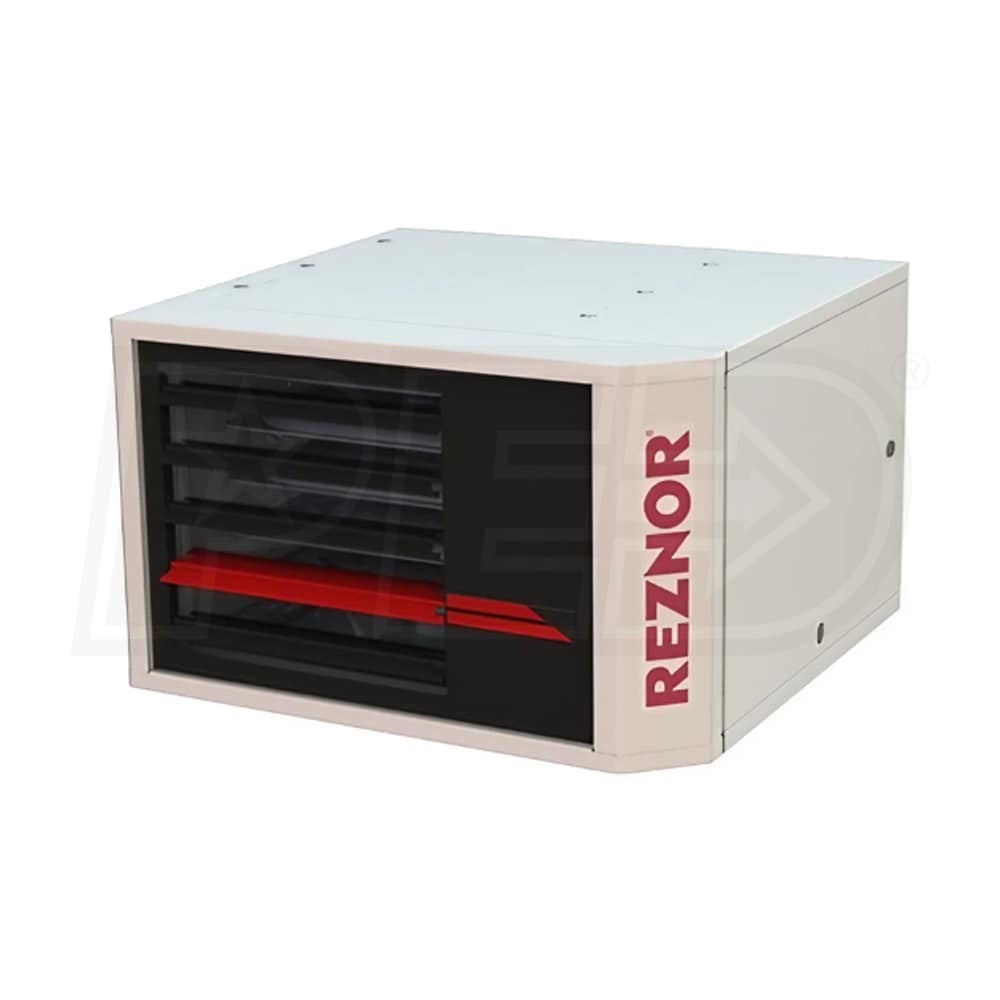

Reznor UDXC - 250,000 BTU - Power Vented Gas Fired Unit Heater - Low Static Axial Fan - NG - TCORE2® Heat Exchanger - LP Convertible
Model:
UDXC-250
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- TCORE2® Heat Exchanger
- The heat exchanger in the Reznor UDXC unit heater is constructed from titanium-stabilized, aluminized-steel for superior durability and thermal efficiency. This innovative design enhances the longevity of the heater and ensures optimal performance.
- Status-Indicating LED
- All UDXC unit heaters come with a convenient status-indicating LED, offering real-time updates on the unit's operating status. This LED helps users identify whether the heater is functioning properly or if maintenance or troubleshooting is required.
- Liquid Propane Convertible
- The Reznor UDXC-250 unit heater can be converted to liquid propane with the NG to LP conversion kit. (Sold Separately)
- Integrated Circuit Board
- The UDXC unit heater features an integrated circuit board with a seven-segment display for easy diagnostics and system monitoring. This display provides real-time feedback on the unit's status, making it simple to troubleshoot.
- Quiet Operation
- Equipped with a vibration and noise isolated fan and vent motors, the UDXC unit heater ensures quiet and smooth operation.
- Separated Combustion Convertible
- The UDXC unit heater can be field converted to use fresh air for combustion with the separated combustion kit. (Sold Separately)
- Certified Applications
- The Reznor UDXC-250 unit heater is certified for industrial/commercial applications such as hospitals, warehouses and schools.
Reznor UDXC gas fired unit heaters are great for space heating applications. These units are power vented to eliminate heat losses up the flue pipe. It features the TCORE2® titanium-stabilized, aluminized steel heat exchanger for durability and performance. With a modern design and low-noise operation, the UDXC unit heaters fit a variety of environments such as hospitals, warehouses and schools. UDXC unit heaters feature a two-tone black and white glossy, scratch-resistant paint scheme with clean rounded corners and edges with no visible screws or fasteners.
Product Note
All Reznor heaters come standard as natural gas units. An LP conversion kit is required for all heaters to be used with propane. These can be found under the "Recommended Accessories" tab.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
UDXC-250
General Information
Product Line
UDXC
Product Category
Unit Heater
Heat Exchanger Material
Aluminized Steel
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Power Vent
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Mount Type
Suspended
UPC
663132524938
Performance
Heating Capacity
207500 BTU
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
250000 BTU
Thermal Efficiency
83 %
Maximum Air Flow
3202 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Maximum Load
7.5 Amps
Dimensions
Primary Vent Pipe Diameter
5 Inches
Flue Connection Size
6 Inches
Gas Connection Size
3/4 Inch
Product Height
26 1/8 Inches
Product Width
38 3/16 Inches
Product Depth
48 7/16 Inches
Product Weight
223 Pounds
Shipping Weight
259 Pounds
Certifications
ANSI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
10 Years
