Rolair 5-HP 60-Gallon Single-Stage Air Compressor

Model:

V5160PT03X

Write A Review
$1,749.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 6-8 Weeks

Rolair 5-HP 60-Gallon Single-Stage Air Compressor
Rolair 5-HP 60-Gallon Single-Stage Air Compressor
Model: V5160PT03X
$1,749.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Single Stage 1-Phase

CFM

16.4

Tank Size

60

  • 5-HP 230V Single Phase Air Compressor
  • Easy to wire into your shop or garage

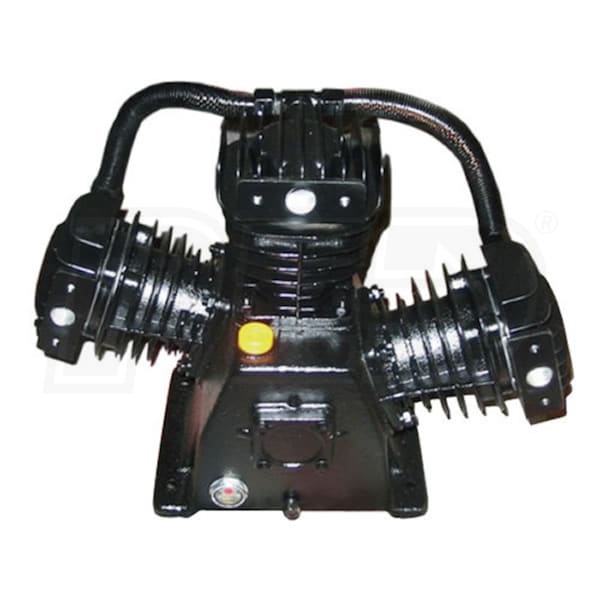

  • Single Stage, 1200 RPM Splash Lubricated Pump
  • 3 cast iron cylinders for durability
  • Aluminum head & crankcase for faster heat dissipation
  • Low RPMs ensure long life & trouble free performance
  • Open Drip Proof S1 Rated Motor
  • Rated at 3450 RPM and ODP runs cooler to prevent overheating
  • Intake Filter/Silencer with replaceable element reduces noise
  • Swedish Lammelar Reed Valves
  • High quality for best performance & reliability
  • Start/Stop Operation
  • Pressure switch can be set for 110-135 PSI settings
  • Automatic Unloading Device
  • Load-less starts save wear & tear on your unit
  • Easy-To-Read Pressure Gauge
  • Marked 0-200 PSI in 5lb. graduations
  • Totally Enclosed Steel Belt Guard
  • Protects the belt drive, and you
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

V5160PT03X
specs product image PID-9125
General Information
Product Category
Air Compressor - Stationary
Engine
HP
5
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
16.4
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
298 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
24 Inches
Product Width
20 Inches
Product Height
70 Inches
Power Type
Electric
UPC
662865002577

Reviews

(4)
Rolair V5160PT03X Reviews & Ratings
Verified Buyer
Verified Buyer
Excellent Machine For The Money
By Don Z.
Costa Mesa, California
Purchased 03/28/2021 |
Review Posted 04/19/2021
This Rolair air compressor is built to perform. The 5 horsepower 20.5 amp WEG motor has a 100% duty rating and the compressor easily keeps pace with my spray gun and glass bead cabinet. No problemo. +1 on liftgate service if this ships to a residential address. Worth every penny.

ACD should edit/ update the ad copy details for accuracy. The top platform for the motor and pump is now 30” long, not 24” long as stated. The crankcase now is cast iron - - only the cylinder heads are aluminum.
Don Z. Recommends This
Was this review helpful?
Expert Response
Hello Don, first and foremost thank you for your purchase of the Rolair 5-HP 60-Gallon Single-Stage Air Compressor. We appreciate you taking the time to provide us with your feedback. We will verify the features you mentioned in this review and update the site accordingly.
Dale, the Power Equipment Expert
Dale V.
Power Equipment Expert
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
High Quality, Durable, Reliable
Cons:
Packaging
Heavy Duty Unit
By C R.
Collingwood, Alabama
Review Posted 05/10/2020
Unit heavy duty, builds air pressure quickly. no instruction on wiring mdr3pressure switch, cheapest pressure gauge, drain valve installed. After startup 3 major air leaks found on fittings, drain valve, pressure switch connection. Pump oil drain also found to be too short. All items easily correctable with a little time and some more money. For the price, I would have expected these small items already corrected, overall a well-built machine.
C R. Recommends This
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
4/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
4/5
icon-review-marker
Pros:
Id Buy It Again
Cons:
Expensive
Verified Buyer
Verified Buyer
You Get What You Pay For.
By John D.
Peoria, Arizona
Purchased 03/10/2018 |
Review Posted 04/06/2018
Compressor arrived in perfect condition and the delivery man took it all the way into my shop. Runs as advertised and is more quiet than I thought it would be. Looks to be very well constructed. Worth the extra money to buy Rolair.
John D. Recommends This
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
4/5
icon-review-marker
Pros:
Easy To Use, Quiet, Fast, High Quality
Verified Buyer
Verified Buyer
Very Impressed So Far
By Stephen M.
Auburn, New York
Purchased 10/08/2017 |
Review Posted 11/01/2017
My compressor from ACD arrived in about a week. The truck driver was very helpful, definitely get the lift gate service! The compressor only had one scrape on the front of it, and I plan to fix that. After checking oil level, and wiring it, I gave it a workout with my pressure blaster. The compressor fills very quickly, recovers very quickly. It is moderately quiet, but I disagree with some reviewers on how quiet. Everything functioned exactly as it should have. I have zero complaints. This is a true 100% duty cycle compressor. The next comparable compressor did not list its duty cycle and after a quick email to Q I discovered theirs was only 70%. I went with Rolair and would recommend it based on my limited use so far. I plan on updating this review after I’ve had a chance to really put it through its paces.
Stephen M. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
4/5
icon-review-marker
Pros:
Features, High Quality, I'd Buy It Again
Cons:
I would have liked better instructions
