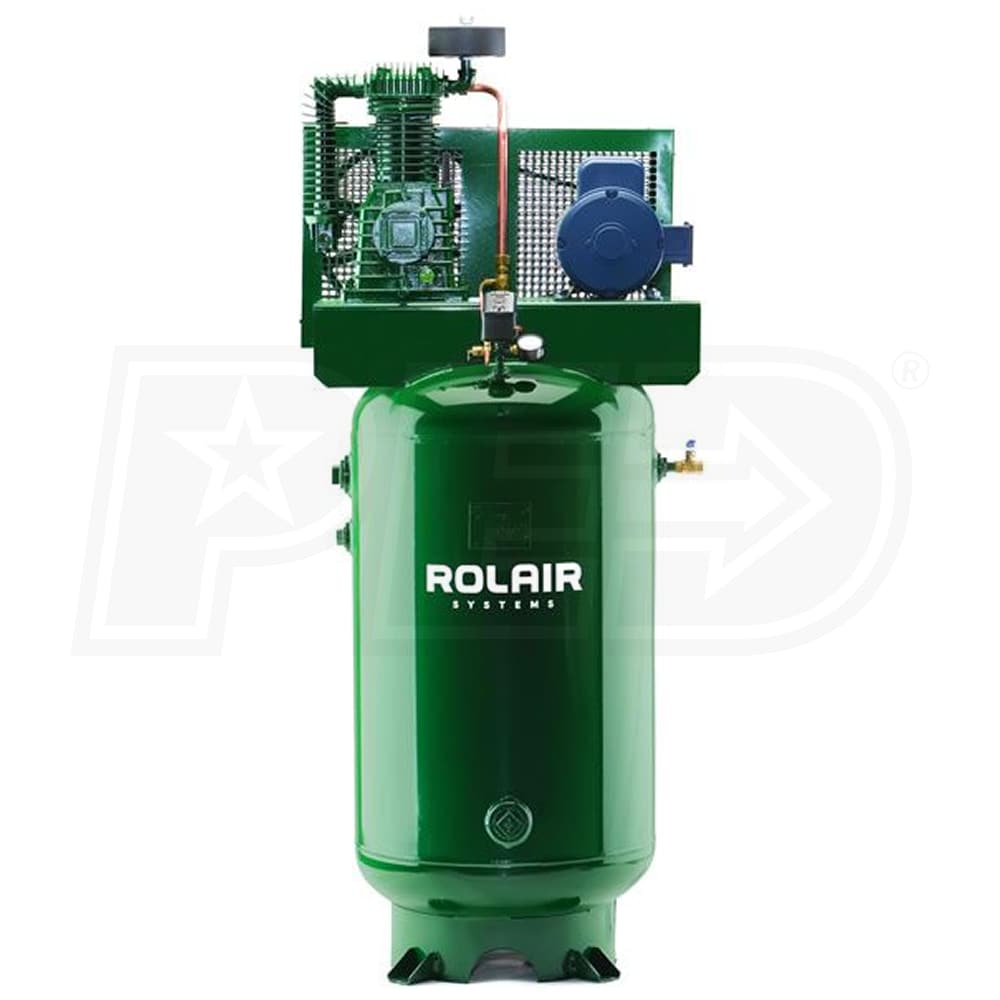

Rolair 5-HP 80-Gallon Two-Stage Air Compressor w/ Auto Tank Drain

Model:

V5180K30B-23

Write A Review
$2,999.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks

Rolair 5-HP 80-Gallon Two-Stage Air Compressor w/ Auto Tank Drain
Rolair 5-HP 80-Gallon Two-Stage Air Compressor w/ Auto Tank Drain
Model: V5180K30B-23
$2,999.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Voltage

208-230 Volt AC

Phase

1-Phase

CFM

18

Tank Size

80

  • 5-HP Air Compressor Runs On 208-230V Single Phase Power
  • Easy to wire into your shop or garage

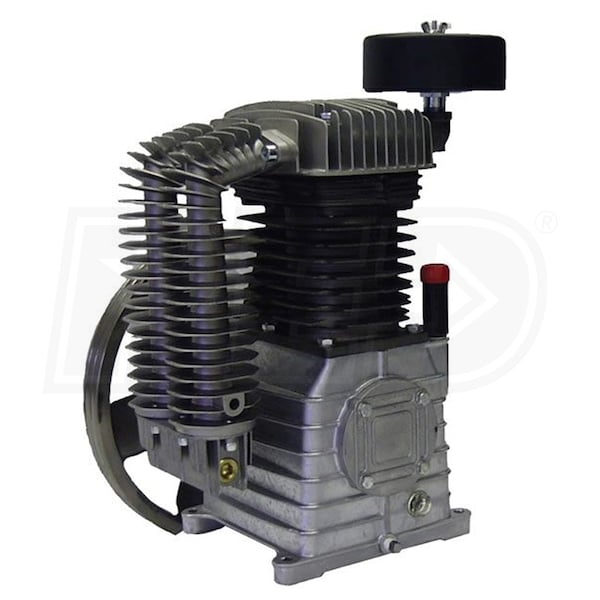

  • Two Stage, 900 RPM Splash Lubricated Pump
  • Two stage power for high demand applications
  • Cast iron cylinders for durability
  • Aluminum head & crankcase for faster heat dissipation
  • Swedish Lammelar Reed Valves
  • High quality for best performance & reliability
  • Start/Stop Operation
  • Pressure switch can be set for 145-175 PSI settings
  • Automatic Unloading Device
  • Load-less starts save wear & tear on your unit
  • Easy-To-Read Pressure Gauge
  • Marked 0-300 PSI in 5lb. graduations
  • Totally Enclosed Multiple V-Belt Steel Belt Guard
  • Protects the belt drive, and you
  • Intake Filter/Silencer
  • Replaceable element reduces noise
  • Magnetic Starter Included On This Model
  • No need to buy an additional starter
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

V5180K30B-23
specs product image PID-97426
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Amp Draw
25.6
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
18
CFM Rated @
175 PSI
Pump Material
Cast Iron w/ Aluminum Head
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
495 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
30 Inches
Product Width
24 Inches
Product Height
77 Inches
Power Type
Electric
UPC
662865521085
