Features
Grade
Commercial
Voltage
230 Volt AC
Phase
1-Phase
CFM
24.8
Tank Size
80
- 7.5 HP Air Compressor Runs On 230V 1-Phase Power
- Easy to wire into your shop or garage

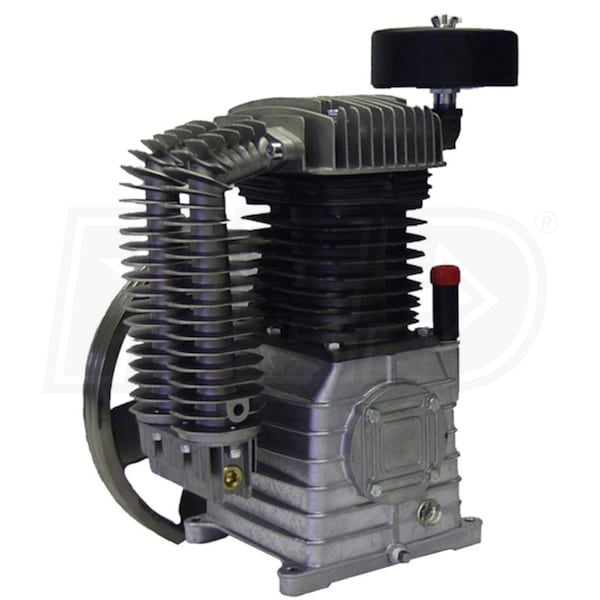

- Two Stage, 1250 RPM Splash Lubricated Pump
- Two stage power for high demand applications
- Cast iron cylinders for durability
- Aluminum head & crankcase for faster heat dissipation
- Swedish Lammelar Reed Valves
- High quality for best performance & reliability
- Start/Stop Operation
- Pressure switch can be set for 145-175 PSI settings
- Automatic Unloading Device
- Load-less starts save wear & tear on your unit
- Easy-To-Read Pressure Gauge
- Marked 0-300 PSI in 5lb. graduations
- Totally Enclosed Multiple V-Belt Steel Belt Guard
- Protects the belt drive, and you
- Intake Filter/Silencer
- Replaceable element reduces noise
- Magnetic Starter Included On This Model
- No need to buy an additional starter
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
V75180K30B-19
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
24.8
CFM Rated @
175 PSI
Pump Material
Cast Iron w/ Aluminum Head
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
530 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
30 Inches
Product Width
24 Inches
Product Height
77 Inches
Power Type
Electric
UPC
662865001280
Reviews
(2)
Rolair V75180K30B-19 Reviews & Ratings
Tripping Breaker
By Raymond v. H.
Chino Valley, Arizona
Review Posted 02/25/2016
Ever since we've had this unit when it starts up shuts its hits real hard it's kind of noisy and it has been performing very well we've had it for over a year but we use it very little. Since we're not in the shop very often. Now it's tripping the breaker after cycling on and off a few times.. I think they should come with isolating pads when you by the unit
Raymond v. H. Does Not Recommend This
Was this review helpful?
Expert Response
I'm sorry to hear you're having problems with your air compressor. This unit has a 1 year Factory Warranty warranty, so you may want to give the folks at Rolair a call at 920-349-3281 for warranty service in your area. Please have the serial number of your unit handy when you call them. I checked our files and didn't see where you purchased your unit from us, but Rolair may also ask for a copy of your invoice.
You may also want to check and make sure you haven't added more tools or appliances to the circuit the compressor is on, since you don't use it very often. The extra demand could contribute to your breaker tripping.
You may also want to check and make sure you haven't added more tools or appliances to the circuit the compressor is on, since you don't use it very often. The extra demand could contribute to your breaker tripping.
Dale V.
Power Equipment Expert
Rating Breakdown
4/5
3/5
4/5
4/5
Verified Buyer
RolAir Model #: V75180K30B-19
By Mark R.
DeLand, Florida
Purchased 09/10/2014 |
Review Posted 10/22/2014
I'm happy with the compressor... had two before and truly like Rol-Air as a company... Quality product and last a long time.
However, I'm not real happy with "Air Compressors Direct."
When the compressor arrived, I sent an e-mail to Air Compressors Direct asking for the recommended vibration isolators for this model mounted on a concrete slab. I received no response what-so-ever.
My guess is this company is more interested in sales and VERY LACKING on customer support.
You can buy all their compressors elsewhere for about the same money and get substantially better customer support.
Won't use Air Compressors Direct again.
However, I'm not real happy with "Air Compressors Direct."
When the compressor arrived, I sent an e-mail to Air Compressors Direct asking for the recommended vibration isolators for this model mounted on a concrete slab. I received no response what-so-ever.
My guess is this company is more interested in sales and VERY LACKING on customer support.
You can buy all their compressors elsewhere for about the same money and get substantially better customer support.
Won't use Air Compressors Direct again.
Mark R. Recommends This
Was this review helpful?
Expert Response
We're very sorry for the lack of response. It's possible our product expert never got the email. We'll have someone contact you shortly regarding your question.
Dale V.
Power Equipment Expert
Rating Breakdown
4/5
5/5
5/5
3/5
Pros:
Durable, Reliable, High Quality, I'd Buy It Again
Cons:
Expensive
