Rolair 2-HP 3.2-Gallon (Direct Drive) Cast-Iron Air Compressor w/ Tool Box

Model:

VT20TB

Write A Review
$441.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Dec 23rd
Shipping to60601

Rolair 2-HP 3.2-Gallon (Direct Drive) Cast-Iron Air Compressor w/ Tool Box
Rolair 2-HP 3.2-Gallon (Direct Drive) Cast-Iron Air Compressor w/ Tool Box
Model: VT20TB
$441.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Portable - Horizontal

CFM

4.2

Tank Size

3



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Low Speed 2 HP Motor
  • Runs at 1700 RPM, much quieter than other compressors
  • 100% Duty Cycle
  • S1-rated for continuous duty; low-amp draw for demanding work

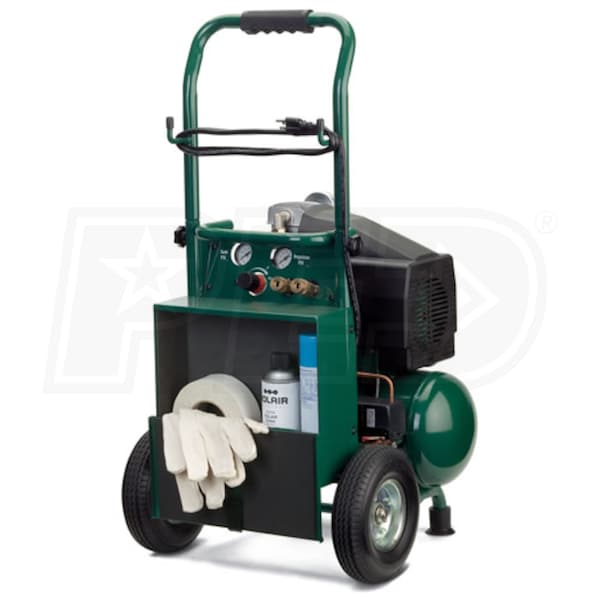

  • Dolly Cart With Tool Box
  • Balanced & easy to manuever; keeps supplies handy
  • User Friendly Control Panel
  • 2 quick-disconnect attachments lets 2 people work at once
  • Easy to read gauges for controlled air pressure; 4.2 CFM @ 90 PSI
  • Cast Iron Cylinder
  • Durable & reliable construction includes stainless reed valves
  • Splash lubricated for long life; includes initial 10 oz. oil fill
  • Industrial grade ball bearings for greater durability
  • Intake Filter Silencer
  • Helps keep compressor running quietly
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

VT20TB
specs product image PID-7262
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
115 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
79
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
13.7
Recommended Breaker
Consult Certified Electrician
Engine
HP
2
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
4.2
CFM Rated @
90 PSI
CFM @ 40 PSI
4.8
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
3 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
80 Pounds
Consumer Warranty
1 Year
Product Length
31 Inches
Product Width
21 Inches
Product Height
21 Inches
Power Type
Electric
UPC
662865003154
