Schluter KERDI-LINE - Linear Drain Channel Body - 72" - Center Drain - Grate Sold Separately
Model:
KL1V60E180
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Low Profile
- The low height of the Schluter-KERDI-LINE drain allows it to sit perfectly flush with laid tile, giving you a visually appealing, effective drainage system.
- Perfect for Intricate Tile Design
- The ability to install Schluter-KERDI-LINE along a wall allows you to use nearly the entire floor area of your shower as a tile canvas. Large format tile and intricate patterns are possible with no loss of drain functionality.
- Superior Corrosion Resistance
- The stainless steel used in the construction of Schluter-KERDI-LINE protects against corrosive substances in both the short and long term.

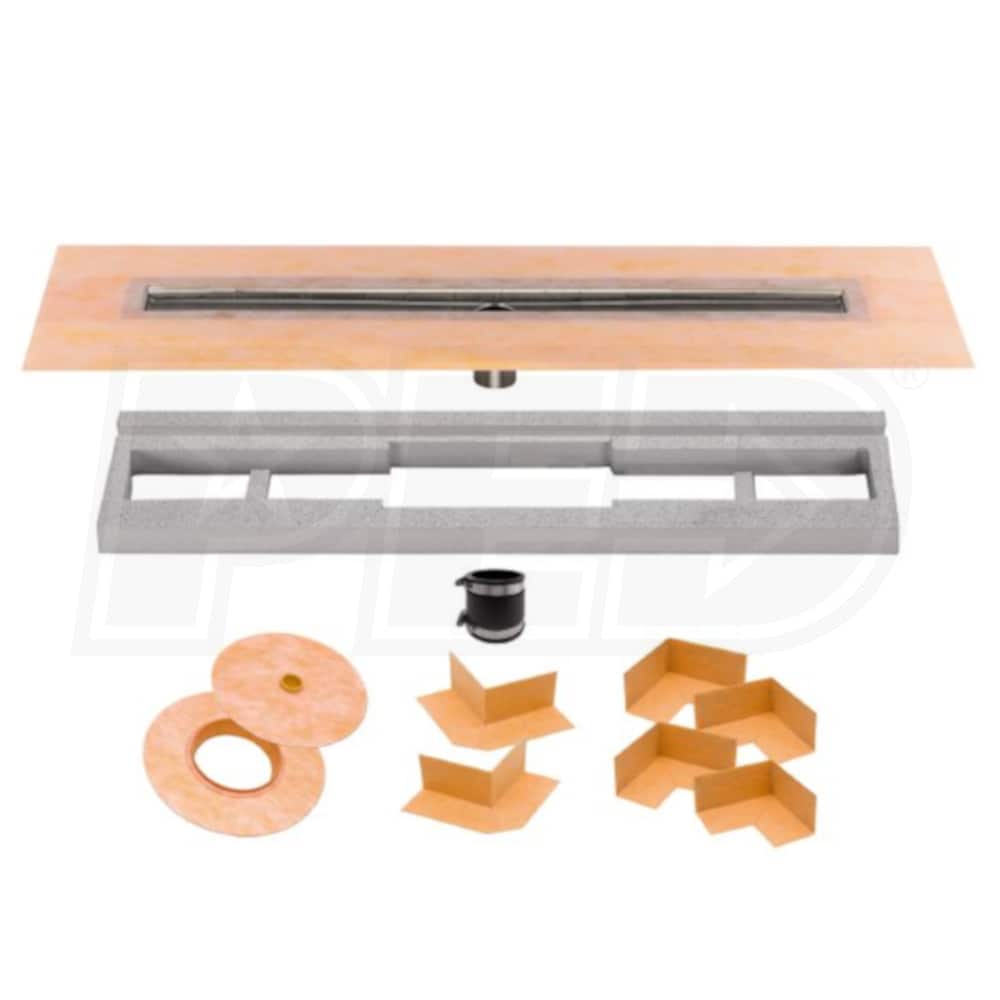

- Product Includes
- (1) Channel Body with Integrated KERDI collar
- (1) Channel Body Support
- (1) No-Hub Coupling
- (4) Inside and (2) Outside KERDI-KERECK Preformed Waterproofing Corners
- (1) KERDI-SEAL-PS Pipe Seal - 3/4"
- (1) KERDI-SEAL-MV Mixing Valve Seal - 4-1/2"
- (1) Strainer
Schluter-KERDI-LINE is a low-profile linear floor drain that can be installed adjacent to walls or at intermediate locations in showers, wet rooms, and other drainage applications. The drain is specifically designed for bonded waterproofing assemblies and as such can be installed in a floor with a single slope. This allows for the use of large scale, intricate tile design even on shower flooring. The KL1V60E180 is the channel body for the KERDI-LINE drain and can fit a variety of KERDI-LINE grate kits (sold separately).
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov
Specifications
KL1V60E180
Overview
Product Category
Shower and Tile Solutions
General Information
Type
Linear Drain Shower Systems
Product Line
KERDI
Product Sub-line
LINE
Product Category
Shower and Tile Solutions
Drain Location
Center
Material
Stainless Steel
Dimensions
Drain Outlet Diameter
2 Inches
Product Height
15/16 Inch
Product Width
4 Inches
Product Length
74 Inches
Product Weight
6.59 Pounds
Shipping Weight
11.8 Pounds
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
