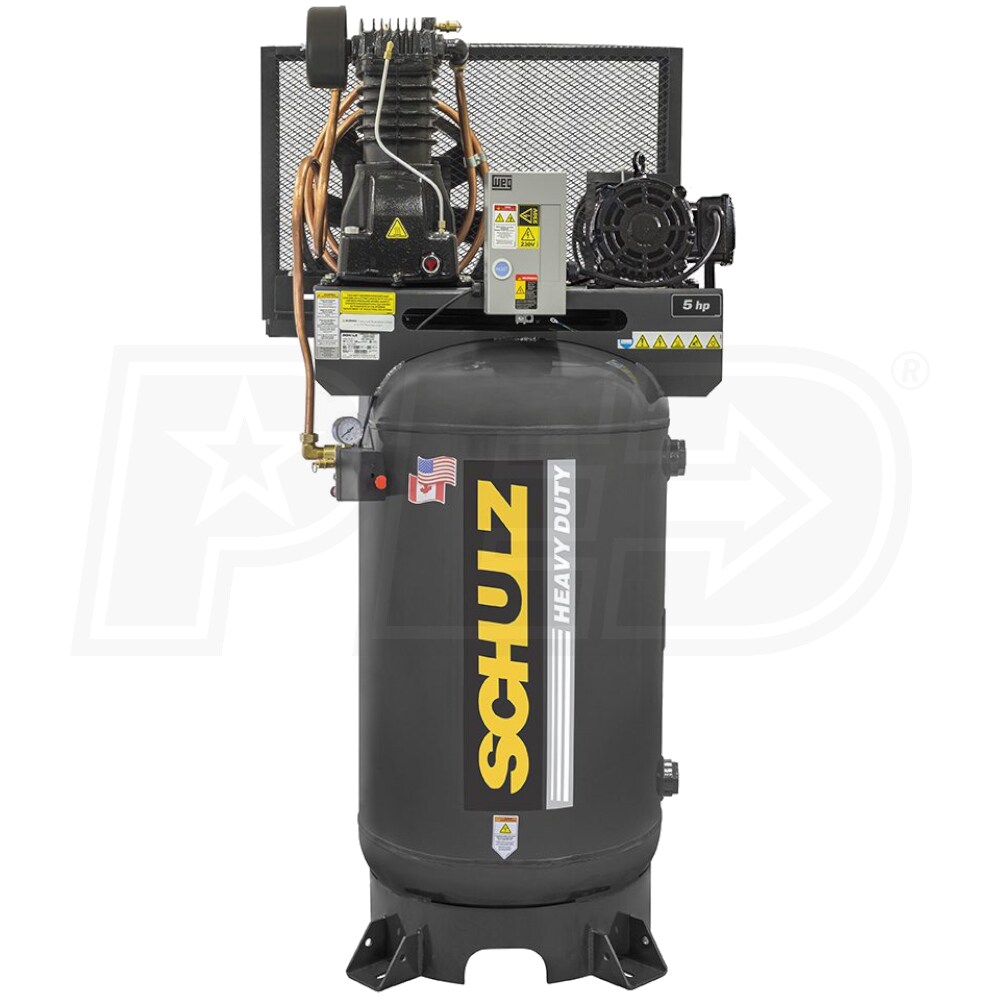

Schulz L-Series 5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)
Model:
580VL20X-1
+
Share This Product
Similar Products
$3,379.00
$999.00
$8,647.28
$2,397.00
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Optional Accessories
7
Model: 21999-0177
$109.80
In-Stock
$66.99
Only 5 In-Stock
$288.00
Only 4 In-Stock
Model: SMH30-UP
$1,651.00
Only 2 In-Stock
Model: DXCM024-0344
$200.99
Factory-Direct
$105.00
Factory-Direct
Model: 018-0060CT
$14.00
Factory-Direct
Features
Grade
Contractor
Voltage
230 Volt AC
Phase
1-Phase
CFM
15.8
Tank Size
80
- WEG Electric Motor
- 5 HP motor reliably handles commercial duty demands
- L-Series Cast Iron Pump
- Low RPM pump runs quieter & cooler; lasts longer
- Deeper cylinder fins for additional heat dissipation
- Oversized Main Bearings
- Sturdy & reliable
- Swedish Steel Valves
- Quality components contribute to pump efficiency
- CNC Machined Components
- Accurate fit produces top-notch performance
- Notched Belts Standard
- Enclosed belt guard protects the belt & operators
- Powder Coated Components
- Resist rust & corrosion
- 1 Year Unit With 2 Year Pump Warranty
- Protects your investment
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
580VL20X-1
General Information
Product Category
Air Compressor - Stationary
Engine
HP
5
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
15.8
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
515 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
32 Inches
Product Width
25 Inches
Product Height
78 Inches
Power Type
Electric
Reviews
(3)
Schulz 580VL20X-1 Reviews & Ratings
Miss Leading Photos
By Jimmy J.
Oklahoma
Review Posted 12/26/2024
The photo shows the 2nd stage piping curled is circles to promote cooling, not how it comes. It is a single/straight shot pipe, also shows a heavy duty WEG motor, comes with a lower end light duty model.
Was this review helpful?
Expert Response
First and foremost, thank you for your purchase. We appreciate you taking the time to provide us with your feedback and certainly understand your aggravation. Your review will be forwarded to the manufacturer, informing them of the situation.
We appreciate your business and apologize for any inconvenience.
We appreciate your business and apologize for any inconvenience.
Dale V.
Power Equipment Expert
Rating Breakdown
4/5
3/5
4/5
4/5
Decent For The Price
By Austin T.
Texas
Purchased 03/21/2024 |
Review Posted 12/26/2024
I got it one sale, thankfully.. I had issues with the first compressor, but Schulz did warranty all the issues. I just had to take it completely apart to put the new parts on, kind of annoying on a brand new compressor. After the repairs were done, it has been going strong for months now.
It is a higher rpm compressor/3500rpm, so it is a little more noisy then some.
The WEG motor is one of lower end models, not a commercial use/farm use model that some other brands come with, even with a fan blowing on the motor, it will trip the thermal switch fairly easy running a sand blast cabinet. I take breaks / don't let it run continuously. I never let the pump or electric motor get over 140F / still able to hold my hand on them, but it will still trip the thermal switch time to time. I did a load/voltage drop test on my building wiring and no issues on that end, the electric motor is just not up to the task of working that much l guess. Eventually I'll upgrade the motor.
I like the color of the tank and it has a quality paint job.
It is a higher rpm compressor/3500rpm, so it is a little more noisy then some.
The WEG motor is one of lower end models, not a commercial use/farm use model that some other brands come with, even with a fan blowing on the motor, it will trip the thermal switch fairly easy running a sand blast cabinet. I take breaks / don't let it run continuously. I never let the pump or electric motor get over 140F / still able to hold my hand on them, but it will still trip the thermal switch time to time. I did a load/voltage drop test on my building wiring and no issues on that end, the electric motor is just not up to the task of working that much l guess. Eventually I'll upgrade the motor.
I like the color of the tank and it has a quality paint job.
Was this review helpful?
Rating Breakdown
4/5
3/5
4/5
4/5
Pros:
Price
Schulz Compressor
By Thomas K
South Carolina
Purchased 08/06/2023 |
Review Posted 11/05/2023
Great product so far. I've had Shultz stuff before and the Tank went out before the compressor did. Highly recommended product
Thomas K Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use
Cons:
Expensive
