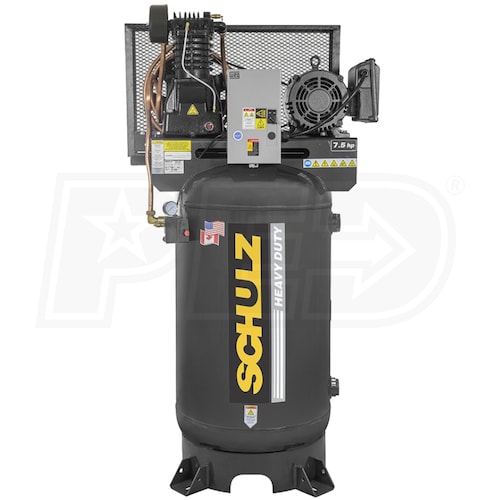

Schulz L-Series 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)
Model:
7580VL30X-1
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Optional Accessories
7
Model: 21999-0177
$109.80
In-Stock
$66.99
In-Stock
$288.00
Only 2 In-Stock
Model: SMH40-UP
$1,623.20
Only 3 In-Stock
$150.62
Factory-Direct
Model: DXCM024-0344
$200.99
Factory-Direct
Model: 018-0060CT
$14.00
Factory-Direct
Features
Grade
Contractor
Voltage
230 Volt AC
Phase
1-Phase
CFM
21.6
Tank Size
80
- WEG Electric Motor
- 7.5 HP motor reliably handles commercial duty demands
- L-Series Cast Iron Pump
- Low RPM pump is quieter, runs cooler & lasts longer
- Deeper cylinder fins for additional heat dissipation
- Oversized Main Bearings
- Sturdy & reliable
- Swedish Steel Valves
- Quality components contribute to pump efficiency
- CNC Machined Components
- Accurate fit produces top-notch performance
- Notched Belts Standard
- Enclosed belt guard protects the belt & operators
- Powder Coated Components
- Resist rust & corrosion
- 1 Year Unit With 2 Year Pump Warranty
- Protects your investment
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
7580VL30X-1
General Information
Product Category
Air Compressor - Stationary
Engine
HP
7.5
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
21.6
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
600 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
33.8 Inches
Product Width
25.2 Inches
Product Height
78.7 Inches
Power Type
Electric
Reviews
(11)
Schulz 7580VL30X-1 Reviews & Ratings
Customer Rating
4.64
(11 Ratings)
5
(8)
(8)4(2)
(2)3(1)
(1)2(0)
(0)1(0)
(0)
Awesome Price
By Marcelo D.
Framingham, Massachusetts
Purchased 04/07/2022 |
Review Posted 05/03/2022
Received the compressor in 2 weeks, very reasonable price.
Marcelo D. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Price, Quiet, Id Buy It Again, High Quality
GOOD NEWS
By John N.
Morris, Illinois
Purchased 04/03/2022 |
Review Posted 04/28/2022
Compressor shipped well and packaged well. Runs great and air recovery times are good. It will keep up with production. Noise level is not bad and moisture level is low due to running cooler and in line water in filters is not bad but are required. The only issue I have encountered is you have to kneel down and reach under the compressor to reach the drain petcock. I would advise adding an elbow and 1/4 inch extension to bring the petcock out past the tank for easier access to drain the tank. All and all I am satisfied with the unit and the cost. Thanks for a good American product.
John N. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Price, Id Buy It Again, High Quality, Fast
Leaking Air
By Earnie
Pembroke, North Carolina
Purchased 04/08/2022 |
Review Posted 04/14/2022
The 3/4 fitting on the tank side was leaking on the tank side found this out after I had all my line plumbed now I'm cutting pipe and taking the part off, you think on a 2300$ compressor they pay attention to detail if wasn't so big I would send back
Earnie Recommends This
Was this review helpful?
Expert Response
First and foremost thank you for your purchase. We appreciate you taking the time to provide us with your feedback and we can certainly understand your aggravation. We will forward your review to the manufacturer so they are aware of the situation.
We appreciate your business and apologize for any inconvenience.
We appreciate your business and apologize for any inconvenience.
Dale V.
Power Equipment Expert
Rating Breakdown
4/5
4/5
4/5
4/5
Fantastic Product . I Run It With Many Different Tools
By Rob U.
Vandergrift, Pennsylvania
Purchased 03/09/2022 |
Review Posted 04/02/2022
It works great.
Rob U. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Price, Durable, Quiet, Id Buy It Again
Cons:
Heavy
Nice Compressor But Flywheel Came Off
By Pat T.
Southfield, Michigan
Purchased 11/01/2021 |
Review Posted 01/22/2022
Works great but after about 4 hours of use the pump fly wheel pulley nut loosened up and the fly wleel pulley came off the pump shaft. cleaned it up and used lock tight on the nut and so far it has been fine.
Pat T. Recommends This
Was this review helpful?
Rating Breakdown
5/5
4/5
4/5
4/5
Pros:
Price, Durable, Quiet, Id Buy It Again
Better Than Expected
By Dave G.
Brighton, Colorado
Purchased 01/20/2021 |
Review Posted 02/18/2021
Although I am a home auto hobbyist I needed a larger compressor than my 25 year old Craftsman 33 gallon could provide. I feel this would be the last compressor I would ever need. My associate was helpful and actually saved me over $700.00 by sizing this one over the one I had originally picked out. It is 725 pounds shipping weight so plan accordingly. I actually used my engine hoist with a little bracing to move it and set it in place.
Dave G. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
High Quality, Price, Exceeded Expectations
Great Compressor
By Mike H.
Phoenix, Arizona
Purchased 11/19/2020 |
Review Posted 01/26/2021
A good value for the money. Had an issue with the on/off switch but called tech support and they helped troubleshoot the issue and sent us a new switch. Also helped us on the phone with the actual replacement and wiring.
Mike H. Recommends This
Was this review helpful?
Rating Breakdown
5/5
4/5
5/5
5/5
Pros:
Features, Price, Id Buy It Again
Great Customer Sevice All Around!
By Corey B.
Rolla, Missouri
Purchased 06/18/2019 |
Review Posted 07/12/2019
I would definitely recommend this air compressor based on the air compressordirect.com customer service and Schulz customer service alone. The first one we received was damaged when we received it so we refused shipment. We called aircompressorsdirect.com immediately and they placed an order for a new compressor while I was on the phone. No hassle what so ever. Schulz also called us and expressed their apologies and said they were shipping us another one immediately. We received the new air compressor faster than the original one I do believe it was in about 2 days. We had a bit of an issue with the breaker box during the install and called Schulz. They shipped us a new box that day and we received it with a few days. They walked us through the wiring over the phone and now it's running great!
Corey B. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Fast, High Quality, I'd Buy It Again, Schulz Customer Service
Cons:
Bad Instructions
Awesome
By Eric S.
Two harbors, Minnesota
Purchased 03/22/2017 |
Review Posted 06/01/2017
Great compressor. Heavy duty without a lot of noise.
Eric S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Durable, Quiet, Exceeded Expectations, High Quality
Schultz Compressor
By Don U.
HARRISBURG, Pennsylvania
Purchased 02/23/2015 |
Review Posted 04/07/2015
Nice compressor, does the job for all your needs. Quiet running.
Don U. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Product Q&A
(1)
Product Questions
Answered by Melissa, the Air Compressor Expert
What size breaker do I need?
Bob L.
from New Hampshire
November 14, 2019
