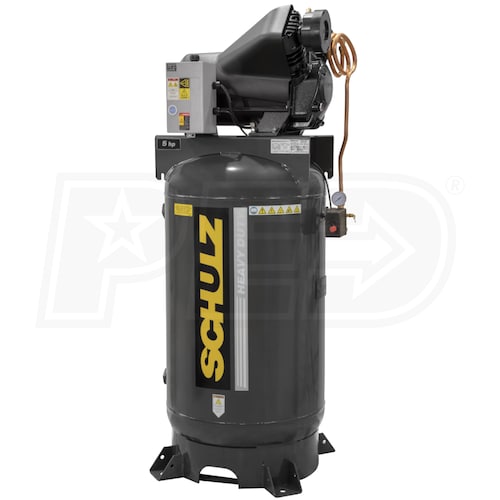

Schulz Audaz MCSV - 5-HP 80-Gallon Two-Stage Direct Coupling Air Compressor (230V 3-Phase)
Model:
932.9363-0
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Voltage
230 Volt AC
Phase
3-Phase
CFM
14.2
Tank Size
80
- Schulz Audaz MCSZ 5-HP Direct Coupling Air Compressor
- Ideal for small repair, tool, woodwork and auto repair shops
- IC-TECH® Patented Technology
- Integrated connection between high efficiency stages
- Direct Coupling Design - 20% LESS ENERGY CONSUMPTION
- Integrated pump and motor reduces energy loss
- Higher lubrication capacity in the moving parts
- Forced-Flow Air Cooling System
- Plastic motor/pump cover increases cooling efficiency
- Reduces operating temps for longer service life
- No Belt, Flywheel or Pulley
- Allows for safer operation
- Longer Oil Life For Less Maintenance
- Up to 300 hours between oil changes
- WEG Electric Motor (230V - 3 Phase)
- 5 HP motor reliably handles commercial duty demands

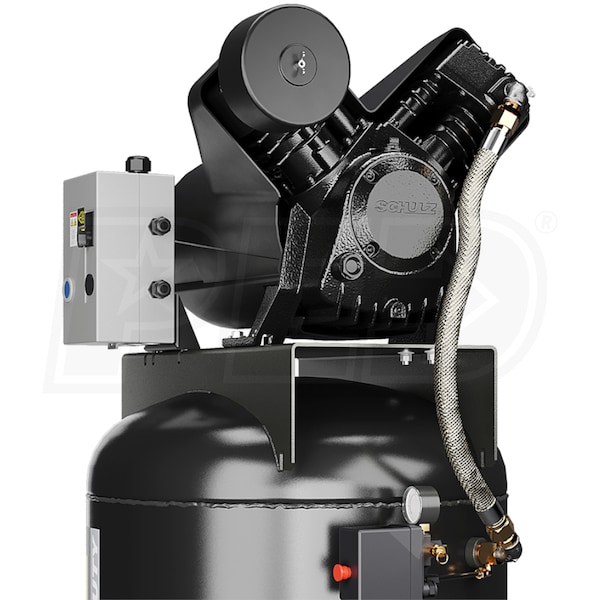

- Cast Iron Two-Stage Pump
- Runs cooler, lasts longer due to the space between each cylinder
- Deeper cylinder fins for additional heat dissipation
- 80-Gallon ASME Coded Vertical Air Receiver
- Includes manual tank drain
- Swedish Steel Valves & CNC Machined Components
- Quality components contribute to pump efficiency
- Accurate fit produces top-notch performance
- Powder Coated Components
- Resist rust & corrosion
- 2-Year Pump & 1-Year Unit Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
932.9363-0
General Information
Product Category
Air Compressor - Stationary
Engine
HP
5
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
14.2
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
480 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
24 Inches
Product Width
28 Inches
Product Height
67 Inches
Power Type
Electric
UPC
7896166493861
