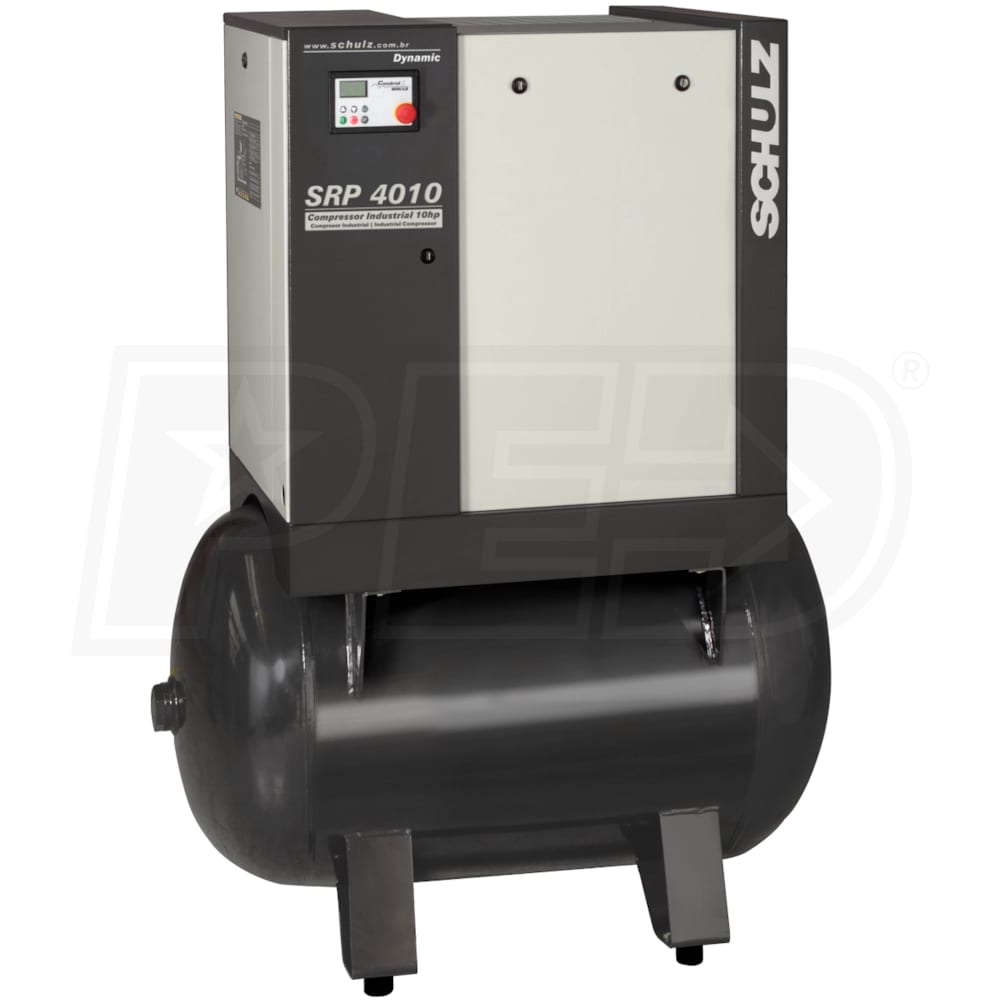

Schulz SRP 4010 Dynamic - 10-HP 120-Gallon Rotary Screw Air Compressor (208-230V 3-Phase)

Model:

970.3902-0

Write A Review
$8,267.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Schulz SRP 4010 Dynamic - 10-HP 120-Gallon Rotary Screw Air Compressor (208-230V 3-Phase)
Schulz SRP 4010 Dynamic - 10-HP 120-Gallon Rotary Screw Air Compressor (208-230V 3-Phase)
Model: 970.3902-0
$8,267.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208-230 Volt AC

Phase

3-Phase

CFM

35

Tank Size

120

  • SRP 4010 Dynamic 10-HP 120-Gallon Rotary Screw Compressor (208-230V 3-Phase)
  • Combines technology and experience to generate efficiency and productivity
  • Synonymous with versatility for applications requiring high performance
  • 2-In-1 System - Compressor & Receiver
  • Tank-mounted design allows for a compact foot print
  • Continuous 100% Duty Cycle
  • Runs your application efficiently 24/7
  • Rotary Air End
  • 35 CFM @ 125 PSI (125 Max PSI); 100% Duty Cycle
  • Oil-injected, belt-driven design for efficient operation
  • 10-HP TEFC IP55 Electric Motor (208-230V 3-Phase)
  • Provides an efficient and reliable power source
  • Automatic starters with phase and sequence failure detection
  • 24V Microprocessor Controller
  • Easily adjustable parameters of operation
  • Provides constant reading for simple monitoring
  • Helps simplify troubleshooting compressor issues
  • 120-Gallon Horizontal Air Receiver (ASME Certified)
  • Ensures maximum safety during operation
  • Sound Attenuated Cabinet
  • Reduces noise level to 69 dB(A)
  • Can operate in ambient temperatures up to 113 °F,
  • 12-Month Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

970.3902-0
specs product image PID-145797
General Information
Product Category
Air Compressor - Stationary
Engine
HP
10
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
35
CFM Rated @
125 PSI
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Overview
Product Category
Air Compressor - Stationary
Weight
613 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
58.5 Inches
Product Depth
27.6 Inches
Product Height
39.8 Inches
Power Type
Electric
UPC
7909480019744
