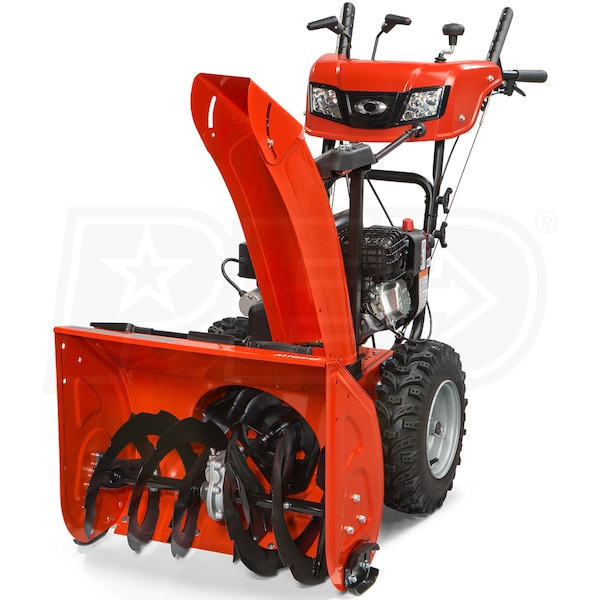

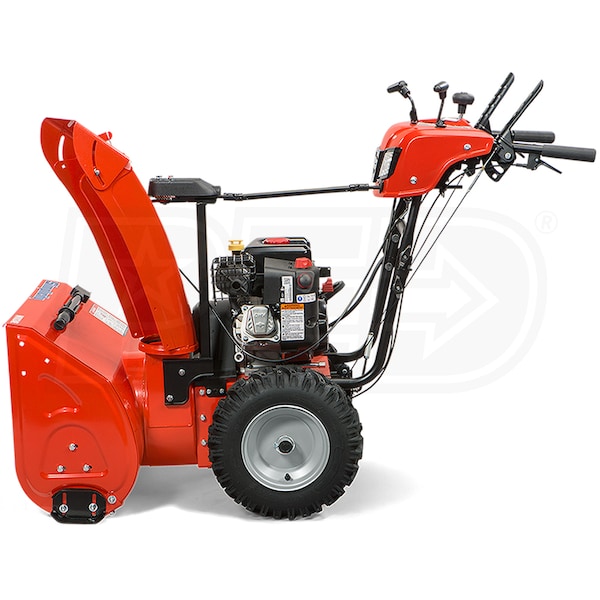

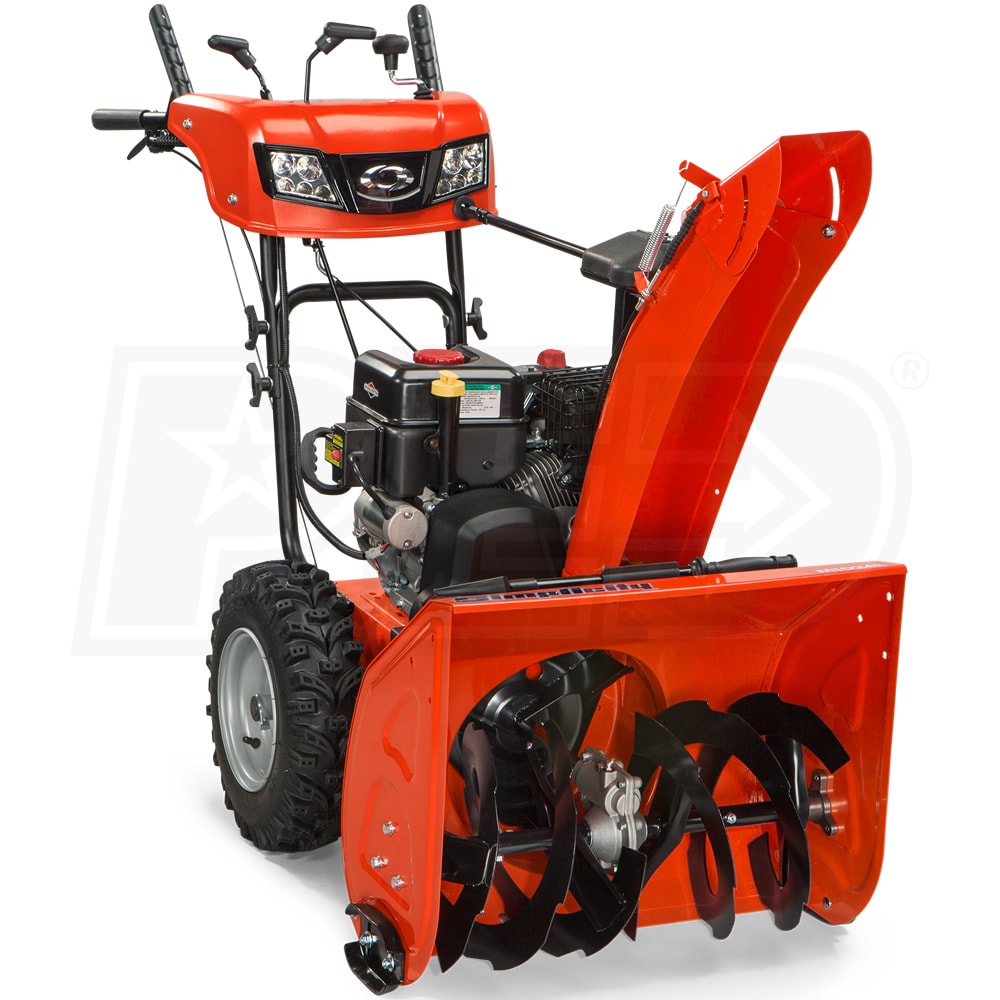

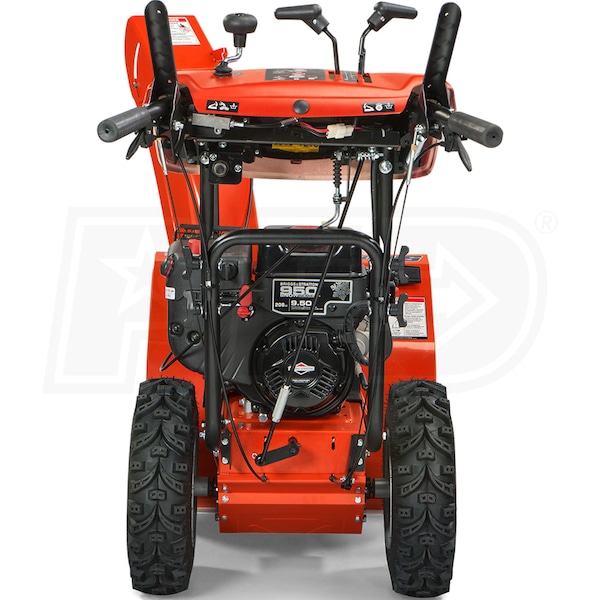

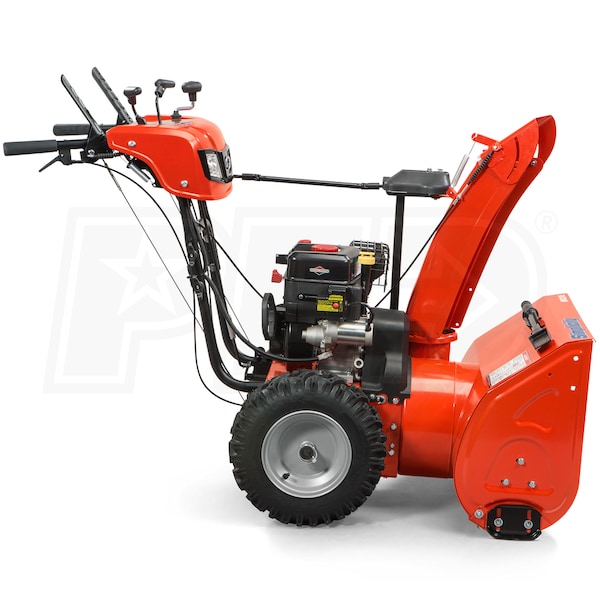

Simplicity M1024E (24") 208cc Deluxe Two-Stage Snow Blower w/ Electric Start

Model:

1696811

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Simplicity M1024E (24
Simplicity M1024E (24") 208cc Deluxe Two-Stage Snow Blower w/ Electric Start
Model: 1696811
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • 208cc Briggs & Stratton 950 4-Cycle Snow Series OHV Engine
  • Proven to withstand the toughest winter conditions
  • Specially designed covers for added protection in cold weather
  • 110-Volt Electric Start With Recoil Backup
  • Push button electric start makes starting quick and easy
  • Built To Last
  • Steel frame, chute and auger take on snow and ice with ease
  • Friction-Disc Drive Transmission
  • Dual-trigger steering releases either wheel to make turning easy
  • Free Hand™ Control
  • Easily adjust through all six speeds and two reverse
  • Drive with one hand while adjusting the deflector direction with the other
  • Dash-Mounted Chute Controls
  • Change chute direction with a quick turn of the crank
  • Deflector easily adjusts the height and distance of throw
  • Comfortable Operation
  • Heated hand grips keep your hands warm in the coldest weather
  • Duel LED headlights provide improved visibility
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

1696811
specs product image PID-77894
Engine
Engine Brand
Briggs & Stratton Snow Series
Engine Type
4-Cycle OHV
CC
208 CCs
Starting System
120-Volt Electric /w Recoil
Fuel Tank
0.8 Gallons
Torque
9.5 lbs
Auger Housing / Chute Control
Stage Type
Two-Stage
Auger Diameter
12 Inches
Profile
Steel 3-Blade
Auger Material
Notched Steel
Chute Material
Steel
Chute Rotation
3.5x Crank
Turning Radius
200 degrees
Max Throwing Distance
40 Feet
Clearing Width
24 Inches
Intake Height
20 Inches
Drive System
Drive
Friction Disc
Steering
Handle-Mounted Triggers
Gear Case
Aluminum
Reverse Speeds
2 Reverse
Tire Size
16" x 5"
Forward Speeds
6 Forward
Options
Drift Cutters
Sold Separately
Front Weights
Sold Separately
Hand Warmers
Yes
Headlight Type
LED
Interlocking Controls
Yes
Remote Deflector Controls
Yes
Skid Shoes
Included - Reversible
Overview
Weight
225 Pounds
Consumer Warranty
3 Years
Commercial Warranty
90 Days
Product Length
58 Inches
Product Width
26 Inches
Product Height
44 Inches
UPC
047282113622
