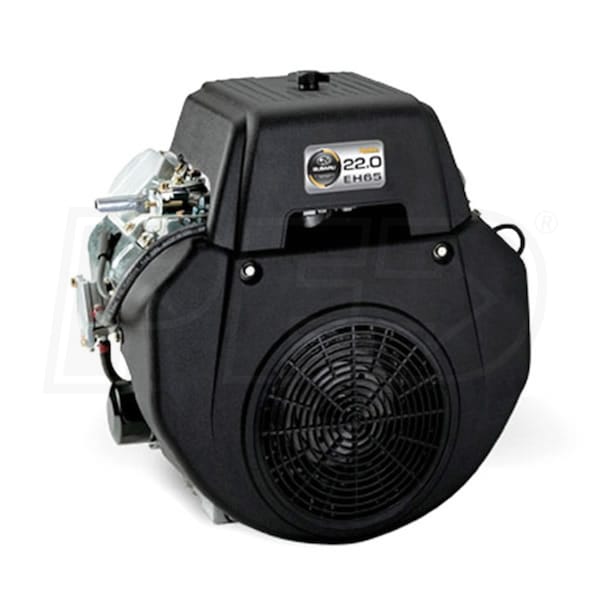

Subaru EH65 653cc 22HP Electric Start Horizontal Engine, 30 Amp Charging, 1" x 2.9" Crankshaft, 1/4" Keyway Tapped 7/16-20

Model:

EH650DB5440

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Subaru EH65 653cc 22HP Electric Start Horizontal Engine, 30 Amp Charging, 1
Subaru EH65 653cc 22HP Electric Start Horizontal Engine, 30 Amp Charging, 1" x 2.9" Crankshaft, 1/4" Keyway Tapped 7/16-20
Model: EH650DB5440
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • Model # EH650DB5440- 30 Amp Charging, 1" x 2.9" Crankshaft W/ 1/4" Keyway & Tapped 7/16-20
  • Subaru EH65 V-Twin OHV Industrial Engine
  • Delivers smooth, reliable torque and low fuel consumption throughout the rpm range
  • High power and performance in a small package
  • Can be used in a variety of application such as riding mowers, trenchers, ride-on trowels, concrete saws & vibratory rollers
  • Aluminum Alloy Block With Cast Iron Cylinder Sleeves
  • Enhances reliability and increases engine life
  • Forged High Carbon Steel Crankshaft
  • Provides maximum reliability under demanding loads
  • Low Oil Pressure Sensor
  • Alerts operator when oil pressure drops too low
  • Helps protect engine from unnecesary damage
  • Full Pressure Lubrication System
  • Trochoid-type oil pump creates constant lubrication throughout engine
  • Large Main Bearing Support
  • Located on PTO side of crankshaft
  • Minimizes shock under heavy loads
  • Large-Capacity Air Cleaner
  • Dual elements protect engine from dust and debris
  • Helps engine run smoother and more efficiently

Specifications

EH650DB5440
specs product image PID-65895
Engine
Engine Series
Subaru EH
Engine Style
Horizontal
Engine Type
4-Cycle OHC
Cylinders
2
Cooling System
Air
Dry Weight
97 Lbs
CC
653 CCs
HP
22 HP
Cylinder Bore Type
Cast Iron
Bore
3.15 Inches
Stroke
2.56 Inches
Compression Ratio
8.3:1
Systems
Starting System
12-Volt Key Start
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
52.41 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 2.9 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
2.9"
Crankshaft End Tapped Size
7/16-20
Crankshaft Keyway Width
1/4 Inch
PTO Height
5-1/4 Inches
Overview
Weight
97 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
UPC
859723000077
