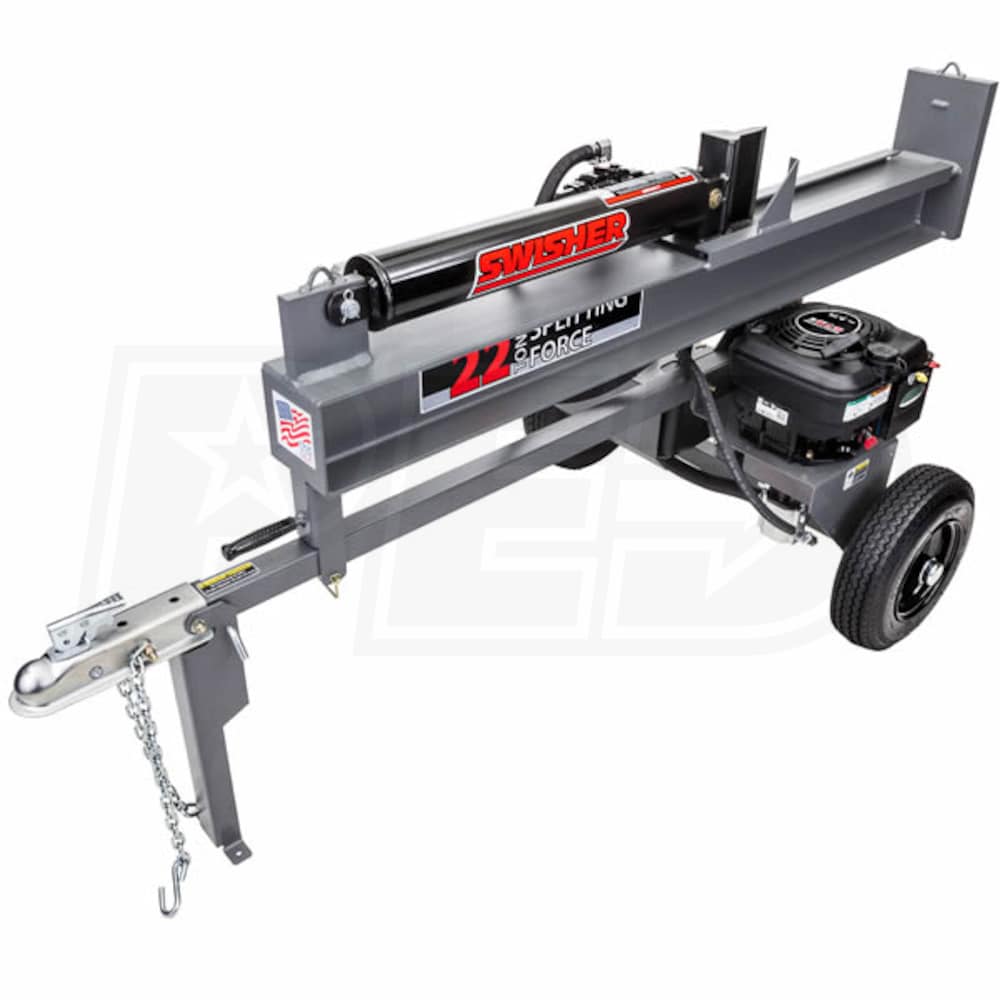

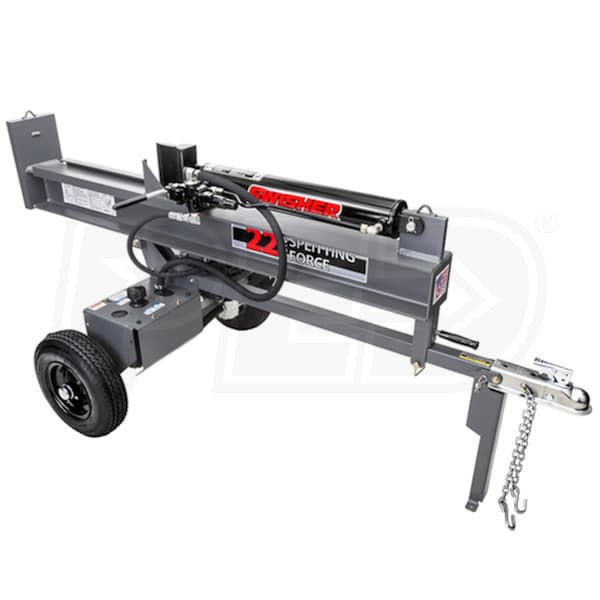

Swisher 22 Ton Horizontal / Vertical Gas Log Splitter

Model:

LSRB67522

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Swisher 22 Ton Horizontal / Vertical Gas Log Splitter
Swisher 22 Ton Horizontal / Vertical Gas Log Splitter
Model: LSRB67522
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Split Wood In Horizontal Or Vertical Positions
  • Split smaller logs at comfortable waist height
  • Switch to vertical, save your back & roll large logs into place
  • Briggs & Stratton 190cc 675 Series 4-Cycle Engine
  • Maximizes power supply to ensure optimal performance
  • Heavy Duty 2-Stage Hydraulic Pump
  • 13 second cycle time splits logs up to 25" long
  • Machined steel wedge provides tough and efficient log splitting

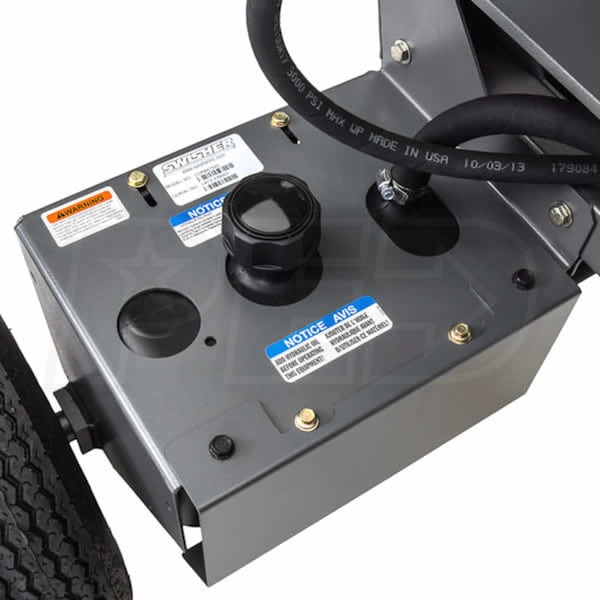

  • 2.5 Gallon Protected Poly Hydraulic Tank
  • Rust resistant and protected from potential damage
  • Built-In Log Cradles
  • Reduces the chance of logs rolling off the beam
  • Built-in Log Stripper
  • Separates log from wedge if complete split doesn't happen
  • Vertical Beam Lock
  • Adds security while splitting in the vertical position
  • Road-Towable
  • 2" hitch lets you tow the splitter up to 45 MPH

Specifications

LSRB67522
specs product image PID-14050
Engine
Engine Brand
Briggs & Stratton
Starting System
Recoil Start
CC
190 CCs
Fuel Tank Size
0.25 Gallons
Idle Control
Yes
Low Oil Shutdown
No
Hydraulics
Auto Return
Yes
Hydraulic Filter
No
Hydraulic Oil Included
No
Hydraulic Reservoir Size
2.5 Gallons
Max Pump PSI
3000 PSI
Cylinder Diameter
4 Inches
Cylinder Length
24 Inches
Cycle Time
13 Seconds
Tonnage
22 Tons
Overview
Assembly Required
Yes
Weight
388 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Product Length
88.0 Inches
Product Width
41.1 Inches
Product Height
39.0 Inches
UPC
728172398373
Wedge
Wedge Material
Steel
Wedge Size
7 Inches
Wedge Style
2-way
Replaceable Wedge
Yes
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
25 Inches
Towing
Towable
Yes
D.O.T. Lights
No
Fenders
No
Hitch Type
2 Inch Ball Hitch
Max Towing Speed
45 MPH
Accessories
Jack Stands
Included
Log Cradles
Included
Wood Type Hardness Rating 6" Seasoned 6" Green 12" Seasoned 12" Green 24" Seasoned 24" Green
Alder 590 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Ash 1320 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Aspen 420 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Basswood 410 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Beech 1300 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Birch 1470 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Boxelder 720 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Buckeye 350 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Catalpa 550 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Cedar 900 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cherry 950 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cottonwood 430 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Dogwood 2150 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Elm 1540 Lbs. 10+ Tons 13+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Fir 710 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Hickory 1820 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Locust 1700 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Magnolia 1020 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Maple 1450 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Oak 1620 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Pine 860 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Poplar 540 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Spruce 510 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Sweet Gum 850 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Walnut 1010 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
