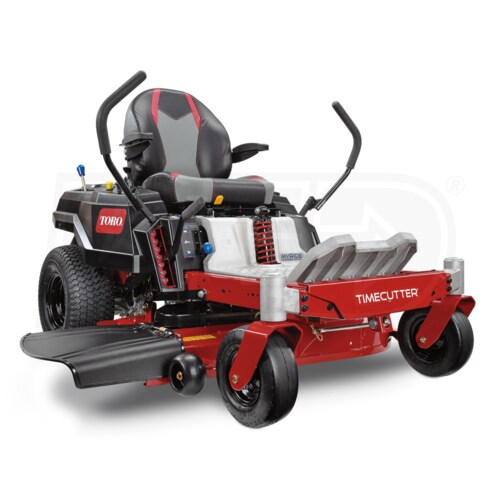

Toro TimeCutter MyRIDE® (42") 24.5HP Zero Turn Lawn Mower

Model:

75745 W

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Toro TimeCutter MyRIDE® (42
Toro TimeCutter MyRIDE® (42") 24.5HP Zero Turn Lawn Mower
Model: 75745 W
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Commercial 24.5HP/708cc Toro V-Twin OHV Engine
  • Cast iron cylinder liners protect against harmful debris
  • Dual feeding carburetors increase throughput and efficiency
  • Patented self-cleaning air filtration system for longer engine life
  • Toro's Exclusive Smart Speed® Control System
  • Choose between different speed ranges with the flip of a lever
  • TRIM: 0 - 4 MPH for trimming around trees and landscaping
  • TOW: 0 - 5.5 MPH for optimal and safe towing capabilities
  • MOW: 0 - 7 MPH for mowing large, open areas at high speed
  • Dual Hydrostatic ZT-2100 Transmission
  • Low-maintenance design with a 10cc pump and motor
  • Delivers higher ground speeds and smooth performance
  • 42-Inch, 2-Blade Fabricated Mower Deck
  • Crafted using extremely durable 10-gauge steel
  • IronForged™ deck ensures reliability and top performance for years
  • Deck washout port provides quick cleaning underneath the deck
  • Tool-Free Belt Cover & Oil Changes
  • Easiest oil change you've ever experienced
  • Integrated oil drain hose keeps the oil off your floor
  • Simply pull the hose off the holder and position it accordingly
  • Unlatch the belt cover with ease and get rid of debris
  • MyRIDE® Suspension System
  • Adjustable seat suspension system to match the rider's needs
  • Suspended operator platform reduces shock load, increasing comfort
  • Commercial Grade DNA
  • Includes washout port, cup holder, and armrests
  • Large 3-gallon fuel capacity and hitch kit for increased productivity
  • Wide rear tires with protective tire fenders to help avoid backsplash
  • Exceptional Leading 3-Year Warranty
  • Model 75745 W Is The Same As 75745 - Different Crates
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

75745 W
specs product image PID-105498
Engine
Engine Brand
Toro V-Twin
Starting System
12-Volt Key Start
Engine Cycle
4-Cycle
HP
24.5 HP
CC
708 CCs
Fuel Tank Size
3 Gallons
Engine Cylinders
2 Cylinders
Oil Filter
Yes
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Motor
Battery Voltage
12 Volts
Battery Type
Lead Acid
Battery Included
Included
Overview
Weight
589 Pounds
Consumer Warranty
3 Years
Product Length
75 Inches
Product Depth
48 Inches
Product Width
42 Inches
UPC
021038757452
Additional Model Numbers

75745, 75745 W

Deck
Cutting Options
3-in-1 (Side-Discharge/Bag/Mulch)
Deck Material
10-Gauge
Blades
2 Blades
Deck Construction
Welded
Deck Positions
7 Positions
Cutting Width
42 Inches
Cutting Height
1.5" - 4.5"
Deck Lift System
Manual Hand Operated
Engagement
PTO Electric
Deck Drive
Belt
Drive
Speeds
Variable
Maximum Speed
7 MPH
Maximum Reverse Speed
3 MPH
Drive Wheels
Rear Wheels
Transmission Type
Hydrostatic
Drive System
ZT-2100 Hydro-Gear Transaxle
Accessories
Engine Guard
Yes
Seat Type
High Back w/ Seat Springs
Arm Rests
Included
Hitch
Included
Floor Mat
No
Headlights
No
Washout Port
Yes
Wheels
Front Tire Size
11 x 4 Inch
Rear Tire Size
18 x 7.5 Inch
Tire Type
Pneumatic Wheels
