Model: 1148-2000-50-NPSH
Hose Length
$70.99
In-Stock
Features
Inlet Size
N/A
Style
Utility
GPM
62.4 Gallons
- Slimline Automatic Submersible Utility Pump w/ 2" Discharge
- Allows pump to operate in spaces 8-3/4" diameter or larger
- Molded Resin, Rubber Protected EL-1 Relay (Req. 4.5" - On)
- No control panel/float, electrodes detect water to start pump
- Internal timer eliminates frequent on/off in rough conditions
- 2/3-HP 6.1-Amp Motor (12.5-Amp Starting) w/ Thermal Protection
- Continuous duty rated, capable of pumping up to 3744 GPH
- Top Discharge Provides Maximum Motor Cooling Efficiency
- Provides max motor cooling efficiency & extended dry run time
- Urethane Semi-Vortex Impeller & Wear Plates
- Designed for maximum durability & pump performance
- Double Inside Mechanical Seal w/ Silicon Faces
- Provides the longest operational life of any seal available
- Oil Lifter
- Provides lubrication of the seal faces
- V-Ring Seal Design
- Protects mechanical seal from abrasive particles
- 32' Power Cord
- Great for outdoor applications
- 2-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
LB-480A
General Information
Product Category
Water Pump
Motor
Voltage
120 Volt
Running Amps
6.1
Power Cord Length
32 Feet
Pump
Gallons Per Minute
62.4 Gallons
Outlet Diameter
2 Inch
Mechanical Seal Material
Silicon Carbide
Housing Material
Thermoplastic
Impeller Material
Plastic
Solids Handling Size
.25 inch
Total Head Lift
39.5 Feet
Float Type
Electronic
Submersible
Yes
Engine
Continuous Operation
Yes
Oil-Cooled
Yes
Shaft Seal
Silicon Carbide
Horsepower
0.66 HP
Overview
Product Category
Water Pump
Weight
30 Pounds
Consumer Warranty
2 Years
Product Width
8.75 Inches
Product Height
11.25 Inches
UPC
894787000380
Additional Model Numbers
LB480A, LB-480A
Accessories
Float Switch
Yes
Reviews
(9)
Tsurumi Pump LB-480A Reviews & Ratings
Customer Rating
4.56
(9 Ratings)
5(5)
4(4)
3(0)
2(0)
1(0)
Verified Buyer
Strong And Reliable
By Robert H
Illinois
Purchased 02/28/2023 |
Review Posted 03/21/2023
We used the same model pump in a portable configuration to pump out a low spot in my yard that held about 2 to 3 acre-feet of water, 1 to 3 times per year. After nine years of doing that, I got tired of the manual approach and built a small pump station, using the same model pump, and it has worked perfectly. My recent purchase is essentially a back up pump, providing for that situation, where either the pump station gets clogged or I need to replace the pump.
This pump is both strong and reliable and has functioned with minimal maintenance for many years.
This pump is both strong and reliable and has functioned with minimal maintenance for many years.
Robert H Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I'd Buy It Again, Easy To Store
Verified Buyer
Ok
By Rulane M
New York
Review Posted 01/05/2023
Is working fine
Rulane M Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Pros:
Easy To Use, Price, I'd Buy It Again
Cons:
None
Verified Buyer
Exceptional Product
By David D.
Bethel Island, California
Purchased 12/29/2015 |
Review Posted 08/29/2017
We have used Tsurumi pumps for almost 20 years in our marine towing and Salvage business. They are the best.
David D. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
High Quality, Reliable, Durable, Easy To Use
Verified Buyer
As Advertised
By Curt D.
Wenatchee, Washington
Purchased 02/01/2016 |
Review Posted 03/01/2016
I was a bit concerned with the probe style shut off, so I tested it before I set it in the pool for the night and it worked perfectly. I came back the next morning and the pump had drained down until there was about 4 inches of water. Beats standing around waiting for it to run out of water so you can pull the plug before the pump burns out.
Curt D. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Verified Buyer
My 1st Field Equipment Purchase
By John K.
ALPHARETTA, Georgia
Purchased 11/04/2015 |
Review Posted 01/07/2016
I am a Field Technician for Electrical Utility projects at a small Electrical Engineering & Design firm in GA., USA. I was entrusted with selecting a pump to be installed in a Substation for a small Electric Co-Op in SC, USA. The specific application is to keep drainage water in the cable trench box system at or below 4", and out of the conduit Risers. After speaking with the Substation Designer, Client Substation Supervisor, CSR Jim (yes..the actual person whose face is on the webpage), and cable trench box manufacturer, I chose this Submersible pump.
Follow-up with Substation Supervisor to query pumps effectiveness gathered this comment "It's rained more here in the last Six weeks(Nov-Dec '15) than I can remember over the last Twenty years. I've dropped my visits to inspect pump from twice a week to regular station schedule of once a month."
I will use waterpumpsdirect.com again as the need arises. They add intrinsic value to our Client services. The CSR's are competent, have real world experience, did not push any particular product, and gave sound advice. And when the install deadline was moved up two weeks, I chose 2-day shipping which actually turned out to be 42 hours to our desk- Nice!!
Follow-up with Substation Supervisor to query pumps effectiveness gathered this comment "It's rained more here in the last Six weeks(Nov-Dec '15) than I can remember over the last Twenty years. I've dropped my visits to inspect pump from twice a week to regular station schedule of once a month."
I will use waterpumpsdirect.com again as the need arises. They add intrinsic value to our Client services. The CSR's are competent, have real world experience, did not push any particular product, and gave sound advice. And when the install deadline was moved up two weeks, I chose 2-day shipping which actually turned out to be 42 hours to our desk- Nice!!
John K. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Pros:
Features, Exceeded Expectations
Verified Buyer
Not made in Japan but Malaysia
By Anton G.
Staten Island, New York
Purchased 08/15/2014 |
Review Posted 09/05/2014
Tsurumi pumps are one of the best pumps you can buy to keep your basement dry. It is like Toyota / Lexus in a pump's word. You cannot kill it.
I have used this pump during Sandy and Irene storms to clean my basement and there are rugged, well built and the most important reliable almost the commercial grade pumps (can run 24 hours/ 7 days). Unfortunately this pump is not made in Japan but Malaysia. Quality control is never same as a product made in Japan. This pump is not cheap, however how much is your basement cleanup and replacement of water heater, furnace and/or washer dryer, wash machine and what else you have there worth.
I have used this pump during Sandy and Irene storms to clean my basement and there are rugged, well built and the most important reliable almost the commercial grade pumps (can run 24 hours/ 7 days). Unfortunately this pump is not made in Japan but Malaysia. Quality control is never same as a product made in Japan. This pump is not cheap, however how much is your basement cleanup and replacement of water heater, furnace and/or washer dryer, wash machine and what else you have there worth.
Anton G. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
5/5
4/5
Pros:
High Quality, Reliable
Cons:
Expensive
Verified Buyer
I Build
By Chris F.
Chicago, Illinois
Purchased 10/10/2013 |
Review Posted 11/01/2013
I have used these pumps now for 15 years, This is a great unit that I can set in a pit and let it do its thing. Our current site has a 22' deep excavation and about 125 foot run to storm line , we had 2" rain yesterday and I arrived to site this morning with no standing water. The only down side is the serviceability, I have not been able to readily get parts to service this unit .
Chris F. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Pros:
High Quality, Durable, Reliable, Easy To Use
Cons:
Availability Of Parts
Powerful Pump
By Cal
Connecticut
Review Posted 08/13/2013
A compact powerful pump The long build in electric cord (32 ft) is a definite plus. I have it used it a couple of times, certainly a good piece of equipment to have in fending off basement flooding. I found it a great buy even if it's a bit pricey. Overall I am very satisfied with the performance and the build quality of this product.
Cal Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Durable, Exceeded Expectations, Reliable, High Quality
Cons:
Expensive
Verified Buyer
Awesome
By Josh M.
Springfield, Missouri
Purchased 05/28/2013 |
Review Posted 06/18/2013
It is keeping my backyard dry. I love it.
Josh M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Durable, Reliable, High Quality, I'd Buy It Again
Product Q&A
(1)
Product Questions
Answered by Jim, the Water Pump Expert
Can I use this pump for my ditch water?
Wayne
from Utah
July 23, 2024
How-To Articles
How to Pick the Perfect Specialty Water Pump
All water pumps are built for the same purpose: moving water. But there are sp...
How to Get Water Off Your Pool Cover
Every spring season, millions of Americans are faced with the dilemma of decidi...
How to Pick the Perfect Electric Water Pump
Electric water pumps are extremely versatile and have many different uses for ap...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

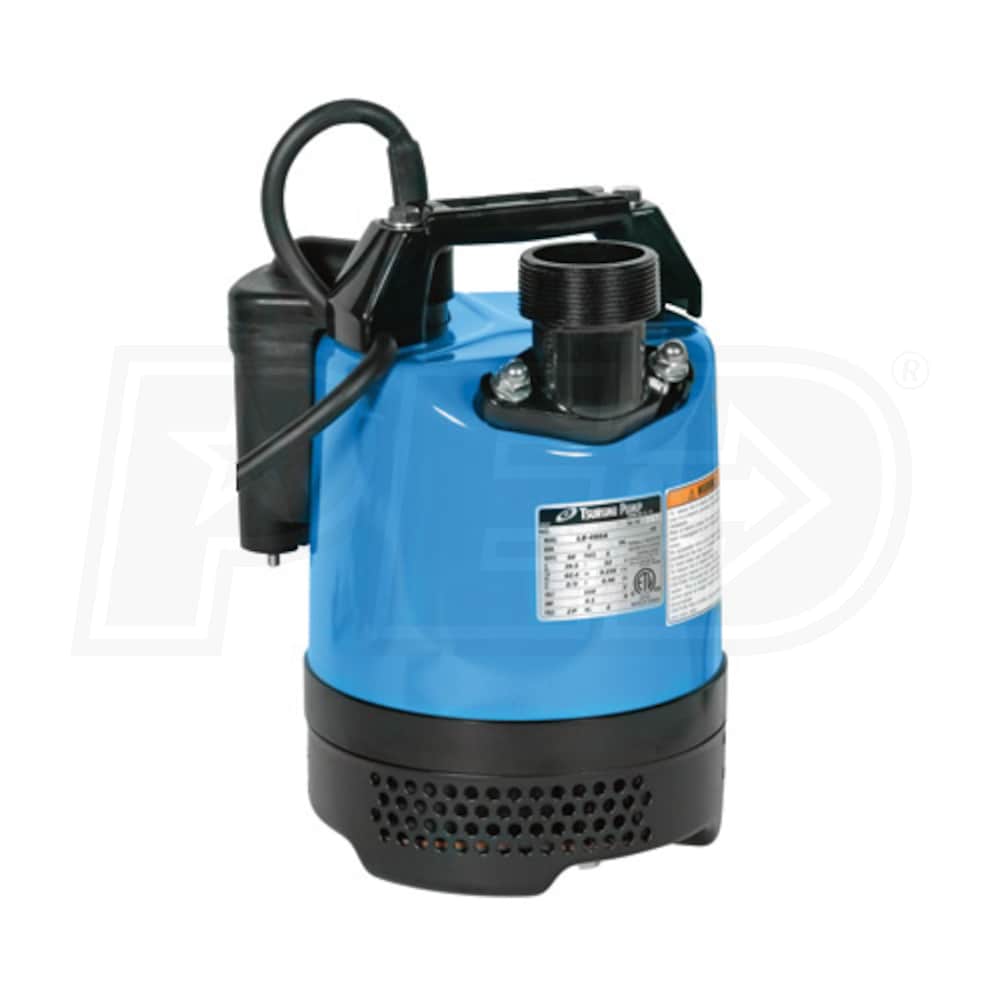

Tsurumi LB-480A - 62.4 GPM (2") Automatic Submersible Utility Pump
