VIAIR 480C Ultra Duty 12-Volt 2.5-Gallon 200-PSI Onboard Air System (100% Duty Cycle @ 100 PSI) Up To 37" Tires
Model:
20001
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
DC Compressors
CFM
1.13
Tank Size
2.5

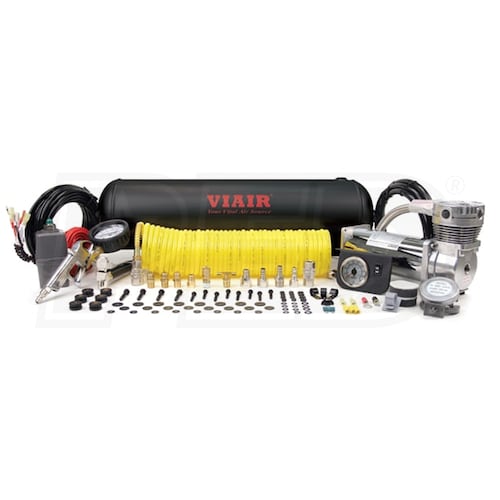

- Pre-Packaged Compressed Air Solution
- Includes all components needed to install on your vehicle
- Constant Duty System - Great For Tires Up To 37 Inches
- Handy for large RVs, off road vehicles, mobile repair vans, etc.
- Provides a 100% duty cycle @ 100 PSI (up to 1 hour continuous use)
- 50% duty cycle at 200 PSI (30 minutes on, 30 minutes off)
- Can Also Run Pneumatic Tools
- Supplies the air needed to get the job done; tools must be rated for 1.45 CFM @ 40PSI, or 1.13 CFM @ 90PSI
- Dependable 12-Volt Permanent Magnetic Motor
- Designed to work with a low, 23 amp maximum amp draw

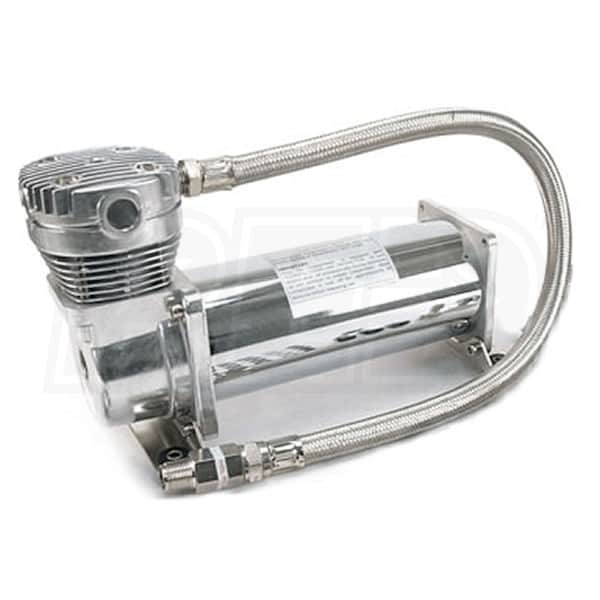

- 480C Chrome VIAIR Air Compressor With Air Filter
- Installs with 20 ft.of 12-gauge wire, inline fuse holder & dash panel gauge with ON/OFF switch
- Automatic Thermal Overload Protector
- Prevents overheating & damage to the compressor; resets when air compressor cools down
- 2.5 Gallon 200 PSI VIAIR Air Tank
- Pressure switch set for 165 PSI on, 200 PSI off; ncludes 30ft. coil hose with quick connects & accessory airline
- Tire Inflation Gun with 200 PSI Gauge
- Simplifies tire changes, inflation & repairs
- Includes 1/8" (F) to 1/4" (M) & 3/8" (F) to 1/4" (M) reducers; 1/4" drain cock, 4" strip of continuous grommet material
- 1/4" 250 PSI safety valve, (3) 1/4" compression fittings, electrical connections, mounting hardware
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
20001
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
12 Volt DC
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
23
Engine
HP
.25
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
1.13
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
200 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
2.5 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
31.5 Pounds
Consumer Warranty
1 Year
Product Length
26 Inches
Product Width
14 Inches
Product Height
10 Inches
Power Type
Electric
UPC
818114002106
