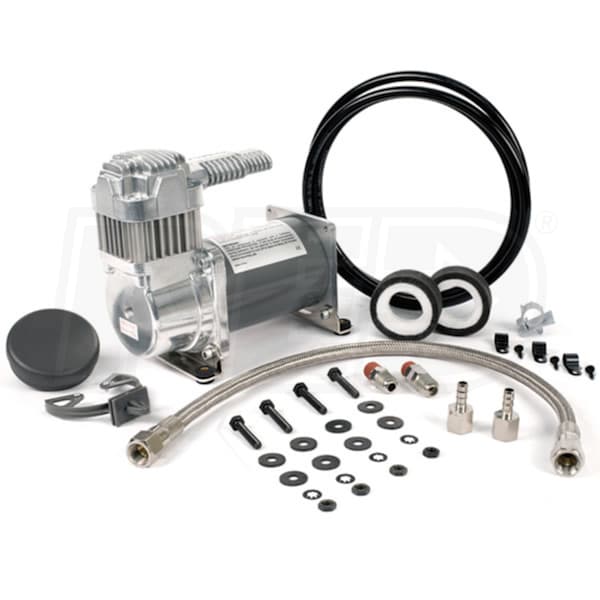

VIAIR 250C IG 24-Volt 150-PSI Industrial Grade Series Air Compressor Kit (100% Duty Cycle @ 100 PSI)

Model:

25058

Write A Review
$270.95
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

VIAIR 250C IG 24-Volt 150-PSI Industrial Grade Series Air Compressor Kit (100% Duty Cycle @ 100 PSI)
VIAIR 250C IG 24-Volt 150-PSI Industrial Grade Series Air Compressor Kit (100% Duty Cycle @ 100 PSI)
Model: 25058
$270.95
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

DC Compressors

CFM

0.51

Tank Size

0

  • 24-Volt Dependable IG Permanent Magnetic Motor
  • Industrial Grade units are specifically designed to fill air reservoir tanks up to 2 gallons
  • Head assembly includes a newly-developed, patents pending innovative head design for better heat dissipation
  • Certified CE spec. with outstanding sealing properties to the elements
  • Separate Stainless Steel-Braided PTFE-Lined Leader Hoses & 1/4" Check Valve Assembly
  • Protects the compressor against high amperage restarts
  • 100% At 100 PSI Duty Cycle
  • Allows you to work for up to 1 hour; run in a well ventilated area, works best with engine running
  • 6 amp maximum 24-volt amp draw
  • Quickly & efficiently puts out 1 CFM flow at zero PSI head pressure; 0.51 CFM @ 90 PSI
  • Remote Mount Air Filter Assembly
  • Cleaner air provides better results; 2 replacement filter elements included for easy maintenance
  • Installation instructions & air line for remote mount air filter are included
  • Compact & Versatile
  • Weighs only 6.75 pounds, measures 7.4″L x 3.9″W x 6.75″H
  • Mounting Hardware & Vibration Isolators Included
  • See Install Drawing PDF under the Specs tab for dimensions
  • Use of a pressure switch & 24V relay is recommended
  • 1 Year Limited Factory Warranty
  • Protects your investment from defects in materials and workmanship
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

25058
specs product image PID-75090
General Information
Product Category
Air Compressor - Portable
Engine
HP
.25
Motor
Voltage
24 Volt DC
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
6
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
0.51
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Pressure Gauge
No
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
6.75 Pounds
Consumer Warranty
1 Year
Product Length
7.4 Inches
Product Width
3.9 Inches
Product Height
6.75 Inches
Power Type
Electric
UPC
818114002588
