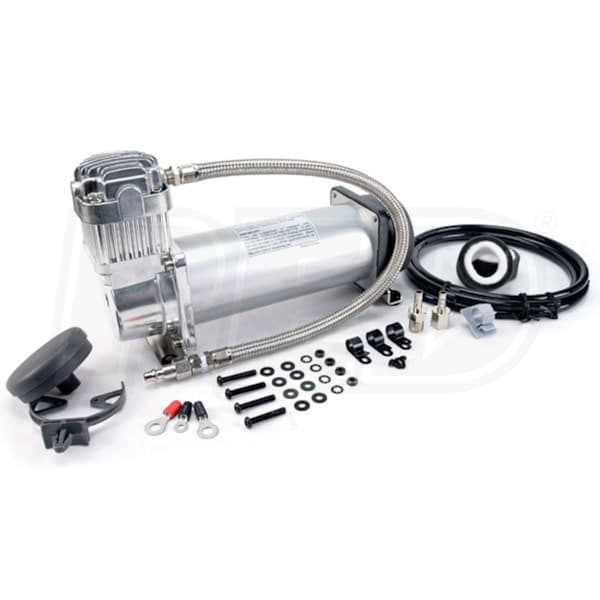

VIAIR 450H 12-Volt 150-PSI Hardmount Air Compressor Kit (100% Duty Cycle @ 100 PSI)
Model:
45042
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Consumer
Style
DC Compressors
CFM
.97
Tank Size
0
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Dependable 12-Volt Permanent Magnetic Motor
- Comes with a built-in, moisture resistant ON/OFF power switch for ease of use
- Keep the vehicle's engine running while using the compressor to prevent battery discharge & enhance performance
- 100% At 100 PSI Duty Cycle
- Should not be run for more than an hour at a time
- 23-amp maximum 12-volt amp draw; 150-PSI maximum pressure; run in a well ventilated area
- Quickly & efficiently puts out 1.8 CFM flow at zero PSI head pressure; .97 CFM @ 90 PSI
- Automatic Thermal Overload Protector
- Protects the compressor from overheating & damage from excessive use
- Stainless Steel Braided Leader Hose
- Check valve, 1/4" quick connect stud for hookup to a coil hose, & insulated wiring for simple installation
- Mounting hardware & vibration isolators also Included
- Remote Mount Air Filter Assembly
- Cleaner air provides better results; 2 replacement filter elements included for easy maintenance
- Installation instructions & air line for remote mount air filter are included
- Compact & Versatile
- Weighs only 11.05 pounds, measures 11.63″L x 3.94″W x 6.75″H
- 1 Year Limited Factory Warranty
- Protects your investment from defects in materials and workmanship
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
45042
General Information
Product Category
Air Compressor - Portable
Engine
HP
.25
Motor
Voltage
12 Volt DC
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
23
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
.97
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Pressure Gauge
No
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
11.05 Pounds
Consumer Warranty
1 Year
Product Length
11.63 Inches
Product Width
3.94 Inches
Product Height
6.75 Inches
Power Type
Electric
UPC
818114004520
