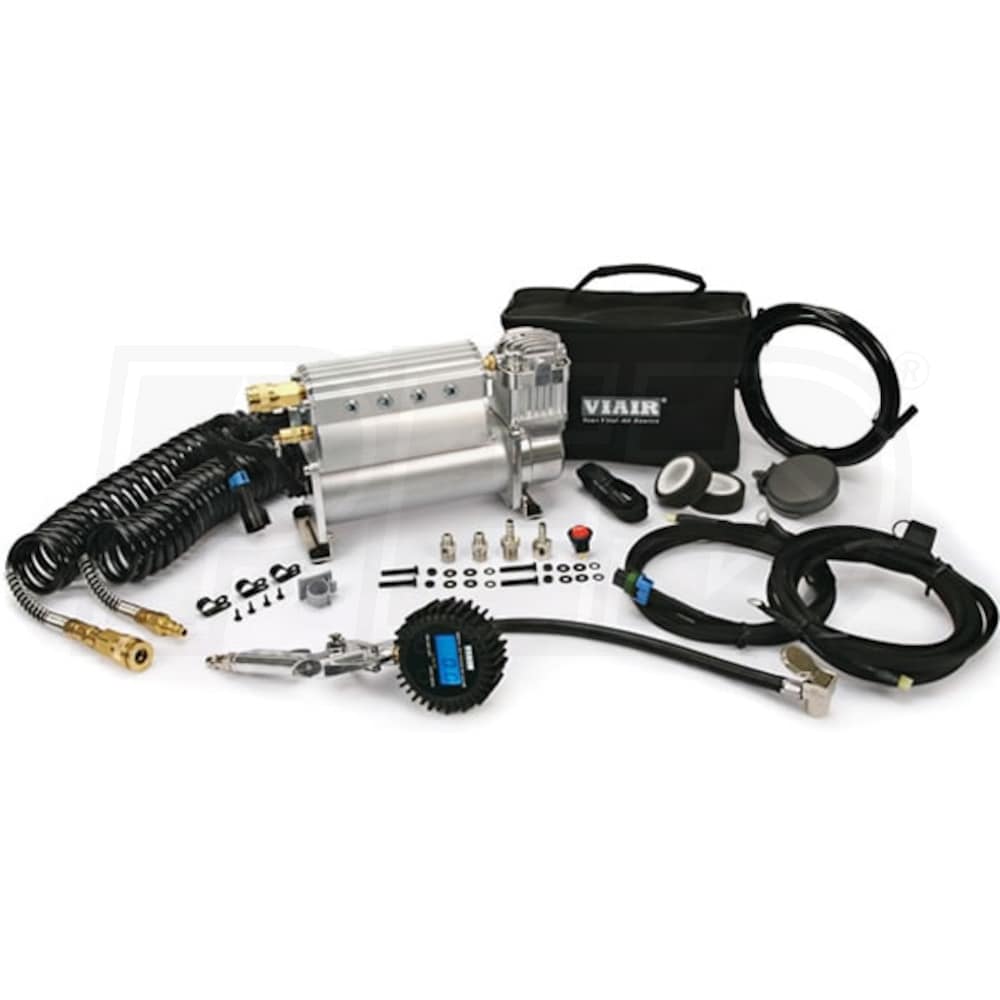

VIAIR Automatic Deployment Air 12-Volt 150-PSI Constant-Duty Universal Mount System w/ Inflation Kit (85/105 PSI Switch - 1.8 CFM) Up To 37" Tires

Model:

45055

Write A Review
$549.95
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

VIAIR Automatic Deployment Air 12-Volt 150-PSI Constant-Duty Universal Mount System w/ Inflation Kit (85/105 PSI Switch - 1.8 CFM) Up To 37" Tires
VIAIR Automatic Deployment Air 12-Volt 150-PSI Constant-Duty Universal Mount System w/ Inflation Kit (85/105 PSI Switch - 1.8 CFM) Up To 37" Tires
Model: 45055
$549.95
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

DC Compressors

CFM

.97

  • Constant-Duty 100% Duty Cycle @ 100 PSI (1 Hour Continuous Use)
  • Tire inflation or air locker actuation is made possible in a very compact space
  • ADA Universal-Mount System Comes Complete
  • Makes installation a plug & play process with a 60-amp fuse holder & 40-amp fuse
  • 1/8" NPT drain cock, 1/4" NPT safety valve, (8) 1/4" NPT hex plugs, (2) 1/4" NPT BSP adapters, 1/4" NPT auto coupler

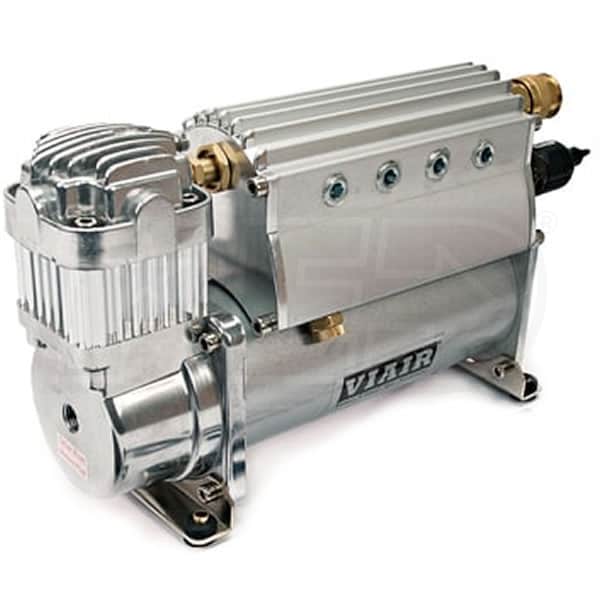

  • 450C 12-Volt Compressor With Toggle Switch
  • Permanent magnetic motor delivers 1.8 CFM at 0 PSI; has a 23-amp maximum draw
  • Automatic thermal overload protector prevents the compressor from overheating
  • 12-Port Extruded Aluminum Air Distribution Tank
  • Provides a compact air locker and tire inflation station for virtually any vehicle
  • Wiring Harness Requires Very Little Install Time
  • 30-amp Delphi connector set, (2) 1/4" ring terminals, 5/16" ring terminal, (3) female spade terminal connectors
  • Onboard 1/4" NPT Sealed Pressure Switch
  • Turns on at 85 PSI, turns off at 105 PSI, will inflate up to 37" tires
  • 30' Inflation Hose with Automatic Couplers
  • Lets you work in a wide area
  • Digital Tire Inflation Kit
  • 12-inch hose gets into hard-to-reach areas; easy to read in all light conditions
  • Remote Mount Air Filter
  • Includes air line for remote mount filter, 2 replacement air filter elements, & 2 relocation fittings
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

45055
specs product image PID-75153
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
12 Volt DC
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
23
Engine
HP
.25
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
.97
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
12.5 Pounds
Consumer Warranty
1 Year
Product Length
9.38 Inches
Product Width
4 Inches
Product Height
6.75 Inches
Power Type
Electric
UPC
818114005558
