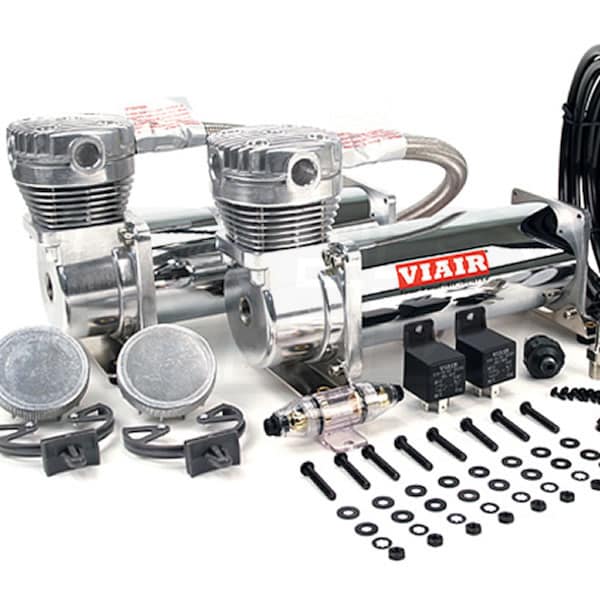

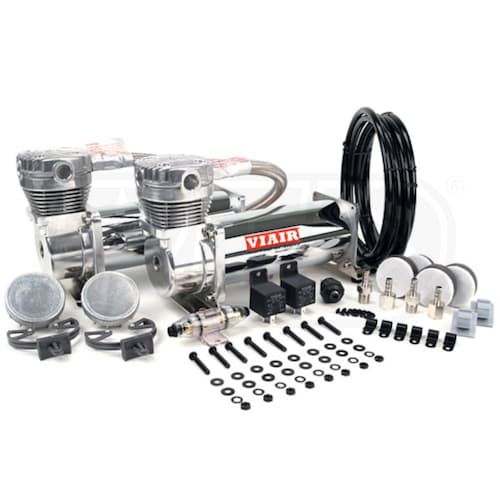

VIAIR Dual 480C 12-Volt 200-PSI Value Pack Air Compressor Kit - Chrome (100% Duty Cycle @ 100 PSI)

Model:

48032

Write A Review
$421.16
Was $467.96
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

VIAIR Dual 480C 12-Volt 200-PSI Value Pack Air Compressor Kit - Chrome (100% Duty Cycle @ 100 PSI)
VIAIR Dual 480C 12-Volt 200-PSI Value Pack Air Compressor Kit - Chrome (100% Duty Cycle @ 100 PSI)
Model: 48032
$421.16
Was $467.96
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

DC Compressors

CFM

2.12

Tank Size

0

  • Dual Performance Value Pack Is Ideal For Air Suspension Systems
  • Ideal air source solution for any air suspension kit, industrial applications, air horns, or off-road pneumatic needs
  • 2 dependable 480C compressors with 12-volt permanent magnetic motors; engine must be running during operation
  • Use thread sealant for proper installation, teflon tape is not recommended. Recommended torque is 12 to 15 ft. lbs.
  • 1 Heavy-Duty Pre-Wired 165 PSI On / 200 PSI Off Pressure Switch & 1 Tube-Style Fuse Holder (Up To 60-Amp Fuse)
  • 2 heavy duty 40-amp relays are included; 10 gallon maximum air tank size
  • 100% At 100 PSI Duty Cycle (50% At 200 PSI)
  • Can run continuously for 1 hour (30 min. on / 30 min. off at 200 PSI); produces 2.12 CFM at 90 PSI
  • 2 Automatic Thermal Overload Protectors
  • Protect the compressors from overheating & damage from excessive use
  • 2 Stainless Steel Braided Leader Hoses
  • Includes 2 inline check valves and insulated wiring for simple installation
  • 2 Remote Mount Air Filter Assemblies
  • Cleaner air provides better results; 2 replacement filter elements included for easy maintenance
  • Installation instructions & air line with 6 clips for remote mount air filter are included; run in a well ventilated area
  • 2 Sets Of Mounting Hardware
  • 2 remote brackets, 2 remote mount fittings, 2 leader hose clips, 8 sets of nuts, bolts, washers & lock washers
  • Compact & Versatile
  • Weighs only 22.1 pounds, each unit measures 10.87″L x 4.2″W x 6.75″H
  • 1 year Limited Factory Warranty protects your investment from defects in materials and workmanship
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

48032
specs product image PID-75117
General Information
Product Category
Air Compressor - Portable
Engine
HP
.25
Motor
Voltage
12 Volt DC
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
44
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
2.12
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
200 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Pressure Gauge
No
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
22.1 Pounds
Consumer Warranty
1 Year
Product Length
10.87 Inches
Product Width
4.2 Inches
Product Height
6.75 Inches
Power Type
Electric
UPC
818114004827
