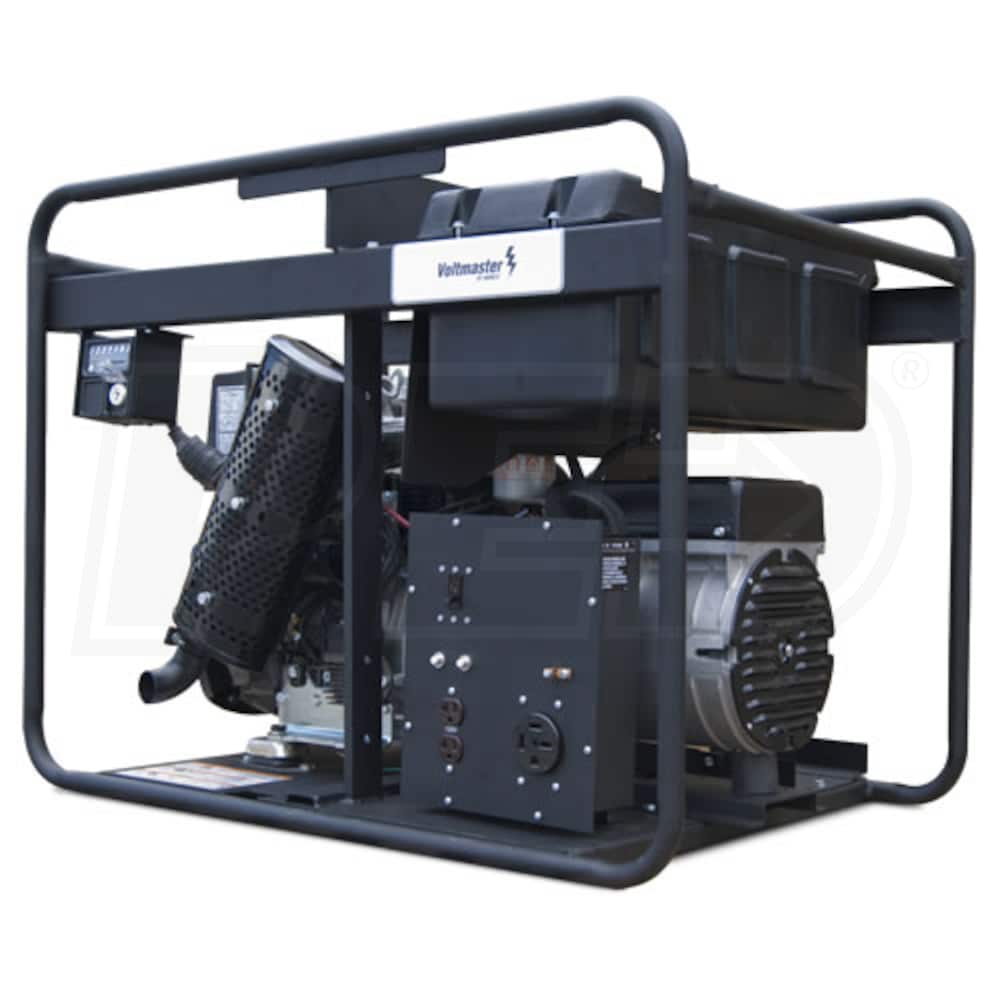

Voltmaster LR120EL-208 - 12,000 Watt Portable Diesel Generator (208V - 3-Phase)
Model:
LR120EL-208
+
Share This Product
Recommended Accessories
![Power Equipment Direct expert image](http://www.powerequipmentdirect.com/images/experts/expert-avatar-7.png)
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Professional
Style
Portable
Run Watts
12,000 Rated Watts
Surge Watts
12,000
Starting Watts
Fuel
Diesel
Engine
Kohler
- 208V Three Phase Generator
- Perfect for powering commercial/industrial motors, boilers, etc.
- 19-HP/654cc Kohler Diesel Engine
- A workhorse designed for easy starting and long run times
- Electric Start w/ Recoil Backup (Battery Sold Separately)
- Includes battery rack & cables
- Cast Iron Cylinder Liner w/ Low Oil Pressure Shutdown
- Provides added protection
- Automatic Voltage Regulator
- Prevents equipment damage & power related performance problems
- 8-Gallon Fuel Tank Provides Extended Run Time
- 9.6 hours @ half load & 8 hours @ full load
- All Copper Windings, Brush Alternator
- Provides <6% harmonic distortion
- Added Features
- 1" Welded steel roll cage
- Isolated and recessed control panel
- Magnetic circuit breakers
- Plugs for 3-Phase receptacles
California residents see
Warning: This product can expose you to chemicals including Diesel engine exhaust which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
![NEMA 5-20R (Wall-Type)](https://www.electricgeneratorsdirect.com/images/plug_image7.jpg)
![NEMA 15-50R](https://www.electricgeneratorsdirect.com/images/plug_image22.jpg)
LR120EL-208
![specs product image PID-5755](/products-image/150/LR120EL_500.jpg)
Overview
Weight
380 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Portable Generator
Product Length
39 Inches
Product Width
29.5 Inches
Product Height
42 Inches
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
12000 Watts
Surge Watts
12000 Watts
Fuel Type
Diesel
Rated Amps
42 Amps
Tank Size
8 Gallons
Run Time @ 50% Load
9.6 Hours
Fuel Tank Material
Plastic
Fuel Gauge
No
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
81 dbA
Idle Control
No
Hour Meter
No
Voltage Meter
No
Lifting Eye
Yes
Battery
Not Included (400 CCA)
Grade Type
Professional
Engine
Engine Brand
Kohler
Starting System
12-Volt Key Start
HP
19 HP
CC
654 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 15-50R
1
