Features
Inlet Size
1-1/4 Inch
Style
Convertible Jet
GPM
16.7 Gallons
- Wayne Cast Iron Convertible Well Jet Pump*
- Assembled in the US with foreign and domestic parts
- *Requires Jet Assembly For Operation
- Designed For Wells 0' - 90' In Depth
- Pumps up to 444 GPH @ 10' Depth - (50 PSI)
- All Cast Iron Motor Housing
- Rugged, corrosion-resistant design provides longer pump life
- 1 HP Dual Voltage Motor (120/240V)**
- Running: 13A @ 120V; 6.5A @ 240V
- Energy efficient, thermally protected design
- Thermoplastic Impeller
- For maximum water flow and reliable operation
- Includes Pre-Set Pressure Switch
- Set at 30-50 PSI for automatic operation
- 1-1/4" NPT Intake & 1" NPT Discharge
- Easily connect to existing system
- Dedicated Priming Port
- Makes this pump very easy to use
- 3-Year Limited Warranty
- **No Power Cord Included
California residents see
Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
CWS100
General Information
Product Category
Water Pump
Motor
Voltage
120/240 Volt
Running Amps
13
Pump
Gallons Per Minute
16.7 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1 Inch
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
90 Feet
Maximum PSI
50
Submersible
No
Engine
Continuous Operation
No
Horsepower
1 HP
Overview
Product Category
Water Pump
Weight
43 Pounds
Consumer Warranty
3 Years
Product Length
23.75 Inches
Product Width
12.5 Inches
Product Height
8 Inches
UPC
040066218827
Reviews
(7)
Wayne CWS100 Reviews & Ratings
Customer Photos and Videos
Purchase And Installation Of Wayne CWS100
By Pinckney W
Tennessee
Purchased 12/04/2023 |
Review Posted 12/28/2023
As a handy homeowner, I found the pump easy to install. I was replacing an older model Wayne pump. I e-mailed the seller and called Wayne a number of times. The 110/220 voltage adjustment didn't match the installation manual, and the manual was not clear about wiring the pressure switch. I likely could have used trial-and-error, but I didn't want to break anything, so I called Wayne. They were able to tell me what I needed to know. So, it all went pretty well. Calls would not have been necessary if the manual had shown the correct voltage adjustment, and the correct wiring for the pressure switch. Since I installed it, the pump has been completely fine: efficient and relatively quiet.
Pinckney W Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
5/5
5/5
Pros:
Easy To Use, Price, I'd Buy It Again
Cons:
Bad Instructions
Do Not Buy
By Joe D.
Pearl river, New York
Purchased 05/31/2016 |
Review Posted 02/24/2021
Pump lasted just over 3 years. The warranty only covers 3 years, wayne would not cover any parts or service.
Joe D. Does Not Recommend This
Was this review helpful?
Expert Response
Very sorry this product didn't meet your expectations. Depending on the application area and mineral content of water being pumped, a 3-5 year lifespan on a pump at this price point is probably within the normal range. Unfortunately they don't make pumps like they use to.
Dale V.
Power Equipment Expert
Rating Breakdown
1/5
1/5
1/5
1/5
Cons:
Low Quality, Unreliable, Durability
I Would Not Recommend This Pump
By Joe D.
Pearl river, New York
Purchased 05/31/2016 |
Review Posted 12/04/2020
Unfortunately the pump is slowly falling apart, making noises, fan fell off shaft, taking longer to build up pressure, and surging. I contacted Wayne pumps many times through email and phone. They are very nice but refuse to warranty the pump due to it being out of warranty. Unfortunately it only carries a 3 year warranty, and it started falling apart days after of course.
Joe D. Does Not Recommend This
Was this review helpful?
Manufacturer Response
Joe,
I would like to speak with you regarding the age of the unit and the situation you are having. I may be able to assist you with getting this replaced. Please email me direct at talfonso@sfconsumerbrands.com or call me at 800-237-0987 please ask for Tina.
Thank you,
Tina Alfonso
I would like to speak with you regarding the age of the unit and the situation you are having. I may be able to assist you with getting this replaced. Please email me direct at talfonso@sfconsumerbrands.com or call me at 800-237-0987 please ask for Tina.
Thank you,
Tina Alfonso
Rating Breakdown
3/5
2/5
2/5
2/5
Cons:
Low Quality, Unreliable, Durability
1 HP Is Adequate
By David M.
Tryon, North Carolina
Purchased 01/21/2016 |
Review Posted 05/03/2016
This pump works well in my 90 ft. well. Birney Shelly is an excellent plumber in the Tryon, NC area. Now all I need is a better bladder tank. Thanks Birney!
David M. Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
5/5
Direct Replacement
By Mark J.
Arlington, Washington
Purchased 07/28/2015 |
Review Posted 09/04/2015
This pump was a direct replacement for a frozen pump in a foreclosure. Everything was identical in placement and installation was a breeze. I wish the rest of the plumbing was this easy and direct.
Mark J. Recommends This
Was this review helpful?
Rating Breakdown
5/5
4/5
5/5
5/5
Pros:
Easy To Use, Price, I'd Buy It Again
Cons:
None Yet
Wayne works well-Satisfied !!
By John S.
Bridgeport, Connecticut
Purchased 08/23/2014 |
Review Posted 11/09/2014

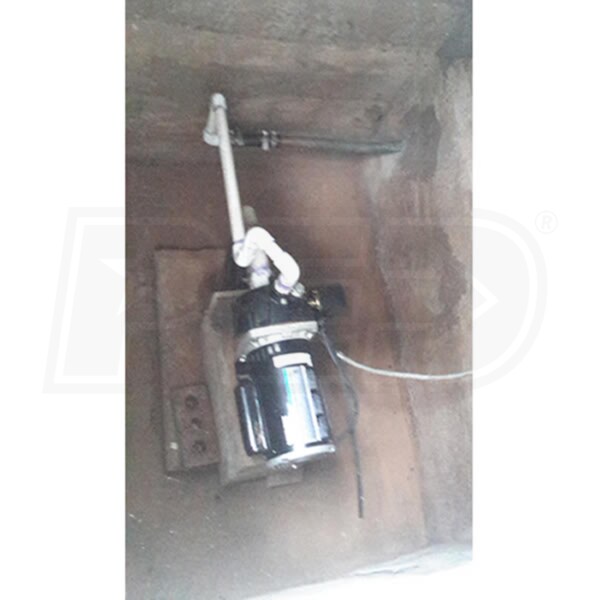

Enclosed picture shows completed installation. One point of view for future customers would be to start with low pressure and/or work up to higher pressure. Blew connections until pressure was lowered. Ended with 31 psi as a final setting for our purposes.
Electrical ground connection's too close to live wires. Overall function of pump is acceptable.
Electrical ground connection's too close to live wires. Overall function of pump is acceptable.
John S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Wayne Pump
By Theodore P.
Wallingford, Connecticut
Purchased 10/17/2013 |
Review Posted 11/08/2013
The quick service I received from Water Pumps Direct and the Technical support from Wayne Pump Co. Along with their Jet assembly, made this purchase and installation a very pleasureful experience!
Theodore P. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, Price, Exceeded Expectations, High Quality
Product Q&A
(1)
Product Questions
Answered by Jim, the Water Pump Expert
Hi Jim,
I am looking for a replacement well pump for a vacation home located in northern/lower Michigan.
The current model details:
Wagner 1-1/2 hp
Model #056-40250-01
Type RK
3450 RPM
115 Volts
14.8 Amps
The pump unfortuantely is over 60yrs old and has cracks in the housing. The pump was used for years at the family's cabin but in 2002 was re-installed with the new constrution (same well though). It has been a great pump and I am having a hard time finding the same HP pump. Our well depth is 150ft.
Any advise you can lend would be greatly appreciated.
Thank you.
Sheryl
from Michigan
March 28, 2011
