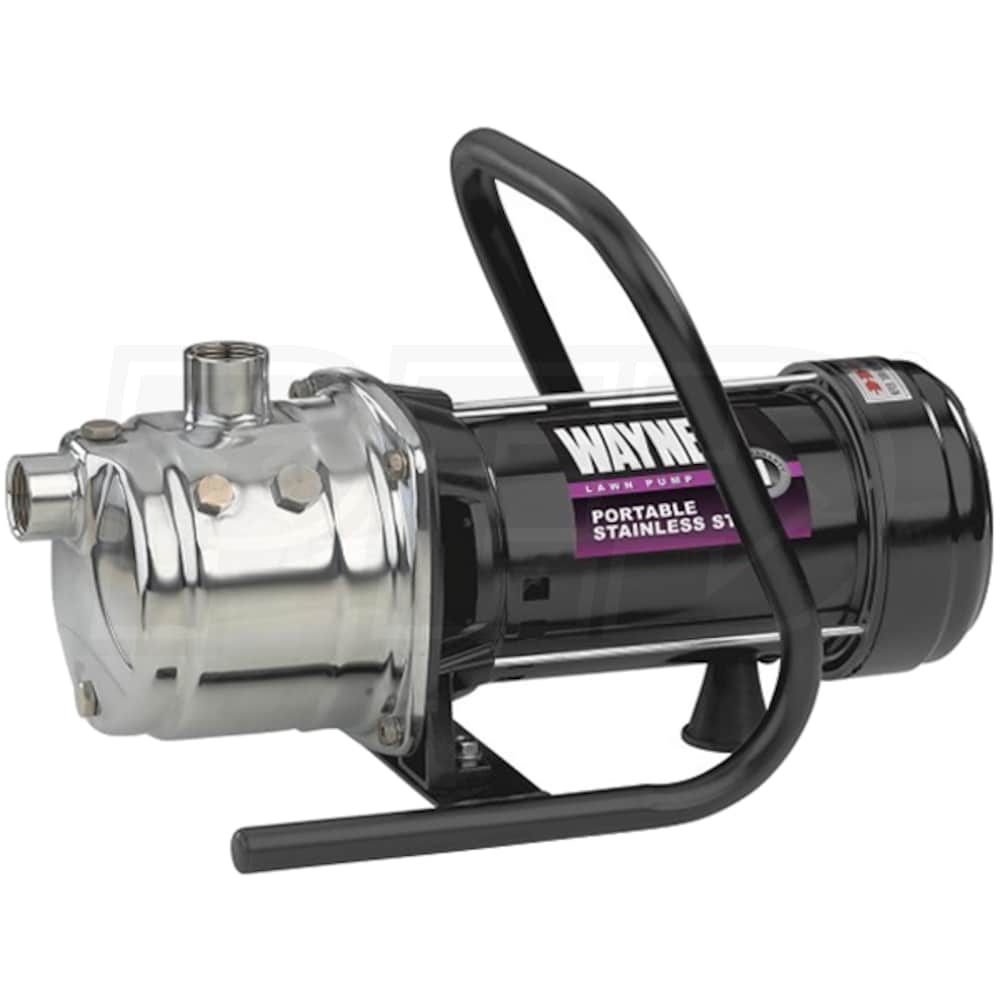

Wayne PLS100 - 14.1 GPM 1 HP Stainless Steel Portable Sprinkling Pump

Model:

PLS100

Write A Review
$295.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Thursday, Jan 23rd
Shipping to43085

Wayne PLS100 - 14.1 GPM 1 HP Stainless Steel Portable Sprinkling Pump
Wayne PLS100 - 14.1 GPM 1 HP Stainless Steel Portable Sprinkling Pump
Model: PLS100
$295.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals

Features

Inlet Size

1 Inch

Style

Sprinkler

GPM

14.16 Gallons

  • Stainless Steel Design With Automatic Thermal Protection
  • Built to last, threads resist stripping
  • Fan-Cooled, Continuous-Duty 120 Volt Motor
  • Powerful 1 HP pump draws water up to 20 feet
  • 1" NPT Suction/Discharge
  • 3/4" Garden Hose Adapter Included
  • Easy Carry Handle For Portability
  • Clear standing water or use pond water on your garden
  • Empty or fill pools and stock tanks
  • Maintains Pressure Up To 60 PSI
  • Moves up to 850 gallons per hour from one place to another
  • Use The Highest Amp-Rated Cord Possible With This Unit
  • Small extension cords can cause overheating
  • 1-Year Warranty
California residents see
Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

PLS100
specs product image PID-2771
General Information
Product Category
Water Pump
Motor
Voltage
120 Volt
Running Amps
9
Pump
Gallons Per Minute
14.16 Gallons
Inlet Diameter
1 Inch
Outlet Diameter
1 Inch
Pump Head Material
Steel
Housing Material
Stainless Steel
Impeller Material
Plastic
Suction Head
20 Feet
Maximum PSI
60
Total Head Lift
150 Feet
Submersible
No
Engine
Continuous Operation
Yes
Horsepower
1 HP
Overview
Product Category
Water Pump
Weight
23 Pounds
Consumer Warranty
1 Year
Product Length
18 Inches
Product Width
8 Inches
Product Height
11 Inches
UPC
040066207135
Accessories
Transport Handle
Yes

Reviews

(21)
Wayne PLS100 Reviews & Ratings
Customer Rating
3.43
(21 Ratings)
5
(6)
4
(7)
3
(1)
2
(4)
1
(3)
Verified Buyer
Verified Buyer
Lawn Sprinkler
By Donald M
Pennsylvania
Purchased 05/26/2023 |
Review Posted 07/08/2023
This pump pumped water from my pond up 300' of garden hose and ran my lawn sprinkler as intended.
Donald M Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use
Cons:
None
Wayne Pump
By Mike D
Texas
Review Posted 09/06/2022
Ordered this pump to use on a shallow water well. Primed the pump and I works great. Very quite running pump.
Mike D Recommends This
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
3/5
icon-review-marker
Pros:
Easy To Use, Price, I'd Buy It Again, Easy To Store
Cons:
None
Lasted Less Than A Year
By Shane M.
Avon, Minnesota
Review Posted 07/21/2021
Purchased this unit last summer to water a new section of lawn. It ran well for a few weeks and then I drained it and stored it in a heated garage for the summer. This summer when I went to start it, the motor was seized. I was able to loosen it and get it running, but after a couple of weeks it began to overheat and then began dropping broken pieces of fin on the platform it sits on. It ran well when it did, but the overall quality for what I paid is terrible.
Shane M. Does Not Recommend This
Was this review helpful?
Expert Response
Very sorry you had issues with your pump. Typically, the damaged you described is a result of debris getting into the pump body. Unfortunately this can happen with any pump. Wayne provides a 1-Year Warranty on this pump and can be contacted directly @ (800) 237-0987
Dale, the Power Equipment Expert
Dale V.
Power Equipment Expert
Rating Breakdown
Features
3/5
icon-review-marker
Quality
1/5
icon-review-marker
Performance
1/5
icon-review-marker
Value
1/5
icon-review-marker
Cons:
Durability, Unreliable, Low Quality
Verified Buyer
Verified Buyer
Did Already 2 Times ! Come On .... Aske Me Again And Again
By Steven N.
Walla Walla, Washington
Purchased 05/14/2021 |
Review Posted 06/07/2021
How many times do i have to say it !! wrote a review 2 times already. enough already..
Steven N. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Exceeded Expectations
Verified Buyer
Verified Buyer
Not Sure What ToThink
By Gwendy H.
Boulder, Colorado
Purchased 08/02/2020 |
Review Posted 08/25/2020
We bought this pump to replace one that died and it is being used for a sprinkler system off of an irrigation ditch. I have not been able to even use it yet. We hooked everything up and it runs nice and quiet but we couldn't ever get it to actually pump any water. The priming port is in a really crappy spot and difficult to fill and prime to get water to pull. We made the attempt three times were never successful and now there is no water in the irrigation ditch. I am not sure yet if I will send it back or not as I can't figure out if it is defective or if we have another issue. Very frustrated at this point... don't really recommend as like I said I can not get it to work right. I messaged customer support before I purchased to make sure I got the correct pump and NEVER got an answer. I work sixty hours a week and do not have time to play with the pump for hours to get it to work... The last pump took less than five minutes to set up.
Gwendy H. Does Not Recommend This
Was this review helpful?
Expert Response
Very sorry to hear you're having problems with your water pump. We rarely see any issues with these Wayne pumps, so the chance of a defective pump is usually very low. For troubleshooting issues, Wayne can be reached directly @ (800) 237-0987.
Dale, the Power Equipment Expert
Dale V.
Power Equipment Expert
Manufacturer Response
We are very sorry that you are experiencing issues with your PLS100. Please reach out to us at (800) 237-0987 so that one of our support staff can walk you through setup and help determine if you received a defective unit. We look forward to speaking with you.
Wayne
Rating Breakdown
Features
1/5
icon-review-marker
Quality
1/5
icon-review-marker
Performance
1/5
icon-review-marker
Value
1/5
icon-review-marker
Pros:
Quiet
Cons:
Difficult To Use, Bad Instructions, position of priming port
Verified Buyer
Verified Buyer
Works Well As A Circulation Pump
By Christopher H.
Floyd, Virginia
Purchased 08/08/2019 |
Review Posted 09/10/2019
After quite a bit of research i settled on this pump to build a recirculating water system for a counterflow chiller system at a small coffee beverage operation. The pump pushes just fine on a roughly 475 foot loop of 1" pipe, with a 15-20' head and about 18' of coiled ID pipe reduction to 3/8" (pulling from three linked ibc totes.) I'm impressed enough to order another one for a similar system. And the other reviews are right, this thing is very quiet.
Christopher H. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
4/5
icon-review-marker
Pros:
Quiet, Easy To Use, High Quality, I'd Buy It Again
Verified Buyer
Verified Buyer
Not Sure What To Think
By Mark S.
PALMYRA, Virginia
Purchased 06/27/2019 |
Review Posted 07/19/2019
I recently purchased this to replace one that had worn out. No idea how old it was but it looked in decent shape. I understand much like a pool pump they don't last forever. In this case it is used to pull water from a lake to spray my lawn. The old one worked okay, not great. The replacement was virtually useless except maybe to spay a plant with a garden hose. Unfortunately, it was money down the drain. I then purchased a Wayne 1.5 HP arriving today so who knows at this point.
Mark S. Does Not Recommend This
Was this review helpful?
Rating Breakdown
Features
2/5
icon-review-marker
Quality
2/5
icon-review-marker
Performance
1/5
icon-review-marker
Value
2/5
icon-review-marker
Pros:
Light Weight
Affordably Priced, Makes A Great Booster Pump, But Overheats In
By David O.
Sarasota, Florida
Review Posted 06/15/2019
I purchased this in 2016 as a lawn sprinkler *Booster* Pump - something it is not advertised for. Its sits at the end of 350' of pipe from a deep well 1 1/2HP 25 GPM pump at 60 PSI. This Wayne pump moves the water another 400' to the sprinkler heads. With this Wayne pump, my pressure increased to 60 PSI from 40 PSI at the sprinkler heads, and flow increases to 20 GPM from 13 GPM at the furthest sprinkler heads. It works very well as a booster pump, moving the water faster, at higher volumes and at higher pressure, beyond its specifications. 20 PSI increase means about 15' further each sprinkler head can spray, reducing watering time and uneven coverage. The pump is very quiet when running.

The only thing preventing me giving it 5 stars, is that it overheats in hot weather, resulting in an 70-80% duty cycle, while it shuts down to cool off. (eg. 20 mins on, 5 mins off) I have it installed in the shade, under trees and powered by a dedicated 20A 120v circuit with 12 gauge wiring right to the pump, so I don't believe low voltage is the issue. Hot weather shut off seems to be above 81 degrees F. It will run continuous duty in the cooler evenings, and overnight when temp is 72ish degrees or cooler. I can use the sprinkler timer to work around this issue, but it would be nice to rely on the pump in hot dry day time watering too.
David O. Recommends This
Was this review helpful?
Expert Response
This pump is designed for light duty applications. You might consider a hardwired sprinkler pump which will provide a higher duty cycle compared to this pump.
Dale, the Power Equipment Expert
Dale V.
Power Equipment Expert
Rating Breakdown
Features
3/5
icon-review-marker
Quality
3/5
icon-review-marker
Performance
4/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Price, Quiet, Easy To Use, Easy To Store
Cons:
Durability
Verified Buyer
Verified Buyer
Good For Garden Hose
By Geoffrey L.
Washougal, Washington
Purchased 07/04/2017 |
Review Posted 07/26/2017
Got the 1" pump to keep the wife happy not running my 1" gasoline pump, she says it is too loud early morning and late night (some times that ends up watering time). Good flow through a 3/4" water hose, but not enough to use with my 1" forestry fire hose. Got to fire up the gasoline for that. It is much quieter, so the wife is happy.
Geoffrey L. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
3/5
icon-review-marker
Value
4/5
icon-review-marker
Pros:
Price, Quiet, Light Weight, Easy To Use
Cons:
not 1
Verified Buyer
Verified Buyer
Watering From The Lake
By Paul M.
Lake, Michigan
Purchased 04/26/2017 |
Review Posted 06/07/2017
I got this pump to water are lawn and flowers from the lake we live on. It works great, has great water pressure. Runs the sprinkler, puts the water out over 50'. I put a one way shut off valve on the input pipe and have used up to 100' hose on the output. This is a great pump to water your yard with.
Paul M. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Price, Light Weight, Quiet, Exceeded Expectations

Product Q&A

(1)
Expert avatar photo
Product Questions Answered by Jim, the Water Pump Expert
I am looking for a pump to transfer water from a 250 gallon tank to a hose to do hand watering. I am worried about over pressuring the hose when you want to turn the nozzle off for a few minutes while you move around.
Bob Schmitt
from North Carolina
June 29, 2016
