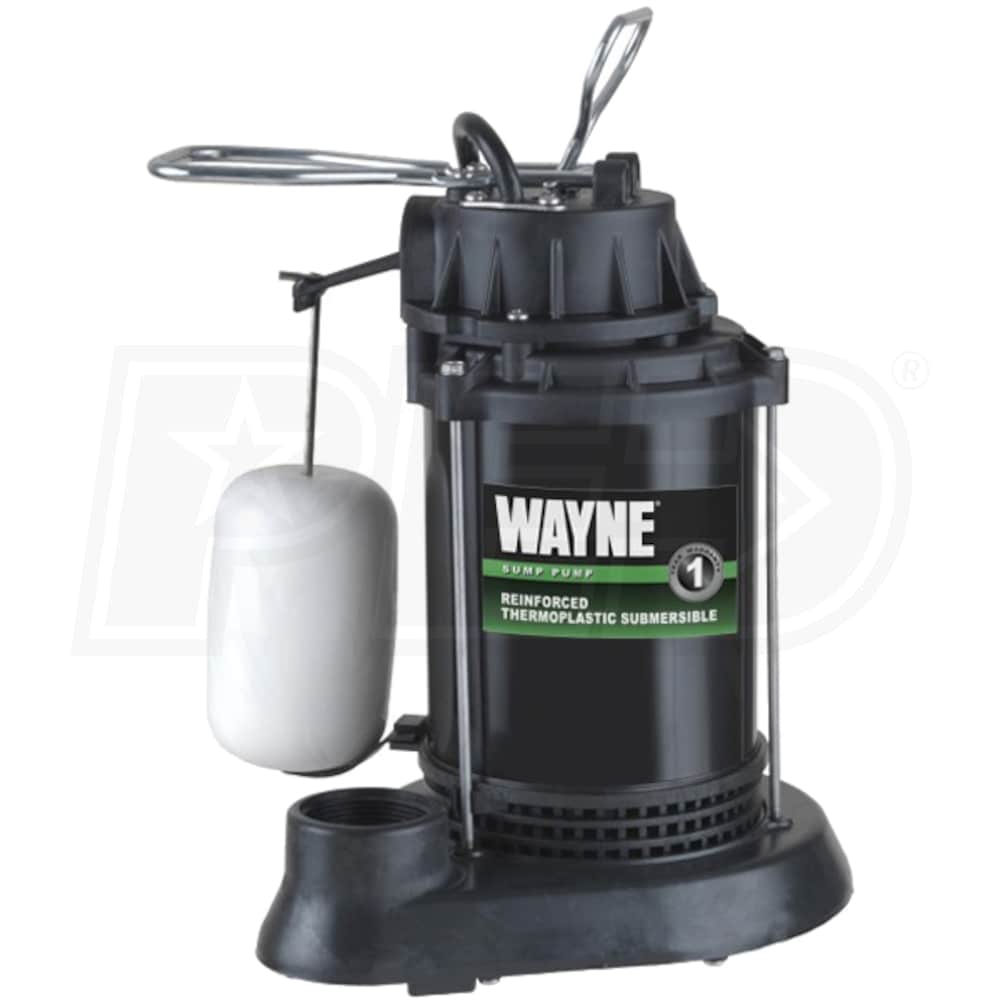

Wayne SPF33 - 1/3 HP Thermoplastic Submersible Sump Pump w/ Vertical Float Switch
Model:
SPF33
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Primary
GPH
3750 Gallons
Switch Type
Vertical
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Wayne SPF33 1/3 HP Automatic Submersible Sump Pump
- Assembled in the US with foreign and domestic parts
- The Hardest Working Pumps, You'll Never Hear™
- Energy efficient motors & engineered design provide an ultra quiet experience
- Epoxy-Coated Steel & Reinforced Thermoplastic Construction
- Rugged, corrosion-resistant design provides long life in sump applications
- 1/3 HP, Thermally Protected 120V PCS Motor
- Energy efficient, oil-filled design, for quiet operation and extend motor life
- Integrated, Guard-Protected Vertical Float Switch w/ Solid Polypropylene Float
- Prevents switch hang-ups from debris for reliable automatic operation
- Tested to 1 million cycles*; For performance that lasts
- Unique Top Suction Design Reduces Clogging
- Prevents air lock occurrences and eliminates needs for a "weep hole"
- Glass Reinforced Polycarbonate Impeller
- Abrasion resistant design provides efficient and reliable output
- 1-1/2" NPT Discharge
- Complies with building-codes for residential applications
- Upper and Lower Ball Bearings
- Sealed oil-bath engineering for increased lifespan and virtually silent operation
- Premium John Crane Carbon/Ceramic Shaft Seals & Cast Iron Seal Plate
- High-quality components helps prevent leaks and galvanic corrosion
- Designed For Use In 11-Inch or Larger Sump Basins
- 8-Foot, water-resistant power cord for easier access to power outlet
- *WAYNE Water Pumps Exceed an Average 1 Million Test Cycles
- 1-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
SPF33
General Information
Product Category
Sump Pump
Base
Base Material
Thermoplastic
Min Sump Basin Size
11 Inch
Motor
Voltage
120 Volt
Running Amps
3.65
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
No
Starting Amps
19
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Float Type
Vertical Float

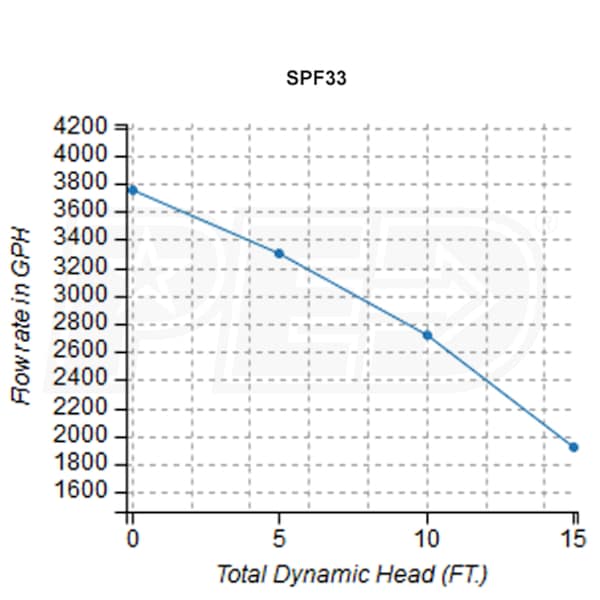

GPH @ 0 feet
3750
GPH @ 5 feet
3300
GPH @ 10 feet
2718
GPH @ 15 feet
1920
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
9 Inches
Float Off
4 Inches
Manual Override
No
Submersible
Yes
Engine
Horsepower
.33 HP
Overview
Product Category
Sump Pump
Weight
12 Pounds
Consumer Warranty
1 Year
Product Width
9.75 Inches
Product Height
11.5 Inches
UPC
040066203649
