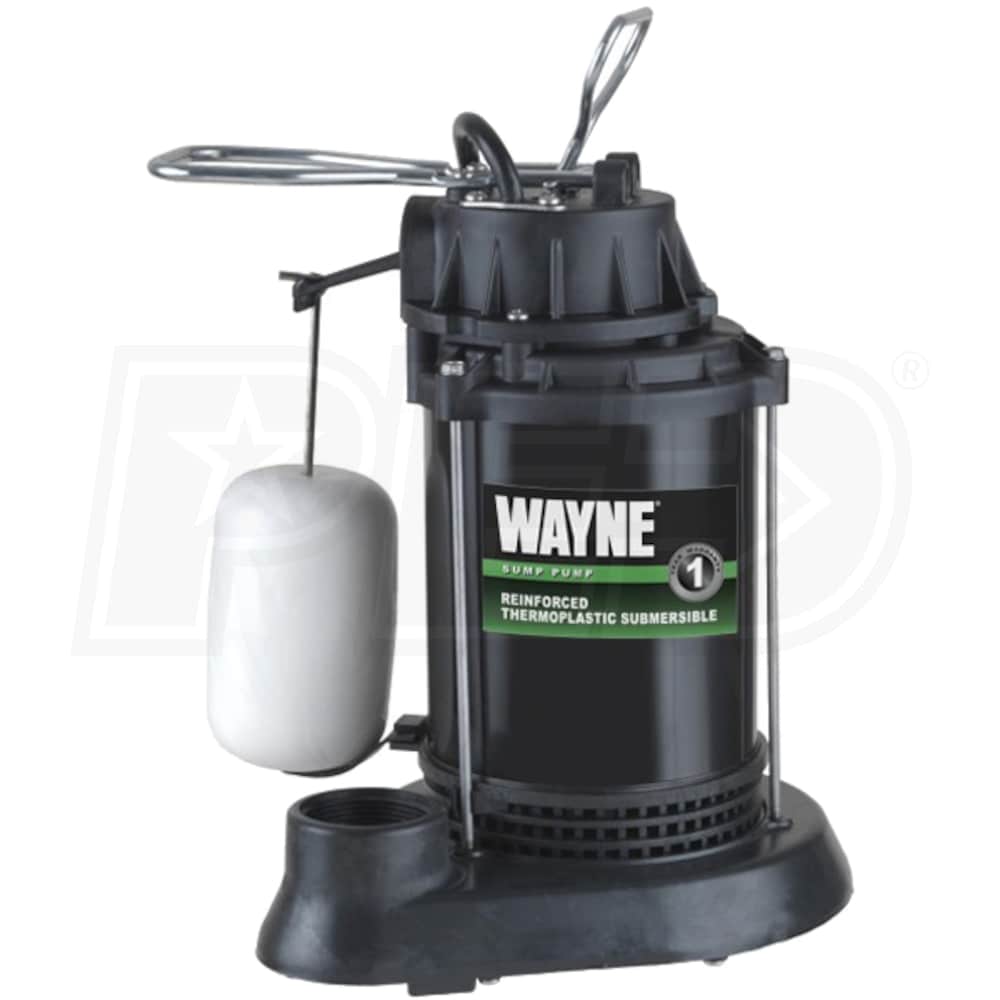

Wayne SPF33 - 1/3 HP Thermoplastic Submersible Sump Pump w/ Vertical Float Switch

Model:

SPF33

Write A Review
$150.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Nov 25th
Shipping to60601
Wayne SPF33 - 1/3 HP Thermoplastic Submersible Sump Pump w/ Vertical Float Switch
Wayne SPF33 - 1/3 HP Thermoplastic Submersible Sump Pump w/ Vertical Float Switch
Model: SPF33
$150.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Primary

GPH

3750 Gallons

Switch Type

Vertical



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Wayne SPF33 1/3 HP Automatic Submersible Sump Pump
  • Assembled in the US with foreign and domestic parts
  • The Hardest Working Pumps, You'll Never Hear™
  • Energy efficient motors & engineered design provide an ultra quiet experience
  • Epoxy-Coated Steel & Reinforced Thermoplastic Construction
  • Rugged, corrosion-resistant design provides long life in sump applications
  • 1/3 HP, Thermally Protected 120V PCS Motor
  • Energy efficient, oil-filled design, for quiet operation and extend motor life
  • Integrated, Guard-Protected Vertical Float Switch w/ Solid Polypropylene Float
  • Prevents switch hang-ups from debris for reliable automatic operation
  • Tested to 1 million cycles*; For performance that lasts
  • Unique Top Suction Design Reduces Clogging
  • Prevents air lock occurrences and eliminates needs for a "weep hole"
  • Glass Reinforced Polycarbonate Impeller
  • Abrasion resistant design provides efficient and reliable output
  • 1-1/2" NPT Discharge
  • Complies with building-codes for residential applications
  • Upper and Lower Ball Bearings
  • Sealed oil-bath engineering for increased lifespan and virtually silent operation
  • Premium John Crane Carbon/Ceramic Shaft Seals & Cast Iron Seal Plate
  • High-quality components helps prevent leaks and galvanic corrosion
  • Designed For Use In 11-Inch or Larger Sump Basins
  • 8-Foot, water-resistant power cord for easier access to power outlet
  • *WAYNE Water Pumps Exceed an Average 1 Million Test Cycles
  • 1-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

SPF33
specs product image PID-2454
General Information
Product Category
Sump Pump
Base
Base Material
Thermoplastic
Min Sump Basin Size
11 Inch
Motor
Voltage
120 Volt
Running Amps
3.65
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
No
Starting Amps
19
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
3750
GPH @ 5 feet
3300
GPH @ 10 feet
2718
GPH @ 15 feet
1920
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
9 Inches
Float Off
4 Inches
Manual Override
No
Submersible
Yes
Engine
Horsepower
.33 HP
Overview
Product Category
Sump Pump
Weight
12 Pounds
Consumer Warranty
1 Year
Product Width
9.75 Inches
Product Height
11.5 Inches
UPC
040066203649
