Features
Inlet Size
1-1/4 Inch
Style
Shallow Well
GPM
8.5 Gallons
- Wayne Cast Iron Shallow Well Jet Pump
- Assembled in the US with foreign and domestic parts
- Designed For Wells 0' - 25' In Depth

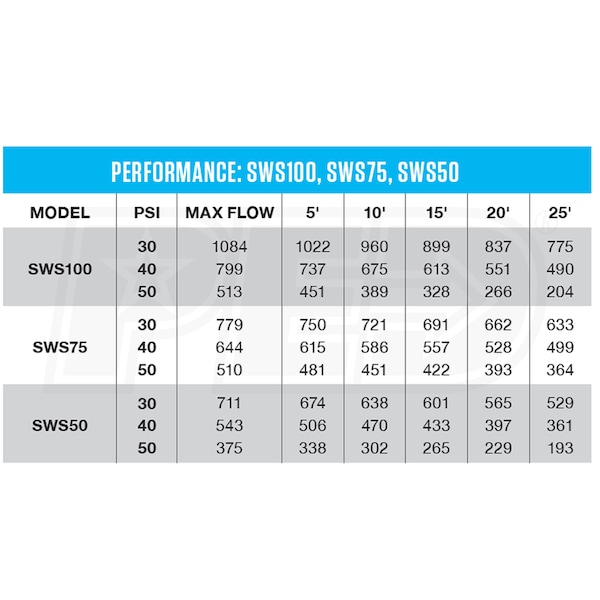

- Pumps up to 481 GPH @ 5' Depth - (50 PSI)
- All Cast Iron Motor Housing
- Rugged, corrosion-resistant design provides longer pump life
- 3/4 HP Dual Voltage Motor (120/240V)*
- Energy efficient, thermally protected design
- Thermoplastic Impeller
- For maximum water flow and reliable operation
- Includes Pre-Set Pressure Switch
- Set at 30-50 PSI for automatic operation
- 1-1/4" NPT Intake & 1" NPT Discharge
- Easily connect to existing system
- Dedicated Priming Port
- Makes this pump very easy to use
- *Note - No Power Cord Included
- 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
SWS75
General Information
Product Category
Water Pump
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
8.5 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1 Inch
Housing Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
50
Submersible
No
Engine
Continuous Operation
No
Horsepower
0.75 HP
Overview
Product Category
Water Pump
Weight
43.6 Pounds
Consumer Warranty
3 Years
Product Length
24 Inches
Product Width
12.5 Inches
Product Height
8 Inches
UPC
040066106131
Reviews
(3)
Wayne SWS75 Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Jim, the Water Pump Expert
How-To Articles
How to Pick the Perfect Well Pump
Using centrifugal force, a well pump shoots water from its underground reservoi...
Priming Your Well Pump
Well pumps have been around for centuries, but the days of using a bucket and r...
How to Pick the Perfect Specialty Water Pump
All water pumps are built for the same purpose: moving water. But there are sp...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

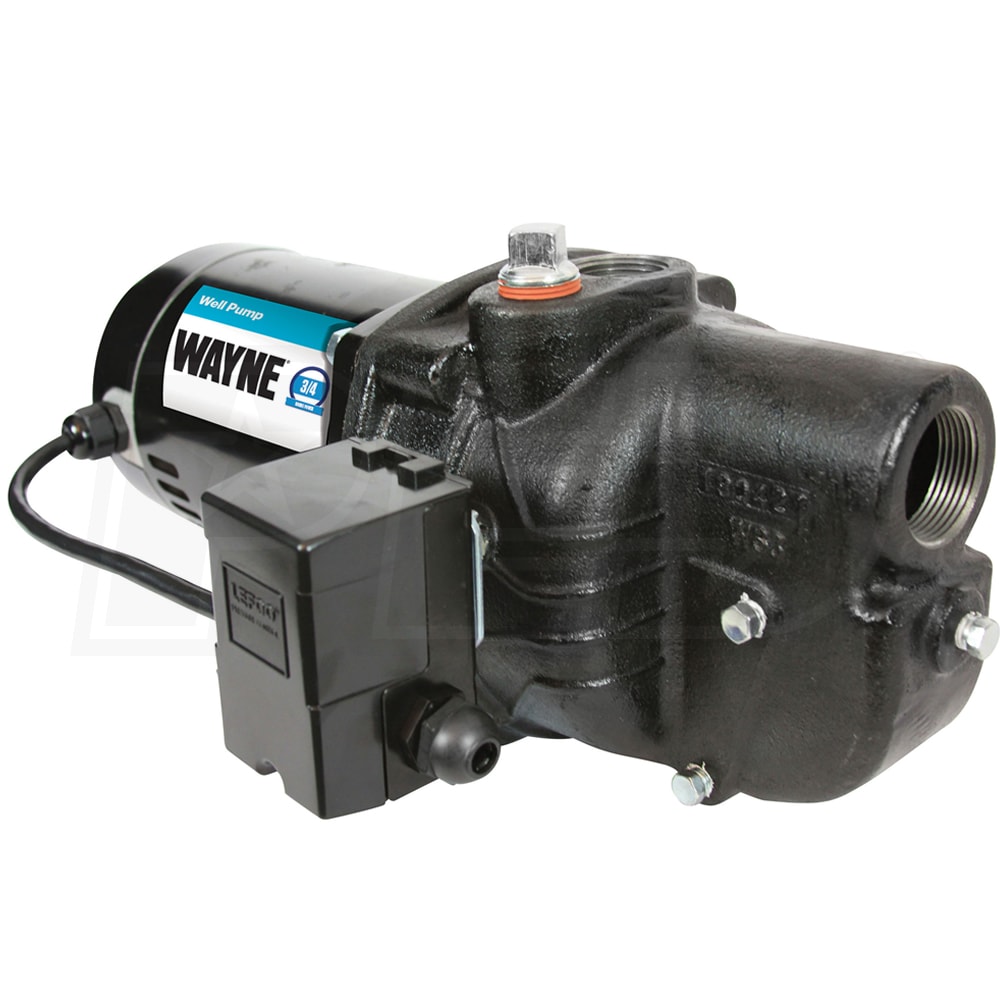

Wayne SWS75 - 3/4 HP Cast Iron Shallow Well Jet Pump
