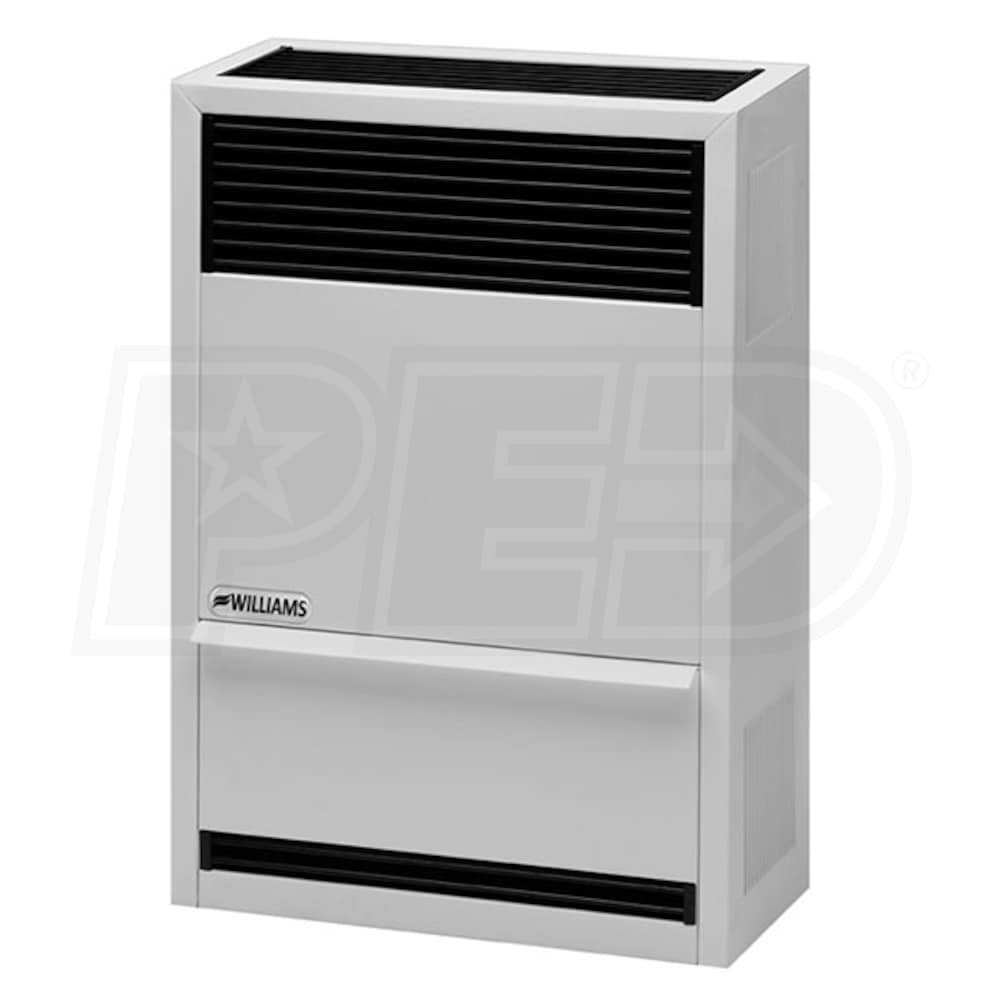

Williams Direct-Vent - 14K BTU - Gas Direct-Vent Wall Furnace - NG - 65% AFUE - Up To 2,000 Ft Altitude
Model:
1403822
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Space-Saving Size
- The direct vent model is a low-profile furnace that can fit in just about any space. Having a unique wall mount design, this furnace requires no floor space.
- No Electricity Needed
- During power outages, you have a lot to worry about, but your furnace won't be one. The Direct-Vent furnace requires no electricity for operation.
- Sealed Combustion
- Rather than using indoor air to fuel combustion, the Williams direct vent pulls intake air directly from the outdoors. This means the heat your furnace generates isn't fed back into the system, maximizing efficiency.
- Easy Installation
- The Williams Direct Vent furnace mounts directly on the outside-facing wall. Venting is accomplished through a single 9" opening to the outdoors and vent materials that will accommodate most installations are included.
- Product Includes
- Williams Direct-Vent Furnace
- All Vent Materials Needed for a 9" Thick Wall
Williams' Direct-Vent Wall Furnace makes heating any home easy. The Direct-Vent model is attractive and economical with a slim design taking up minimal space. Safety is no worry with this furnace, having a matchless pilot igniter and sealed combustion chamber requiring no inside air. The soft white, scratch-resistant coating can blend in nicely with any homes decor.
Product Note
A thermostat does not come included with this unit and is required. The Williams P322016 thermostat is compatible and can be found under the "Accessories" tab. Alternatively, any standard millivolt thermostat can be used.
California residents see
Warning: This product can expose you to chemicals including Epichlorohydrin which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
1403822
Overview
Product Category
Furnace
UPC
093909299064
General Information
Type
Gas Wall Furnace
Product Line
Direct-Vent
Product Category
Furnace
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Wall
Gas Conversion Kit
Available
Color
White
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
65 %
Heating BTU
14000
High Fire Input
14000 BTU
High Fire Output
9800 BTU
Dimensions
Gas Connection Size
1/2 Inch
Product Height
26 1/4 Inches
Product Width
18 Inches
Product Depth
7 1/8 Inches
Product Weight
51 Pounds
Shipping Weight
56 Pounds
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
Limited 10 Years
