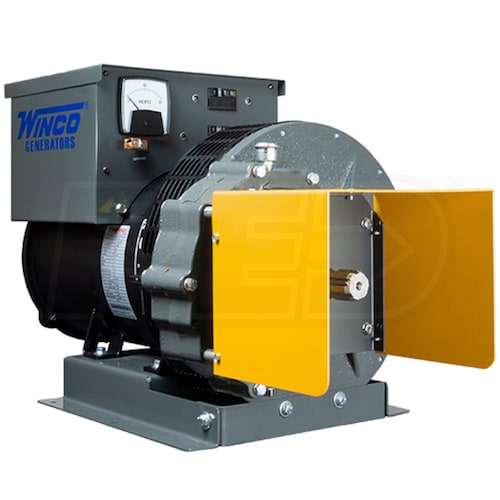

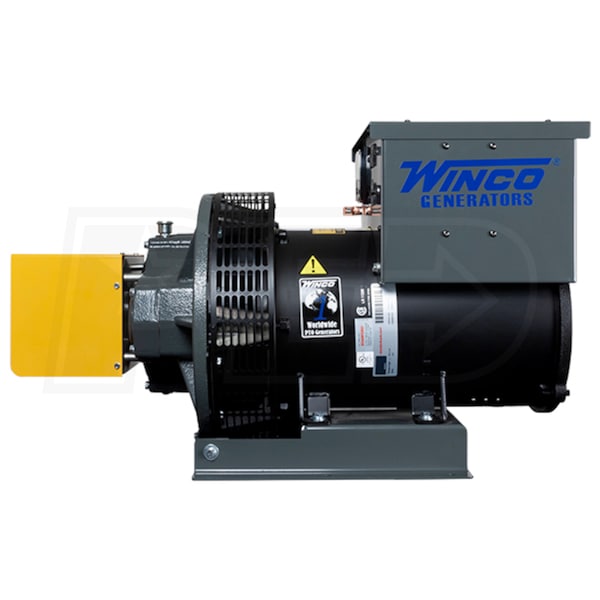

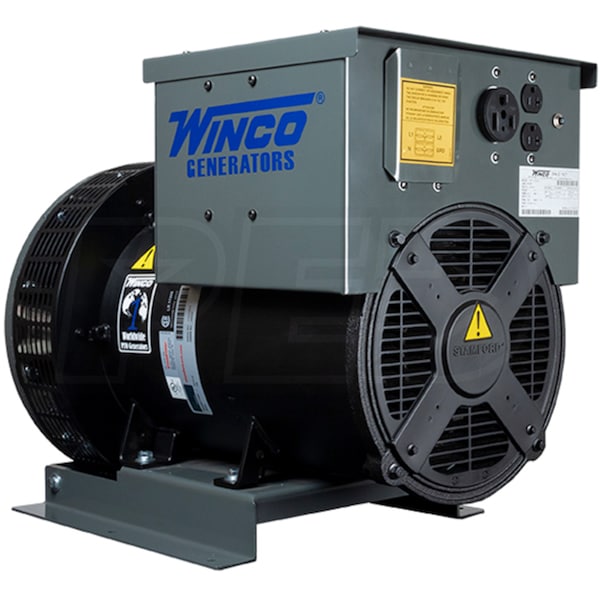

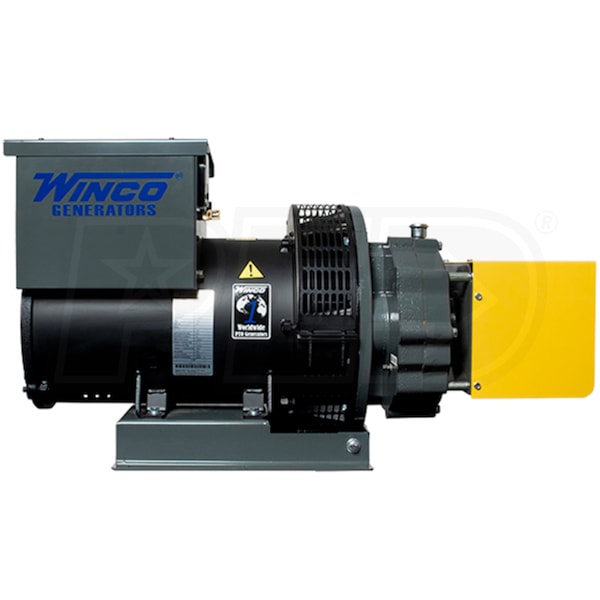

Winco 27PTOC4-03 - 27 kW Tractor-Driven PTO Generator (540 RPM)

Model:

202754-031

Write A Review
$4,940.40
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Thursday, Nov 28th
Shipping to60601

Winco 27PTOC4-03 - 27 kW Tractor-Driven PTO Generator (540 RPM)
Winco 27PTOC4-03 - 27 kW Tractor-Driven PTO Generator (540 RPM)
Model: 202754-031
$4,940.40
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

PTO

Run Watts

27,600 Rated Watts

Voltage

120/240 Single-Phase

  • Convert Your Tractor Into a Generator
  • Use your tractor engine to generate electricity
  • Requires 54 PTO HP to operate properly
  • Multiple Applications
  • Generate electricity to power tools on the farm or ranch
  • Backup your home, barn or buildings during a power outage
  • Mainline Circuit Breaker
  • Protects generator and appliances from overload
  • Large Voltmeter
  • Easily monitor your power usage right from your tractor seat
  • Cast Iron Gear Case
  • Rugged, high-quality material designed to weather the outdoors
  • Full Power Anderson Style Receptacle (Includes Anderson Plug)
  • Perfect for hooking up a manual transfer switch
  • 1-3/8" 6-Spline Keyed Connection
  • Designed for the Winco 540 RPM tumbling bar (54326-1)
  • Mobility
  • Transport your PTO generator with a trailer (sold separately)
  • 3-Year Warranty
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer, and Ethylene glycol (ingested) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (Wall-Type)
NEMA 6-50R
Full Power Receptacle
202754-031
specs product image PID-100809
General Information
Product Category
Generator - PTO
Overview
Product Category
Generator - PTO
Weight
452 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Product Style
PTO Generator
Product Length
37 Inches
Product Width
21 Inches
Product Height
24.3 Inches
Additional Model Numbers

27PTOC4-03, 202754-031

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
27600 Watts
Rated Amps
98-115 Amps
Voltage Meter
Yes
Tractors HP
54 HP
PTO RPMs
540 RPM
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 6-50R
1
Full Power Receptacle
1

Reviews

(3)
Winco 202754-031 Reviews & Ratings

Product Q&A

(1)
Expert avatar photo
Product Questions Answered by Jared, the Generator Expert
Will a 43 horsepower tractor operate this generator?
Jack
from Louisiana
August 28, 2020
