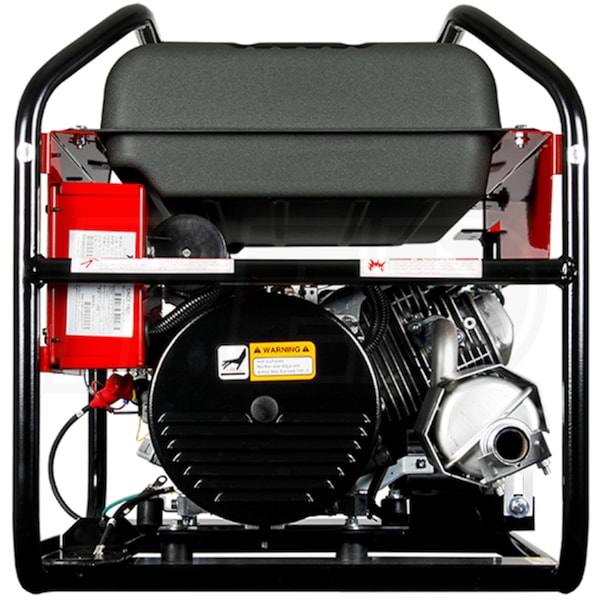

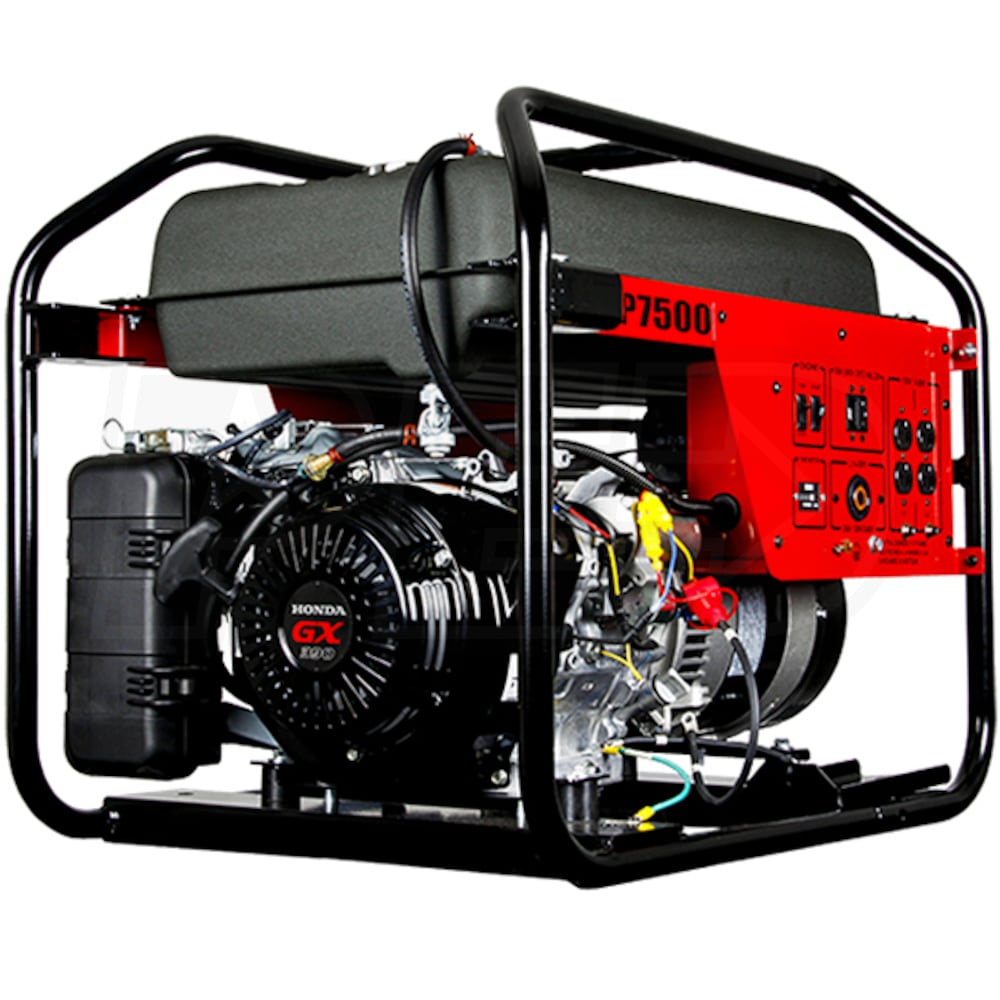

Winco DP7500HE-03/A - Dyna Professional 7500 Watt Electric Start Portable Generator w/ Honda GX Engine (49-State)
Model:
29007-004
+
Share This Product
Similar Products
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Optional Accessories
14
Model: PC3020M
$72.99
In-Stock
$76.50
In-Stock
$39.99
Factory-Direct
$63.99
Only 3 In-Stock
Model: 10W30
$7.25
In-Stock
Model: 08732-0800
$6.50
In-Stock
Model: EGD-RELIANCEQ310KIT
$490.99
In-Stock
$50.49
In-Stock
Model: THP103
$44.99
In-Stock
Model: 16199-039
$257.60
Factory-Direct
$30.99
Factory-Direct
Model: 2589SW0002
$96.99
Factory-Direct
Features
Grade
Professional
Style
Portable
Run Watts
6,720 Rated Watts
Surge Watts
7,500
Starting Watts
Fuel
Gasoline
Engine
Honda GX
- Winco DP7500 DYNA Professional Series Portable Generator
- A great addition to any work crew or master craftsman's garage
- Electric Start (Battery Not Included) w/ Recoil Backup
- Allows for easier starting on the jobsite
- Flywheel-mounted charger keeps battery charged when engine is running

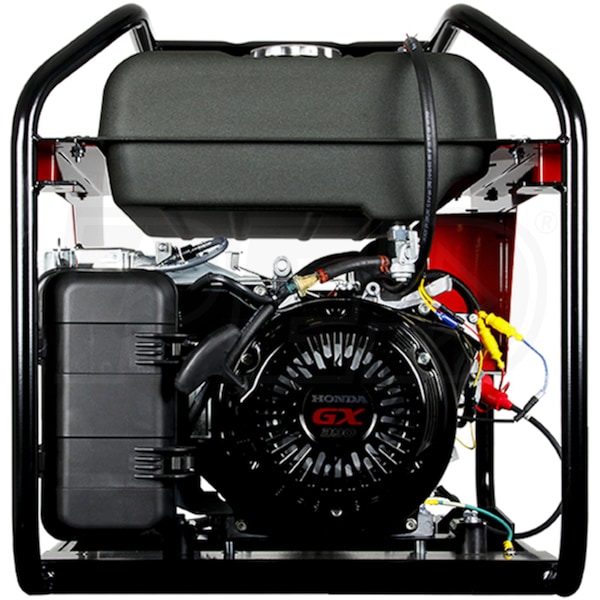

- 389cc Honda GX390 OHV 4-Cycle Engine
- OHV design for increased efficiency and optimal power transfer
- Automatic mechanical decompression allows for easier starting
- Low Oil Protection
- Shuts engine down in the event of a low oil event to prevent engine damage
- Capacitor Regualted Voltage - < 5% Total Harmonic Distortion (THD)
- Helps prevent damaging voltage spikes that can harm tools and equipment
- Full Panel GFCI Protection - OSHA Compliant
- Must use GFI type manual transfer switch for panel connection
- Not for use with interlock kit
- 8-Gallon Steel Fuel Tank w/ Fuel Gauge
- Provides up to 7 hours run time @ 100% load
- EPA approved design eliminates carbon emissions
- 30A L14-30R (120/240V) Receptacle
- Provides the ability to power 30A tools and equipment
- 30-Amp Main-Line Circuit Breaker
- Provides superior overload protection
- Control Panel Mounted Hour Meter
- Easily monitor run time and track maintenance intervals
- Wrap-Around 1" Tubular Steel (14-Gauge) Cradle
- Powder-coat paint protects finish from damage and debris
- Includes lifting-eye for easier generator placement on the job site
- 100% Load Tested
- All generators are tested prior to leaving the factory
- Requires BCI 20 OR 24HL 300CCA Battery (Not Included)
- EPA Compliant
- 3-Year Engine & 3-Year Generator Warranty
Specifications
Plug Types
29007-004
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Weight
190 Pounds
CARB Compliant
No
Certification
EPA
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
29 Inches
Product Width
21.5 Inches
Product Height
23.6 Inches
Additional Model Numbers
DP7500, 29007-004
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
6720 Watts
Surge Watts
7500 Watts
Fuel Type
Gasoline
Rated Amps
28 Amps
Tank Size
8 Gallons
Fuel Tank Material
Metal
Fuel Gauge
Yes
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
CO Sensing
No
Low THD
Yes
Engine
Engine Brand
Honda GX
Starting System
12-Volt Button Start w/ Recoil
CC
389 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-30R
1
Reviews
(2)
Winco 29007-004 Reviews & Ratings
Edit To Only My Original And Only Review Here - VB
By VB
North Carolina
Purchased 03/29/2023 |
Review Posted 02/20/2025
This machine has become the proverbial albatross around my backup energy system. In a nutshell, the carburetor clogged, despite my use of non-ethanol gas and running 'til the gas ran out of the carburetor. Fixed that issue only to find that the NEW 550 amp cold crank battery, does NOW not have enough cranking power to start this thing. Have to use my 1500amp master pac battery jump box to crank this thing, as the starter drains the battery in one minute!!!!!!!!! It will now only start with starter fluid spray!!!!!!!!!!!!!! This generator does not charge the battery while running, so a trickle charger is required to keep the battery charged, which I found out is useless since a few cranks of the electric start drains the battery!!!!!!!!!! I have to change my recommendation to a BIG "DO NOT BUY"!!!!
VB Does Not Recommend This
Was this review helpful?
Expert Response
Very sorry you're having issues with your generator. Winco provides a 3-Year Warranty on this model. For warranty support, Winco can be reached directly at (507) 357-6831
Dale V.
Power Equipment Expert
Manufacturer Response
Hello Vb, your feedback has been sent to our service department for review. Please reach out to our team at 507-357-6831 for assistance.
Rating Breakdown
2/5
1/5
1/5
1/5
Winco DP7500HE-03/A - Dyna Professional
By VB
North Carolina
Purchased 03/29/2023 |
Review Posted 04/12/2023
Ordered on 3/29/23 and received on 4/10. Upon delivery I immediately cut open the box and inspected for damage. None observed. The driver, from R&L Carriers, even helped me slide this puppy onto my Gorilla cart from the lift gate. Once I added non-ethanol gas and filled with oil, I connected the battery, turned on the gas cock, pressed run to "on" and pushed the start button. Took a few tries but started easily and the Honda 390 engine purred. Let it run for 5 minutes, then I had to do a quick test to see if it ran my whole house.
Hooked this up to the house, turned off the main breaker along with all the others and started it up. Then, I started to turn on the breakers I knew I'd need if the power ever failed. These included: 40 gallon water heater, washing machine, dryer, 3 computers, 65 inch tv plus 750 watt surround sound amp, 2 fridges and 2 upright freezers, 3 ceiling fans and a dozen led lights in the house and one 5000 btu room ac for which I ran for about 2 minutes. I only ran the dryer for a minute and the same for the washer. I did not run these at the same time. This generator handled them perfectly. After 10 minutes, I stopped the test.
I was really pleased with how this worked and with the peace of mind I'll have with backup power if the grid goes down. I only use non-ethanol gas, as ethanol contains water that can corrode the carb along with other parts. Besides, if ethanol gas sits too long, the water will separate out and sink, meaning that water will be the 1st thing through the hose when ya try to start it.
The shipping company R&L was great. They provided me with a shipping number and the driver helped me load it onto my cart. All in all, this was a great experience. Electric Generators Direct was great to order from and they had the cheapest price, which included delivery and lift gate service. This generator weighs 190lbs and produces 7500 surge watts and 6720 running watts, which should be more than enough power to run most homes. You can easily hook this up to your home using a Home Generator Interlock Kit.
Hooked this up to the house, turned off the main breaker along with all the others and started it up. Then, I started to turn on the breakers I knew I'd need if the power ever failed. These included: 40 gallon water heater, washing machine, dryer, 3 computers, 65 inch tv plus 750 watt surround sound amp, 2 fridges and 2 upright freezers, 3 ceiling fans and a dozen led lights in the house and one 5000 btu room ac for which I ran for about 2 minutes. I only ran the dryer for a minute and the same for the washer. I did not run these at the same time. This generator handled them perfectly. After 10 minutes, I stopped the test.
I was really pleased with how this worked and with the peace of mind I'll have with backup power if the grid goes down. I only use non-ethanol gas, as ethanol contains water that can corrode the carb along with other parts. Besides, if ethanol gas sits too long, the water will separate out and sink, meaning that water will be the 1st thing through the hose when ya try to start it.
The shipping company R&L was great. They provided me with a shipping number and the driver helped me load it onto my cart. All in all, this was a great experience. Electric Generators Direct was great to order from and they had the cheapest price, which included delivery and lift gate service. This generator weighs 190lbs and produces 7500 surge watts and 6720 running watts, which should be more than enough power to run most homes. You can easily hook this up to your home using a Home Generator Interlock Kit.
VB Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, Exceeded Expectations, Quiet
Cons:
None
