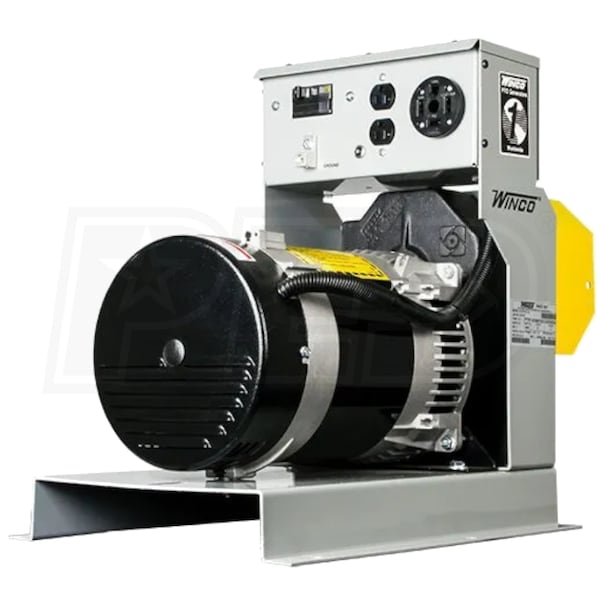

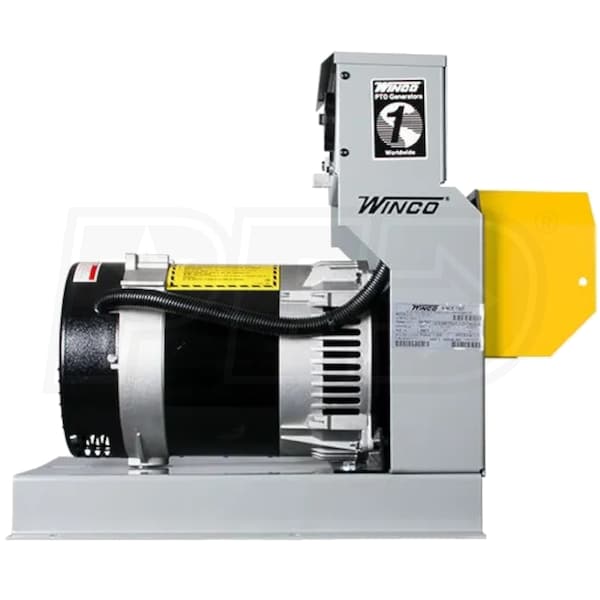

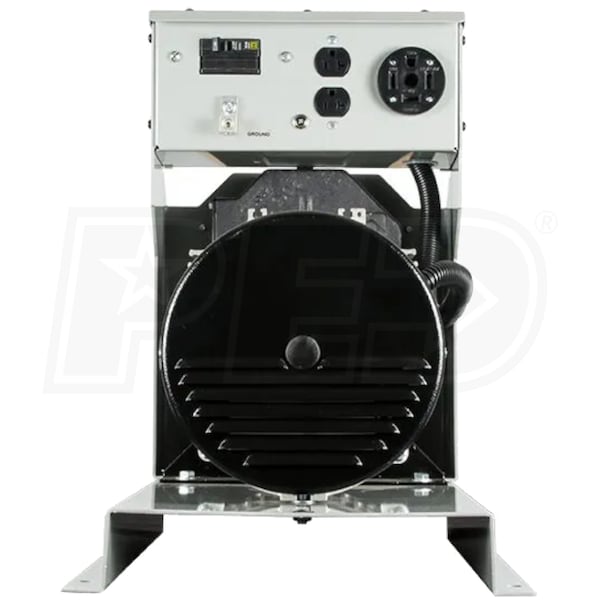

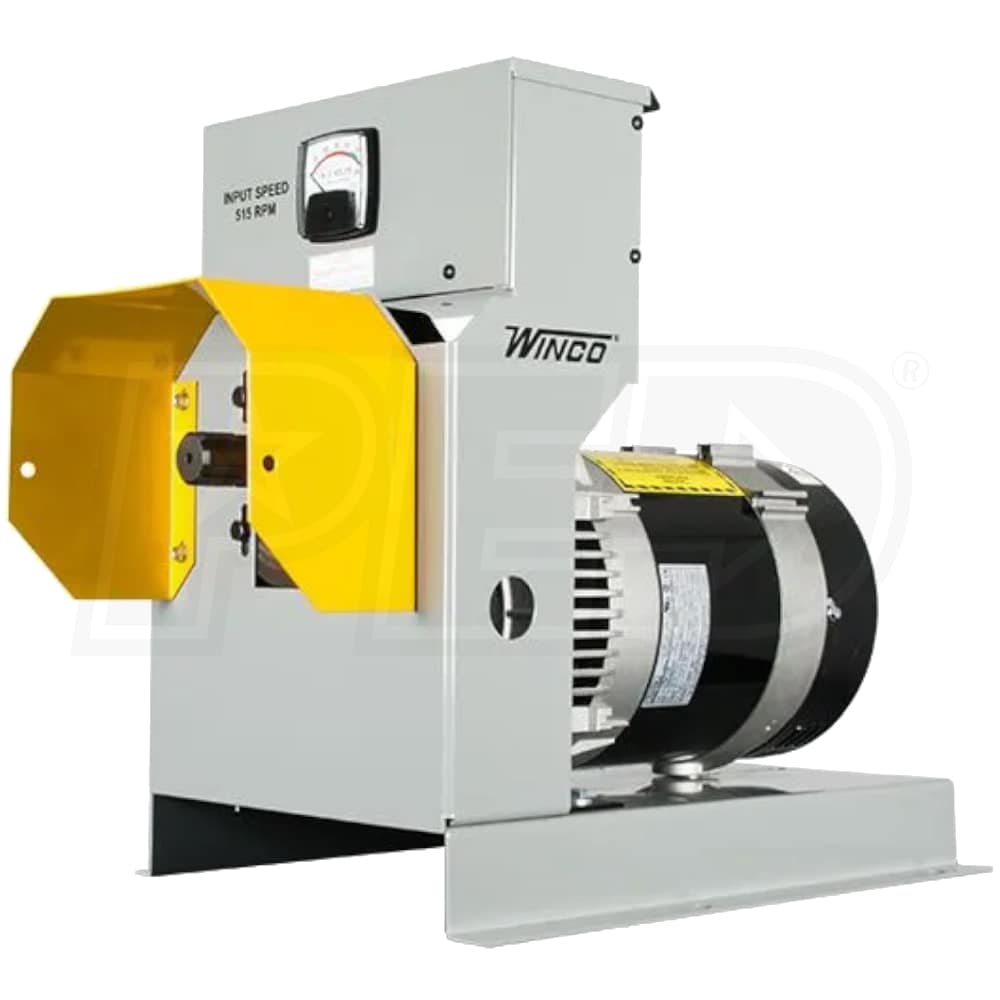

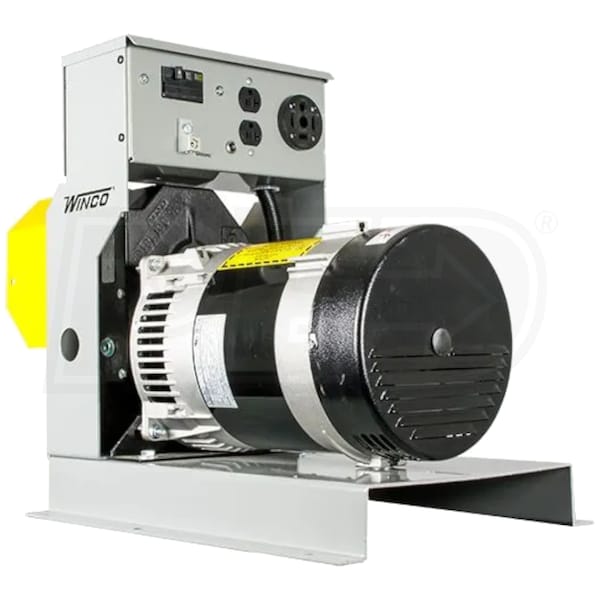

Winco W10PTOS - 10 kW Tractor-Driven PTO Generator (515/540 RPM)

Model:

99840-003

Write A Review
$2,226.40
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Thursday, Nov 14th
Shipping to60601

Winco W10PTOS - 10 kW Tractor-Driven PTO Generator (515/540 RPM)
Winco W10PTOS - 10 kW Tractor-Driven PTO Generator (515/540 RPM)
Model: 99840-003
$2,226.40
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

PTO

Run Watts

10,000 Rated Watts

Voltage

120/240 Single-Phase

  • Convert Your Tractor Into a Generator
  • Use your compact tractor engine to generate electricity
  • Requires 20-HP at the PTO to operate properly
  • Multiple Applications
  • Generate electricity to power tools on the farm or ranch
  • Backup your home, barn or buildings during a power outage
  • Brushless Alternator
  • Produces clean and safe electricity for sensitive electronics
  • Low harmonic content (<5%)
  • Mainline Circuit Breaker
  • Protects generator and appliances from overload
  • Large Voltmeter
  • Easily monitor your power usage right from your tractor seat
  • Cast Iron Gear Case
  • Rugged, high-quality material designed to weather the outdoors
  • 1-3/8" Six Spline
  • Connect tumbling bar (sold separately) between tractor and PTO
  • Mobility (Sold Separately)
  • Transport your PTO generator with a trailer or 3-point hitch
  • TDM76 - Trailer *Requires SA11310 tumbling bar (Sold Separately)
  • TPH250 - 3-Point hitch *Requires 300228 tumbling bar (Sold Separately)
  • Full power 60A plug ships with the generator
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer, and Ethylene glycol (ingested) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (Wall-Type)
NEMA 14-60R
99840-003
specs product image PID-12098
General Information
Product Category
Generator - PTO
Overview
Product Category
Generator - PTO
Weight
166 Pounds
Consumer Warranty
1 Year
Product Style
PTO Generator
Product Length
33 Inches
Product Width
19 Inches
Product Height
20.2 Inches
Additional Model Numbers

W10PTOS, 99840-003

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
No
Rated Watts
10000 Watts
Rated Amps
42 Amps
Voltage Meter
Yes
Tractors HP
20 HP
PTO RPMs
515 RPM
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 14-60R
1

Reviews

(16)
Winco 99840-003 Reviews & Ratings

Product Q&A

(2)
Expert avatar photo
Product Questions Answered by Jared, the Generator Expert
Will the W10PTOS work with my Kubota B2370 (rated for 17HP at rear PTO)?
Al
from New Jersey
December 18, 2016
With most 10kW and 15kW PTO driven generators driven at 540 RPM PTO and the Winco 10 and 15kW units driven at 515 RPM PTO, does that mean I could run my Kubota 38 h.p. at a lower RPM for the Winco to operate at full capacity or would my Kubota still have to still run at about the same RPM's as the 540 RPM PTO generators? What would be the difference in the rpm's between the two with my tractor for them to maintain the same load?
Jeff
from Georgia
December 09, 2013
