Features
Grade
Professional
Style
PTO
Run Watts
15,000 Rated Watts
Surge Watts
18,000
Starting Watts
- Convert Your Tractor Into a Generator
- Use your tractor engine to generate electricity
- Requires 30-HP at the PTO to operate properly (515 rpm)
- Multiple Applications
- Generate electricity to power tools on the farm or ranch
- Backup your home, barn or buildings during a power outage
- Brushless Alternator
- Produces clean and safe electricity for sensitive electronics
- Low harmonic content (<5%)
- Mainline Circuit Breaker
- Protects generator and appliances from overload
- Large Voltmeter
- Easily monitor your power usage right from your tractor seat
- Cast Iron Gear Case
- Rugged, high-quality material designed to weather the outdoors
- 1-3/8" Six Spline
- Connect tumbling bar (sold separately) between tractor and PTO
- Mobility (Sold Separately)
- Transport your PTO generator with a trailer or 3-point hitch
- TDM76 - Trailer *Requires SA11310 tumbling bar (Sold Separately)
- TPH250 - 3-Point hitch *Requires 300228 tumbling bar (Sold Separately)
- Full power 60A plug ships with the generator
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer, and Ethylene glycol (ingested) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
99840-004
General Information
Product Category
Generator - PTO
Overview
Product Category
Generator - PTO
Weight
255 Pounds
Consumer Warranty
1 Year
Product Style
PTO Generator
Product Length
33 Inches
Product Width
19 Inches
Product Height
20.2 Inches
Additional Model Numbers
W15PTOS, 99840-004
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
No
Rated Watts
15000 Watts
Surge Watts
18000 Watts
Rated Amps
63 Amps
Voltage Meter
Yes
Tractors HP
30 HP
PTO RPMs
515 RPM
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 14-60R
1
Reviews
(28)
Winco 99840-004 Reviews & Ratings
Product Q&A
(5)
Product Questions
Answered by Jared, the Generator Expert
How much wattage can the 60-amp outlet provide?
Robert
from Texas
January 29, 2021
What does auto voltage regulation mean?
David
from Utah
January 19, 2021
If the RPM speed determines the frequency, how do you know when you have the proper turning speed from the tractor?
Gary
from Ohio
June 06, 2018
I have a Kubota 2920 compact tractor with 29 HP overall and less at the PTO. Am I better off buying the 15kW and not maxing it out or buy a 10kW and have no HP issues but max the generator?
Todd
from North Carolina
March 07, 2014
With most 10kW and 15kW PTO driven generators driven at 540 RPM PTO and the Winco 10 and 15kW units driven at 515 RPM PTO, does that mean I could run my Kubota 38 h.p. at a lower RPM for the Winco to operate at full capacity or would my Kubota still have to still run at about the same RPM's as the 540 RPM PTO generators? What would be the difference in the rpm's between the two with my tractor for them to maintain the same load?
Jeff
from Georgia
December 09, 2013
How-To Articles
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

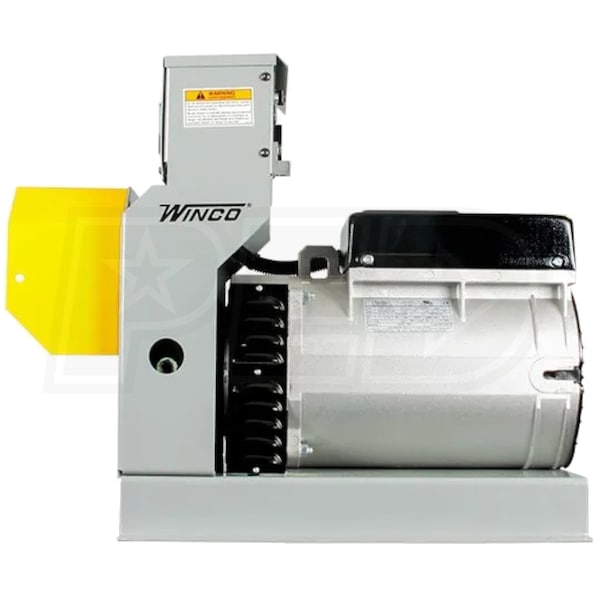

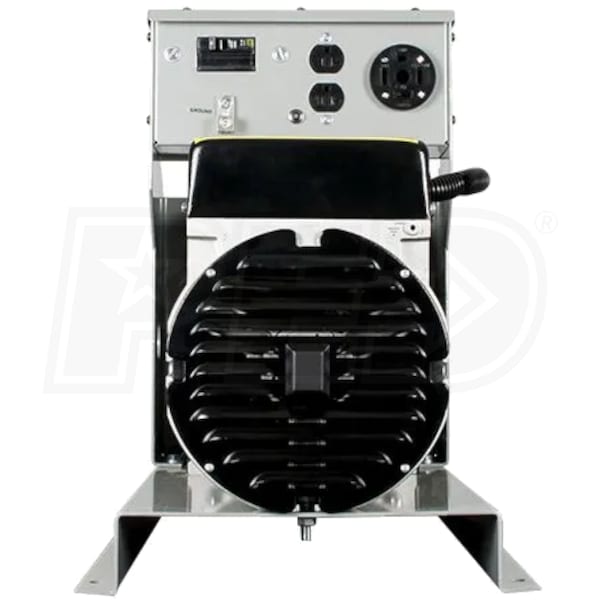

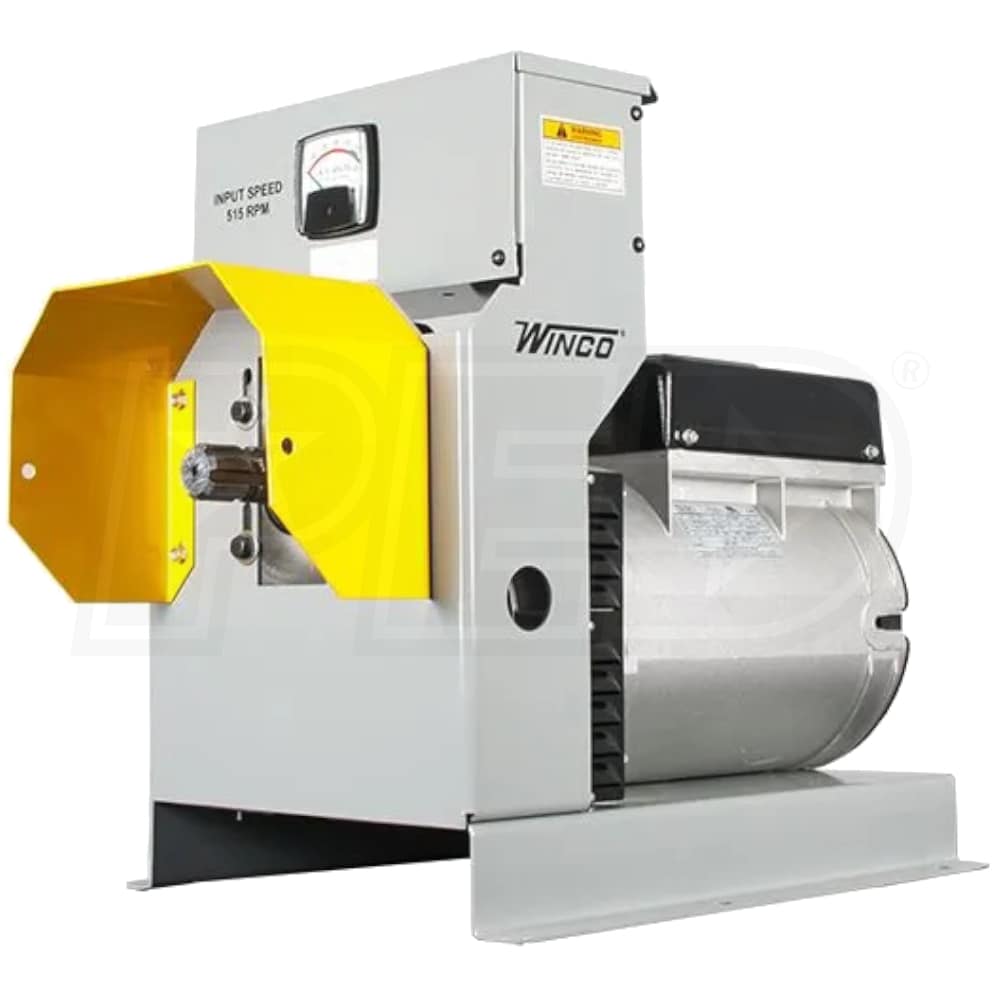

Winco W15PTOS - 15 kW Tractor-Driven PTO Generator (515/540 RPM)
