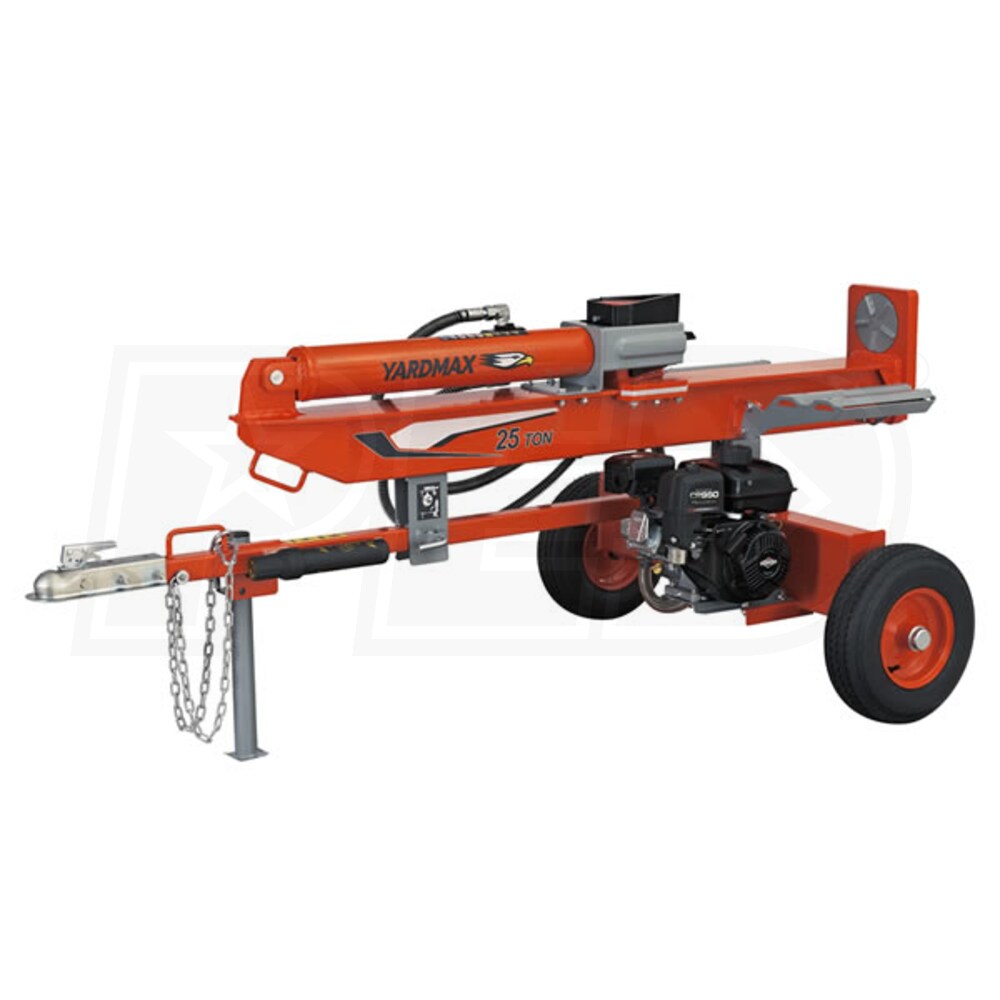

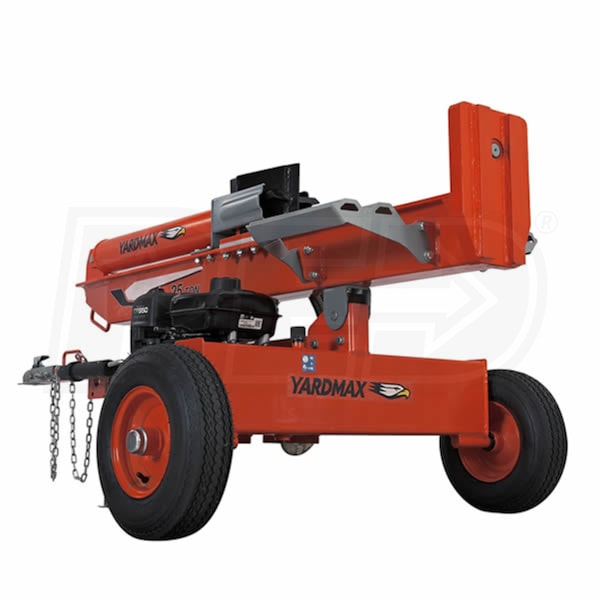

YARDMAX 25-Ton 208cc Horizontal / Vertical Gas Log Splitter (Scratch & Dent)

Model:

YU2566-SD

Write A Review
Product Discontinued
Sorry, this product is no longer available.
YARDMAX 25-Ton 208cc Horizontal / Vertical Gas Log Splitter (Scratch & Dent)
YARDMAX 25-Ton 208cc Horizontal / Vertical Gas Log Splitter (Scratch & Dent)
Model: YU2566-SD
Was $1,319.99
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • ***Scratch & Dent Model****
  • Minor scratches, scuff on carburetor & dent on gas
  • Cosmetic only and will not affect operation - Damaged packaging
  • 25-Ton Splitting Force
  • Built to perform in demanding applications
  • Vertical & Horizontal Splitting - For Logs Up To 26" in Length
  • Dual end cylinder support for equal weight distribution; cylinder handle makes it easy to position the splitter
  • 208cc Briggs & Stratton 4-Cycle Gas Engine
  • Reliable and easy-to-start with plenty of torque
  • U-Beam Structural Design
  • Patent pending design is significantly stronger than typical I-Beam designs for more durability & less stress over time
  • 14-GPM 2-Stage Hydraulic Pump
  • Over-sized design, provides a cycle time of just 9.7 seconds
  • 4.2-Gallon Hydraulic Reservoir
  • Built-into wheel shaft with internal filter for added protection
  • 7.5" 4-Way Splitting Wedge
  • Designed for quick connection and jam free operation with no need to change stripper plates
  • Unique Spinner-Plate
  • Puts less stress on the beam by allowing logs to turn when being split
  • Adjustable Log Cradle, 16" DOT Road Tires & Hitch
  • Keeps the logs when you want them, regardless of splitter position
  • 16" DOT-approved road tires to get from job to job; also includes 2" ball hitch for easy towing
California residents see
Warning: This product can expose you to chemicals including Gasoline engine exhaust (condensates/extracts) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

YU2566-SD
specs product image PID-79410
Engine
Engine Brand
Briggs & Stratton
Starting System
Recoil Start
CC
208 CCs
Idle Control
Yes
Low Oil Shutdown
Yes
Hydraulics
Auto Return
Yes
Hydraulic Filter
Yes
Hydraulic Oil Included
Yes
Hydraulic Reservoir Size
4.2 Gallons Gallons
Cylinder Diameter
4 Inches
Cycle Time
9.7 Seconds
Overview
Assembly Required
Yes
Weight
517 Pounds
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
90 Days
Wedge
Wedge Material
Steel
Wedge Size
7 Inches
Wedge Style
2 & 4-way
Replaceable Wedge
Yes
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
26 Inches
Towing
Towable
Yes
D.O.T. Lights
No
Fenders
No
Hitch Type
2 Inch Ball Hitch
Accessories
Jack Stands
Included
Log Cradles
Included
Wood Type Hardness Rating 6" Seasoned 6" Green 12" Seasoned 12" Green 24" Seasoned 24" Green
Alder 590 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Ash 1320 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Aspen 420 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Basswood 410 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Beech 1300 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Birch 1470 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Boxelder 720 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Buckeye 350 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Catalpa 550 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Cedar 900 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cherry 950 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cottonwood 430 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Dogwood 2150 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Elm 1540 Lbs. 10+ Tons 13+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Fir 710 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Hickory 1820 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Locust 1700 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Magnolia 1020 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Maple 1450 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Oak 1620 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Pine 860 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Poplar 540 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Spruce 510 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Sweet Gum 850 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Walnut 1010 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
