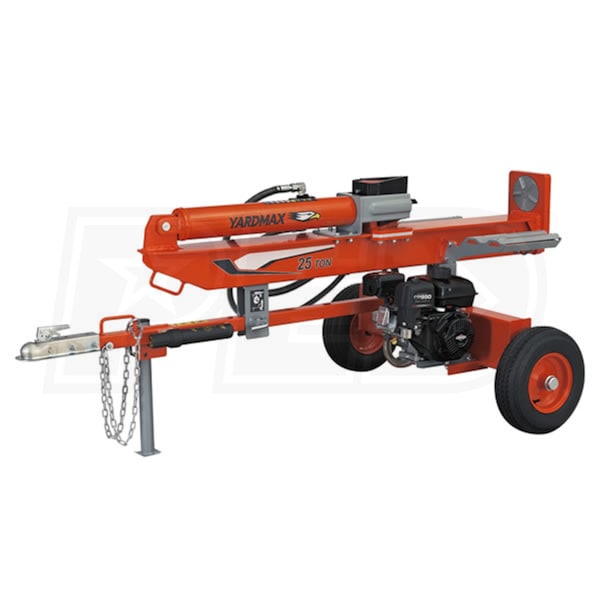

YARDMAX 25-Ton 208cc Horizontal / Vertical Gas Log Splitter w/ Briggs & Stratton 208cc Engine

Name: YARDMAX 25-Ton 208cc Horizontal / Vertical Gas Log Splitter w/ Briggs & Stratton 208cc Engine
Brand: YardMax
SKU: 68195

Model:

YU2566

Write A Review

Product Discontinued

Sorry, this product is no longer available.

YARDMAX 25-Ton 208cc Horizontal / Vertical Gas Log Splitter w/ Briggs & Stratton 208cc Engine

Model: YU2566

Product Discontinued

Features

Specifications

Reviews

How-To Articles

Manuals

25-Ton Splitting Force
Built to perform in demanding applications
Vertical & Horizontal Splitting - For Logs Up To 26" in Length
Dual end cylinder support for equal weight distribution
Cylinder handle makes it easy to position the splitter
208cc Briggs & Stratton 4-Cycle Gas Engine
Reliable and easy-to-start with plenty of torque
U-Beam Structural Design
Provides more durability and less stress over time
Patent pending design is significantly stronger than typical I-Beam designs
Unique spinner-plate turns log while being split and puts less stress on beam
14-GPM 2-Stage Hydraulic Pump
Large 4.2-Gallon hydraulic reservoir
Built-into wheel shaft with internal filter for added protection
Over-sized design, provides a cycle time of just 9.7 seconds
7.5" 2-Way Splitting Wedge
Adjustable log splitter keeps logs from falling off after being split
Designed for quick connection and jam free operation; No need to change stripper plates
16" DOT-Approved Road Tires
Also includes 2" Ball Hitch for easy towing
YARDMAX 3-2-1 Residential Warranty
Know you're protected so you can concentrate on splitting
4-Way Wedge IS NO LONGER Included With YARDMAX® Gas Log Splitters

California residents see

Warning: This product can expose you to chemicals including Gasoline engine exhaust (condensates/extracts) which is known to the State of California to cause Cancer.

For more information go to: www.p65Warnings.ca.gov

Specifications

YU2566

General Information

Product Category

Log Splitter

Engine

Engine Brand

Briggs & Stratton

Starting System

Recoil Start

208 CCs

Low Oil Shutdown

Yes

Consumer Engine Warranty

2 Years

Hydraulics

Auto Return

Yes

Hydraulic Filter

Yes

Hydraulic Oil Included

Yes

Hydraulic Reservoir Size

4.2 Gallons Gallons

Cylinder Diameter

4 Inches

Cycle Time

9.7 Seconds

Tonnage

25 Tons

Overview

Product Category

Log Splitter

Assembly Required

Yes

Weight

517 Pounds

Consumer Warranty

3 Years

Commercial Warranty

90 Days

Product Length

100 Inches

Product Width

48 Inches

Product Height

37 Inches

Power Type

Gas

UPC

857649006227

Wedge

Wedge Material

Steel

Wedge Size

7 Inches

Wedge Style

2-way

Replaceable Wedge

Yes

Sharpenable Wedge

Yes

Log Capacity

Max Log Length

26 Inches

Towing

Towable

Yes

D.O.T. Lights

Fenders

Hitch Type

2 Inch Ball Hitch

Accessories

Jack Stands

Included

Log Cradles

Included

Wood Type	Hardness Rating	6" Seasoned	6" Green	12" Seasoned	12" Green	24" Seasoned	24" Green
Alder	590 Lbs.	4+ Tons	6+ Tons	7+ Tons	9+ Tons	27+ Tons	30+ Tons
Ash	1320 Lbs.	7+ Tons	9+ Tons	16+ Tons	22+ Tons	30+ Tons	35+ Tons
Aspen	420 Lbs.	4+ Tons	6+ Tons	7+ Tons	9+ Tons	27+ Tons	30+ Tons
Basswood	410 Lbs.	4+ Tons	6+ Tons	7+ Tons	9+ Tons	27+ Tons	30+ Tons
Beech	1300 Lbs.	7+ Tons	9+ Tons	16+ Tons	22+ Tons	30+ Tons	35+ Tons
Birch	1470 Lbs.	7+ Tons	9+ Tons	16+ Tons	22+ Tons	30+ Tons	35+ Tons
Boxelder	720 Lbs.	6+ Tons	8+ Tons	10+ Tons	13+ Tons	27+ Tons	30+ Tons
Buckeye	350 Lbs.	4+ Tons	6+ Tons	7+ Tons	9+ Tons	27+ Tons	30+ Tons
Catalpa	550 Lbs.	4+ Tons	6+ Tons	7+ Tons	9+ Tons	27+ Tons	30+ Tons
Cedar	900 Lbs.	6+ Tons	8+ Tons	15+ Tons	20+ Tons	27+ Tons	30+ Tons
Cherry	950 Lbs.	6+ Tons	8+ Tons	15+ Tons	20+ Tons	27+ Tons	30+ Tons
Cottonwood	430 Lbs.	4+ Tons	6+ Tons	7+ Tons	9+ Tons	27+ Tons	30+ Tons
Dogwood	2150 Lbs.	10+ Tons	13+ Tons	22+ Tons	27+ Tons	30+ Tons	35+ Tons
Elm	1540 Lbs.	10+ Tons	13+ Tons	16+ Tons	22+ Tons	30+ Tons	35+ Tons
Fir	710 Lbs.	6+ Tons	8+ Tons	10+ Tons	13+ Tons	27+ Tons	30+ Tons
Hickory	1820 Lbs.	10+ Tons	13+ Tons	22+ Tons	27+ Tons	30+ Tons	35+ Tons
Locust	1700 Lbs.	10+ Tons	13+ Tons	22+ Tons	27+ Tons	30+ Tons	35+ Tons
Magnolia	1020 Lbs.	7+ Tons	9+ Tons	16+ Tons	22+ Tons	30+ Tons	35+ Tons
Maple	1450 Lbs.	7+ Tons	9+ Tons	16+ Tons	22+ Tons	30+ Tons	35+ Tons
Oak	1620 Lbs.	10+ Tons	13+ Tons	22+ Tons	27+ Tons	30+ Tons	35+ Tons
Pine	860 Lbs.	6+ Tons	8+ Tons	10+ Tons	13+ Tons	27+ Tons	30+ Tons
Poplar	540 Lbs.	4+ Tons	6+ Tons	7+ Tons	9+ Tons	27+ Tons	30+ Tons
Spruce	510 Lbs.	4+ Tons	6+ Tons	7+ Tons	9+ Tons	27+ Tons	30+ Tons
Sweet Gum	850 Lbs.	6+ Tons	8+ Tons	10+ Tons	13+ Tons	27+ Tons	30+ Tons
Walnut	1010 Lbs.	7+ Tons	9+ Tons	16+ Tons	22+ Tons	30+ Tons	35+ Tons
